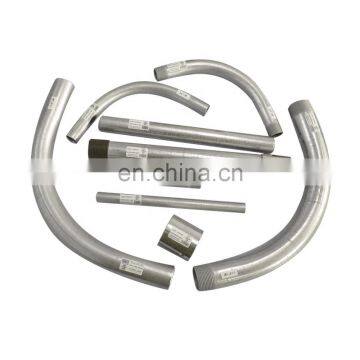

RIGID ALUMINUM CONDUIT ELBOWS / BENDS
Rigid aluminum conduit elbow is manufactured from prime rigid aluminum conduit shell with high-strength in accordance with the latest specifications and standard of ANSI C80.5(UL6A).

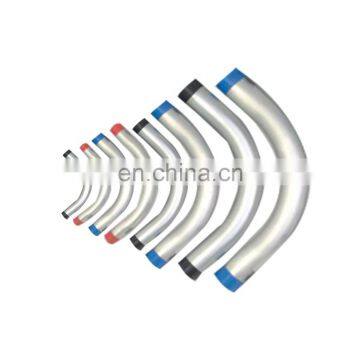

Elbows are produced in normal trade sizes from 1/2” to 6”, the degrees including 90 deg, 60 deg,45 deg, 30 deg, 22.5deg,15deg or according to customer’s request.

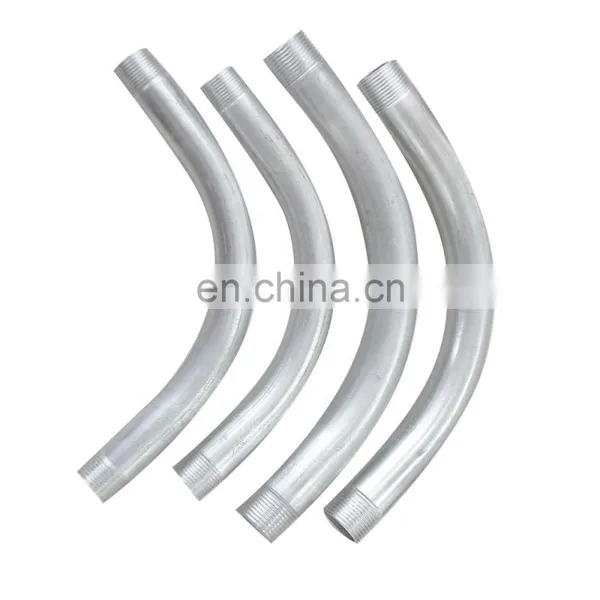

Elbows are threaded on both ends,a thread protector with industry color-coded by sizes from 3” to 6” applied.
The elbows are used to connect the rigid aluminum conduit to change the way of the conduit.
Detailed Product Description
- Standard: UL6A & ANSI C80.5
- Certificates: UL Listed, certificate No.E480839
- Trade Size: From 1/2” to 6”
90 deg/ 45 deg/ 30 deg/ 22.5 deg /15deg
- Both ends:Threaded (NPT) both ends with plastic caps
- Usage:For rigid aluminum conduit connection
- Material:Aluminum alloy
- Package: Carton
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T
Dimension and Weight Chart (90DEG ELBOW)
| SIZE | Mini.UL Radius "A" | Weight per 100PCS | PCS/ Carton | Weight/ Carton | |||
| mm | in. | KG | LBS | KG | LBS | ||
| 1/2" | 102 | 4.016 | 10.0 | 22 | 50 | 5.00 | 11 |
| 3/4" | 114 | 4.488 | 15.7 | 35 | 50 | 7.85 | 17 |
| 1" | 146 | 5.748 | 27.7 | 61 | 20 | 5.54 | 12 |
| 1-1/4" | 184 | 7.244 | 44.6 | 98 | 20 | 8.92 | 20 |
| 1-1/2" | 210 | 8.268 | 63.0 | 139 | 10 | 6.30 | 14 |
| 2" | 241 | 9.488 | 95.8 | 211 | 10 | 9.58 | 21 |
| 2-1/2" | 267 | 10.512 | 177.4 | 391 | 50 | 88.70 | 196 |
| 3" | 330 | 12.992 | 278.7 | 614 | 35 | 97.55 | 215 |
| 3-1/2" | 381 | 15.000 | 385.4 | 850 | 35 | 134.89 | 297 |
| 4" | 406 | 15.984 | 484.7 | 1069 | 25 | 121.18 | 267 |
| 5" | 610 | 24.016 | 1030.8 | 2272 | BULK | ||
| 6" | 762 | 30.000 | 1664.2 | 3669 | BULK | ||
REMARK: Elbows with special radius or special degree available upon request.
