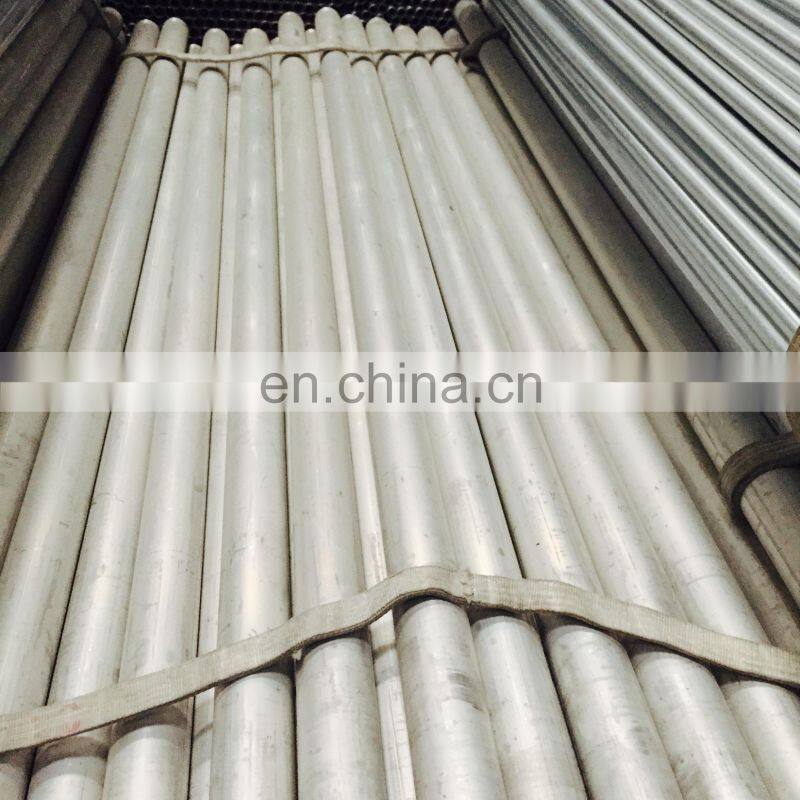

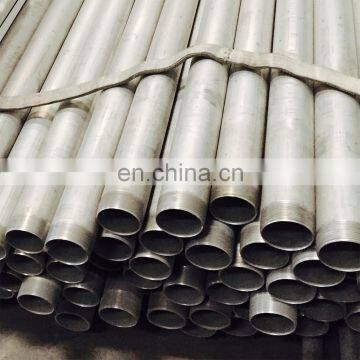

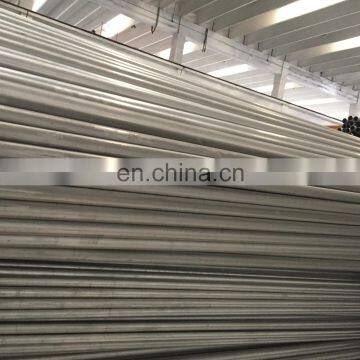

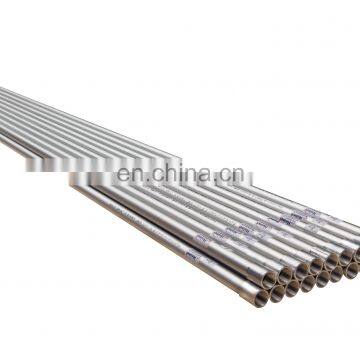

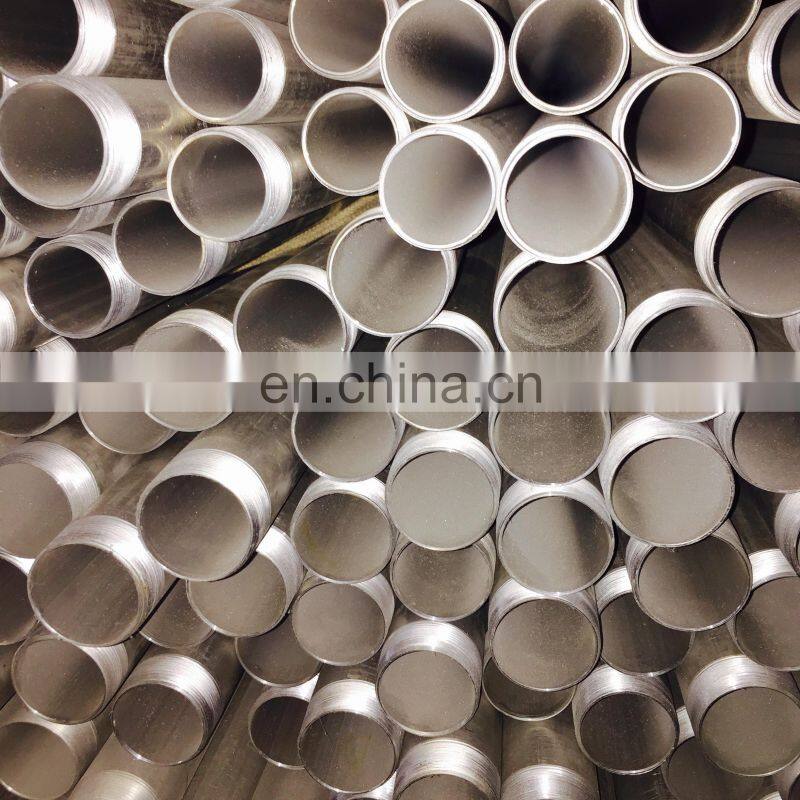

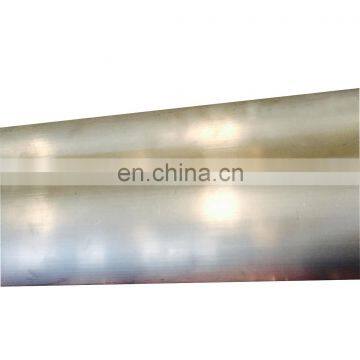

East Conduit Electrical Rigid Aluminum Conduit is manufactured with high-strength aluminum alloy, that ensures strength and corrosion resistance, so Rigid Aluminum Conduit provides light weight, excellent mechanical protection at dry, wet, exposed, concealed or hazardous location for wiring works. The lightweight design allows for easy installation, saving your time and money.
Consistent Quality- We manufacture for long life; it is durable, strong, and suitable for bending. The conduit is produced to ensure quality standards are met strictly. The product is easy to cut, bend and join on the job.
Lightweight and Excellent Corrosion Resistance-The Rigid Aluminum Conduit provides lightweight for easy to install and excellent corrosion resistant properties resists most corrosive atmospheres and industrial environments.
Lower Life-cycle costs- East conduit resists cracking, flaking, impact, and damage from severe bending. Nonsparking and nonmagnetic. lts physical and mechanical properties ensure that the pipe has an extended life cycle, which is great usage or storage without trouble in quality.
Green and sustainable- Rigid Aluminum Conduit contains recycled aluminum. It can be almost totally recycled at the end of its life.
| Trade Size |
Nominal Wt. per 100Ft (30.5M) |
Nominal Outside Diameter | Nominal Wall Thickness | ||||
| U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
| 1/2" | 16 | 28.1 | 12.75 | 0.840 | 21.34 | 0.104 | 2.64 |
| 3/4" | 21 | 37.4 | 16.96 | 1.050 | 26.67 | 0.107 | 2.72 |
| 1" | 27 | 54.5 | 24.72 | 1.315 | 33.40 | 0.126 | 3.20 |
| 1-1/4" | 35 | 71.6 | 32.48 | 1.660 | 42.16 | 0.133 | 3.38 |
| 1-1/2" | 41 | 88.7 | 40.23 | 1.900 | 48.26 | 0.138 | 3.51 |
| 2" | 53 | 118.5 | 53.75 | 2.375 | 60.33 | 0.146 | 3.71 |
| 2-1/2" | 63 | 187.5 | 85.05 | 2.875 | 73.03 | 0.193 | 4.90 |
| 3" | 78 | 246.3 | 111.72 | 3.500 | 88.90 | 0.205 | 5.21 |
| 3-1/2" | 91 | 295.6 | 134.08 | 4.000 | 101.60 | 0.215 | 5.46 |
| 4" | 103 | 350.2 | 158.85 | 4.500 | 114.30 | 0.225 | 5.72 |
| 5” | 129 | 478.9 | 217.23 | 5.563 | 141.30 | 0.245 | 6.22 |
| 6" | 155 | 630.4 | 285.95 | 6.625 | 168.28 | 0.266 | 6.76 |
- Length: 10Ft (3.05m) + 1/4" (6mm)
- Outside Diameter: 1/2"~ 1-1/2" + 0.005"(+0.38mm); 2"~6" + 1%

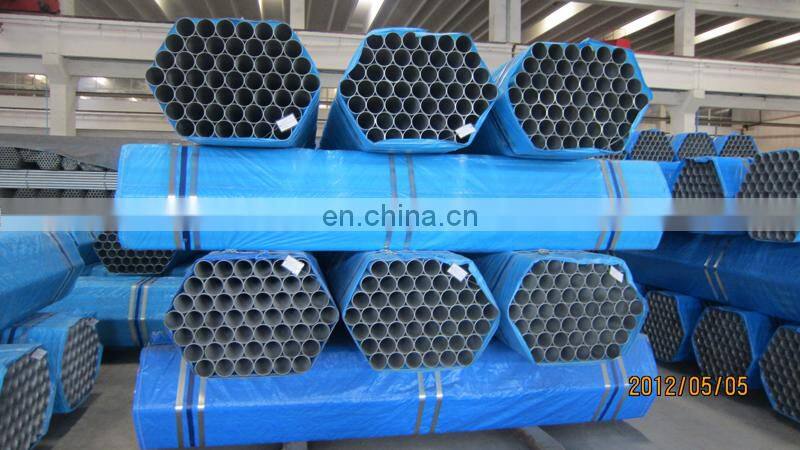

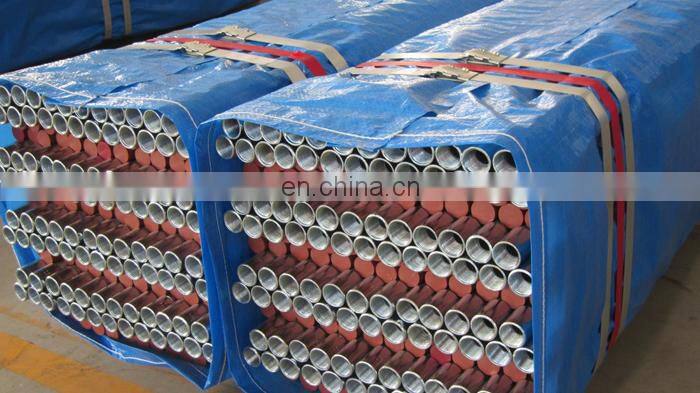

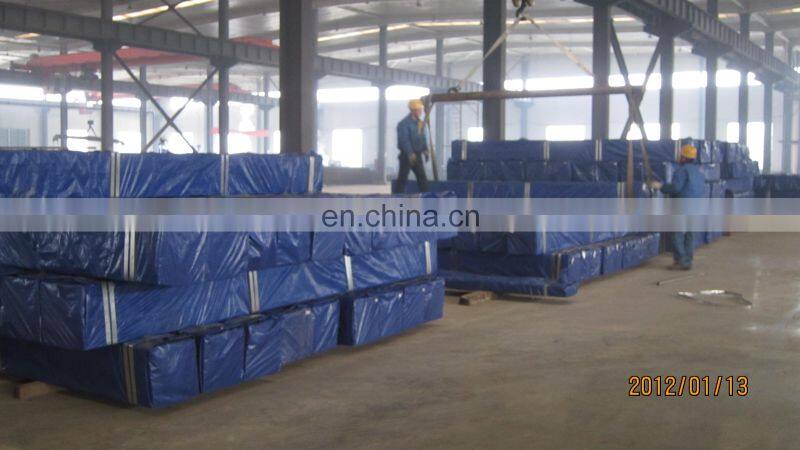

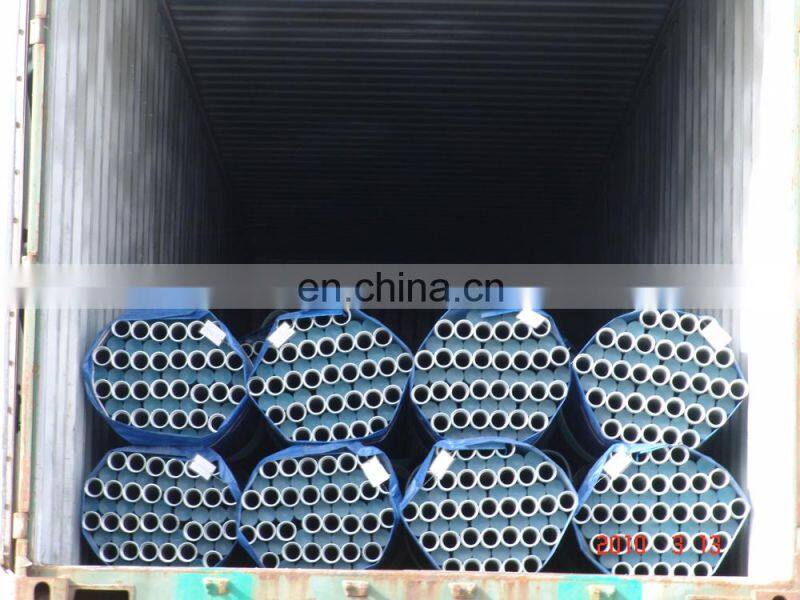

- We usually use container for marine transportation, and the conduits coverd with pvc paper then tied with steel straps.
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C.
If you have any questions, please feel free to contact us, we will give you reply as soon as possible and provide the best service for you.

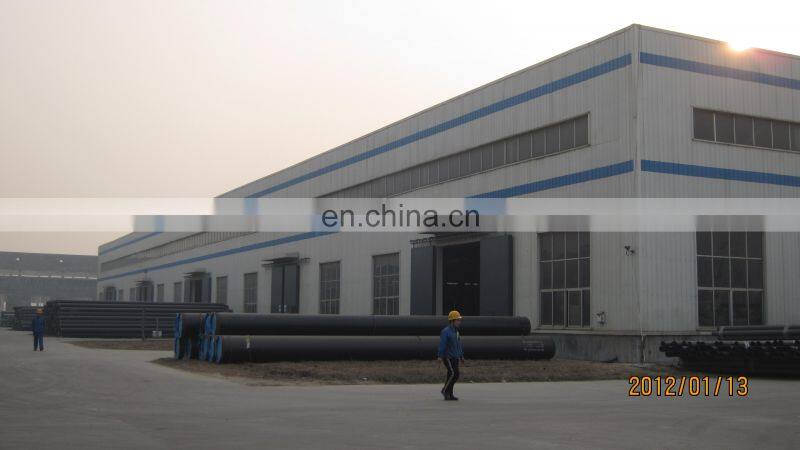

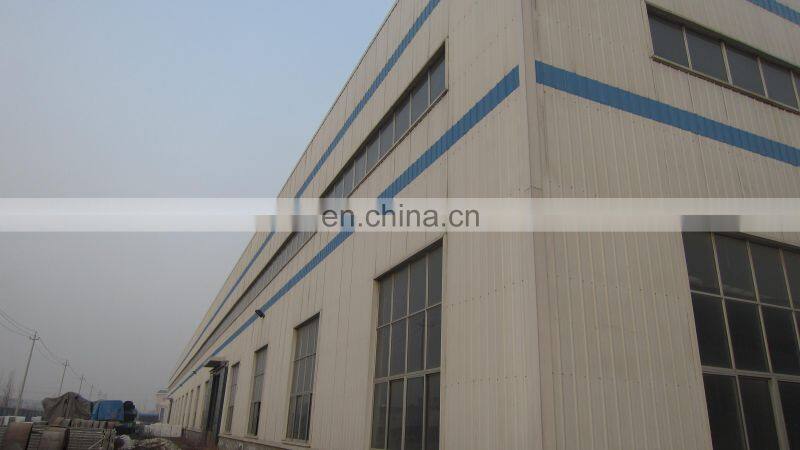

Weifang East Steel Pipe Co.,Ltd, which occupies about 254,000 square meters, has a total capital of USD80 million and annual comprehensive output of 200,000 tons. Now it owns 800 employees, including 300 senior/intermediate engineers and professional technicians.
Now our electrical products include Rigid Steel Conduit ,Rigid Aluminum Conduit, IMC Conduit, EMT Conduit and Conduit fittings such as elbow, nipple, coupling, etc., and our products have been exported to more than 51 countries in the world, including North America, Middle America, South America, Asia, Middle East, Europe, etc. We are always appreciated by our clients for good quality and excellent services.
Fast Facts About Weifang East Steel Pipe Co.,Ltd.
- The largest rigid steel conduit producer in China
- The only producer of Hot Dip Galvanized EMT conduit in the world.
- The professional manufacturer of conduit accessories in China
Q1. Are you a manufacturer or trading company?
Q2.Can you provide free sample for our test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. You only need to bear the freight and the sample will be sent out within 7 days.
Q3. Do you have any MOQ limit for production?
A: We don’t have any MOQ limit. But as for our steel pipe product, we usually use container transport for lower freight. In the case of express delivery, high freight charges will be generated.
Q4. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q5. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How to deal with the faulty?
A: We sincerely welcome you to investigate our factory and inspect the goods. Our products are produced in strict quality control system and the defective rate is low.
Also, if you have any questions or dissatisfaction, please feel free to contact us. We will serve you as soon as possible and give you a satisfactory solution.
