Home > Construction & Decoration > Construction Pipe & Tube > Aluminum Tube & Pipe > Anodized Color Aluminium Tube Manufacturer From China With ISO, BV and RoHS

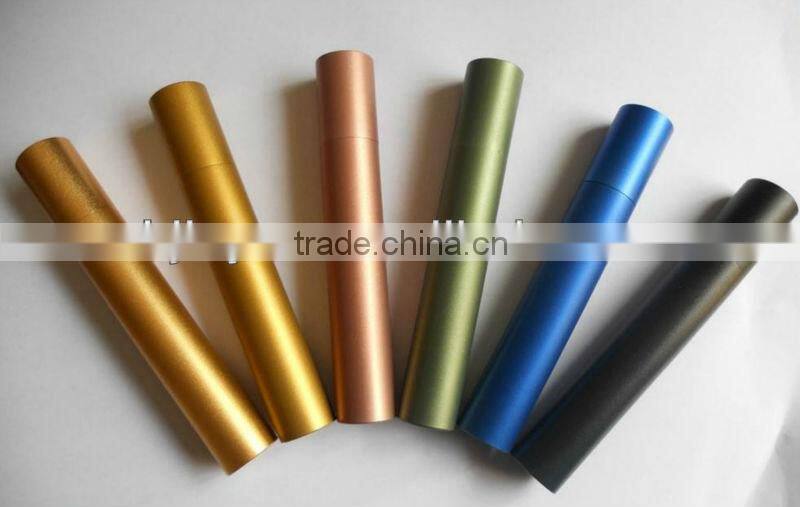

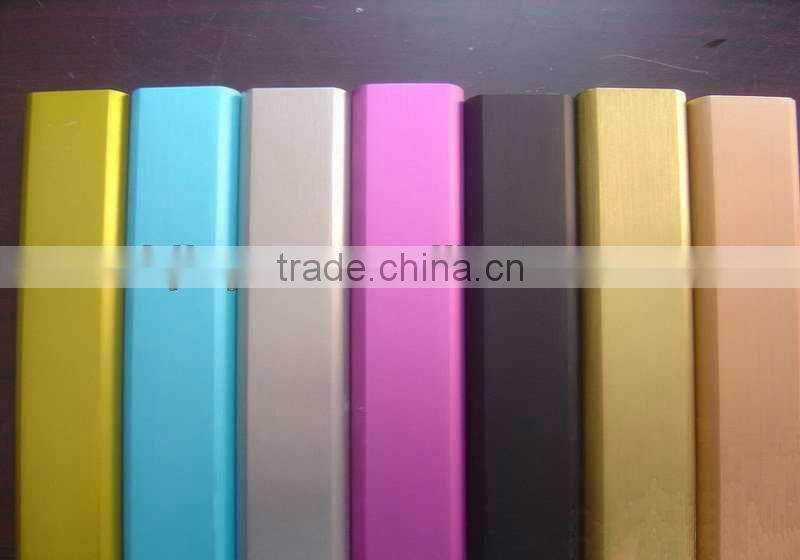

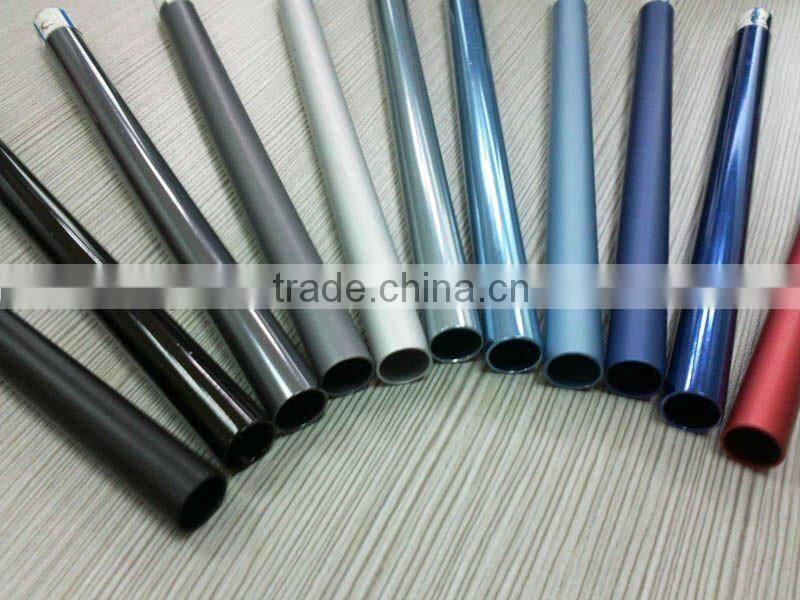

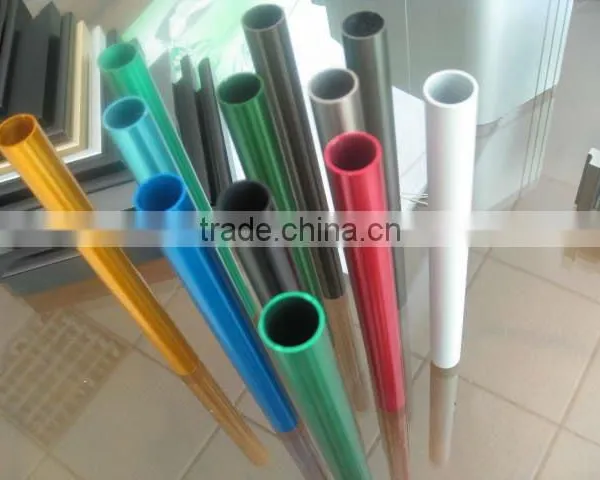

Anodized Color Aluminium Tube Manufacturer From China With ISO, BV and RoHS

Name: Anodized Color Aluminium Tube Manufacturer From China With ISO, BV and RoHS
Brand: JY- aluminium tube
SKU: 106067659
Availability: InStock

Anodized Color Aluminium Tube Manufacturer From China With ISO, BV and RoHS thumbnail-1

Anodized Color Aluminium Tube Manufacturer From China With ISO, BV and RoHS photo-1

US$ 2.09 - 3.19 MOQ: 1 Ton

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Grade:

6000 Series

Shape:

Other, Oval, round, square

Contact Supplier Request Quote Chat Now

Shanghai Jiayun Aluminium Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Grade 6000 Series

Shape Other, Oval, round, square

Surface Treatment Other, Mii finished, anodized, powder coated, etc, according to your requirem

Outer Diameter Max 250mm

Length <13m

Thickness Min 0.7mm

Usage Construction, decoration, various industrial field

Hardness 8-10HB

Alloy Or Not Is Alloy

Temper T3 - T8

Al (Min) 98%

Wall Thickness >0.8mm

Model Number JY AT-700

Brand Name JY- aluminium tube

Specifications

color aluminium tube
1, Shape: round, oval, square, etc
2, Anodized, sandblasting, tapping
3, Any colour is available.

Color aluminium tube

Product Description

Features of our product

Items	Features
Materials	6005, 6060, 6061, 6063
Temper	T3-T8
Style and size	Customized, as per your drawings
Deep processing	Precision cutting, drillin g, riveting, assembly, etc.
Surface treatment	Customized, such as silver anodizing, wooden transfer, sandblasting
Color	Any color is available, just bring your color samples
Quality	High corrosion resistance, high weather resistance and excellent wear resistance
Price	our price is most competitive due to our cheaper raw material
Certificates	ISO9001-2008 Quality System and ISO14001-2004 Environment System
Standard of Quality	According to the standard of China“GB/T5237-2000”, “GB/T6892-2006High Degree Standard”
Widely usage	Widely used in construction, decoration and varied industry fields
Annual output	50,000 metric tons aluminum extrusion each year.
Packaging	inner pack:wrapped with Ep film; external pack:rolled etc is ok, we also can print your logo, address, prby kraft paper or packaged by plastic film. other request like paper box, carton, wooden box, iron pallet, oducts' specification on the paper box, but you have to charge extra fee. Customized is warmly welcome.
Delivery time	10 to 15 days, according your order quantity

Product material mainly chemical composition

Material	Chemical Components (mass fraction/%)
	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others		Al
	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Single	Total	Al
6005	0.6~0.9	0.35	0.1	0.1	0.4~0.6	0.1	0.1	0.1	0.05	0.15	Rest
6060	0.3~0.6	0.1~0.3	0.1	0.1	0.35~0.6	0.05	0.15	0.1	0.05	0.15	Rest
6061	0.4~0.8	0.7	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Rest
6063	0.2~0.6	0.35	0.1	0.1	0.45~0.9	0.1	0.1	0.1	0.05	0.15	Rest

Property of product:

Alloy	mechanical behavior
	Temper	Tensile σb/Mpa	Yield strength σ0.2/Mpa	Elongation /%		Hardness HB
				Diameter of 1.6 mm sample	Diameter of 13 mm sample
6063	T5	160	110	8		60
	T6	241	214	12		73

Product shows

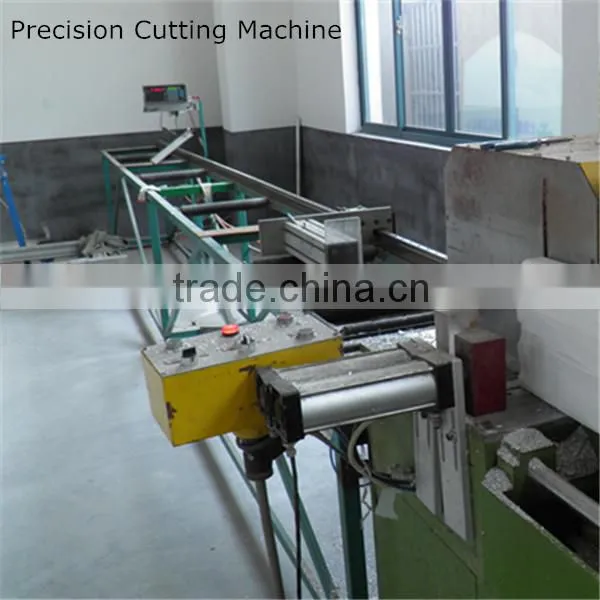

Our production processing lines as following:

5 sets of Same Level Hot Top Aluminum Bar Production lines,

18 sets of Aluminum Profile Hot Extrusion Production lines,

2 sets of Oxygenation Production Lines,

1 set of Bright Oxygenation Production Line,

2 sets of Electrophoresis Production Lines,

4 sets of German Wangner Tunnel Static powder Spray Painting Lines

(1 set of 13 meters production line),

2 sets of Italian Fireproof Imitation Wood Grain and Environmental

Protection Energy Saving Thermal Insulation Cold-Bridge Production lines,

3 sets of CNC machine,

1 set of milling machine

1 set of polish machine,

1 set of rivet machine,

3 sets of automatic cutting machine,

5 sets of punch machine,

5 sets of drilling machine

Our client's

Our Services

1.Delivery time: adjusted according to the amount and the complex rate of the production, usually

10-15 days, sometime as fast as 3 days.

2.Exporting packing: We have very rich experience on export packaging. Well offer different kinds of packaging according to customers’ different requests, in order to provide very effective protection for product. If you have any extra request

upon packaging, just contact us in advance.

3.About mould fee: We can develop new mould for our customers. If customers can consume a certain amount of our

product within certain time limit(usually a year), well return a corresponding number of mould fee. Besides, if you can consume more, the mould will be free.

If you are interested in any of our product, please do not hesitate to contact us, we will provide you excellent products, competitive price and top services.
