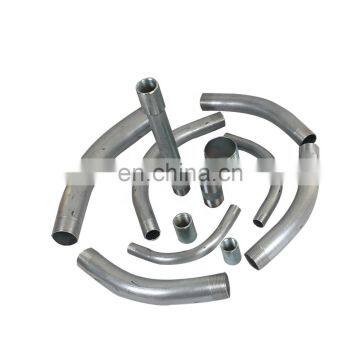

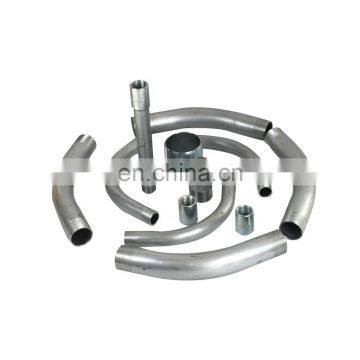

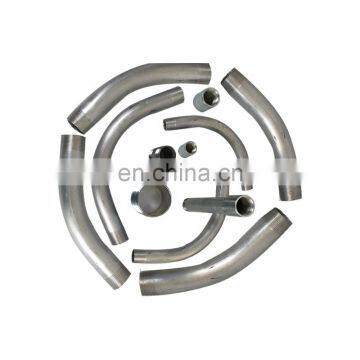

Pipe Fitting 22.5 Degree Elbow Galvanized IMC Conduit Bends

    IMC elbow is manufactured from prime conduit shell with high-strength in accordance with the latest specifications and standard of ANSI C80.6(UL1242).

    The interior and exterior surfaces of elbows are free from defect with a smooth welded seam, and are thoroughly and evenly coated with zinc using hot dip galvanizing process, so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of elbows adopt the clear post-galvanizing coating to provide further protection against corrosion.

    Elbows are produced in normal trade sizes from 1/2” to 4”, the degrees including 90 deg, 60 deg ,45 deg, 30 deg,22.5deg,15deg or according to customer’s request .

Elbows are threaded on both ends,a thread protector with industry color-coded by sizes  from 3” to 4” applied.

    The elbows are used to connect the IMC conduit to change the way of the conduit.

Detailed Product Description

• Standard: UL1242 & ANSI C80.6
• Certificates: UL Listed, certificate No.E499791
• Trade Size: From 1/2” to 4”

                              90 deg/ 45 deg/ 30 deg/ 22.5 deg /15deg

• Both ends:Threaded (NPT) both ends with plastic caps
• Usage:For IMC Conduit connection
• Surface Finished: Hot dip galvanized(HDG).
• Material: Carbon steel coil
• Package:  Carton
• Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
• Payment Term: L/C at sight or T/T

Dimension and Weight Chart (90DEG ELBOW)
