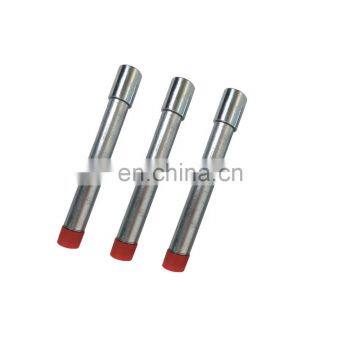

UL1242 listed IMC conduit

    East Conduit IMC conduit is manufactured with high-strength steel, and produced by the electric resistance welding process according to the standard of ANSI C80.6, UL1242.

    East Conduit IMC conduit is zinc coated both inside and outside, the clear post-galvanizing coating to provide further protection against corrosion, so it offers corrosion protection for installation in dry, wet, exposed, concealed or hazardous location.

    East Conduit IMC Conduit is produced in normal trade sizes from 1/2" to 4" in standard lengths of 10feet (3.05m). Both ends threaded according to the standard of ANSI/ASME B1.20.1, coupling supplied on one end, color-coded thread protector on the other end for quick identification of the conduit size.

Detailed Product Description

• Standard: UL1242 & ANSI C80.6
• Certificates: UL Listed, certificate No.E499791
• Trade Size: From 1/2” to 4”
• Both ends:Threaded both ends with one coupling and plastic cap
• Length:3050mm or according to customer’s requirement
• Usage:Through the electrical wires with the purpose of protection for the electrical raceway system
• Surface Finished: Hot dip galvanized(HDG).
• Material: Carbon steel coil

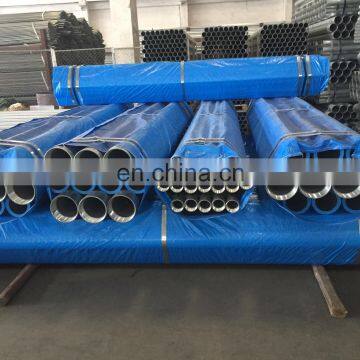

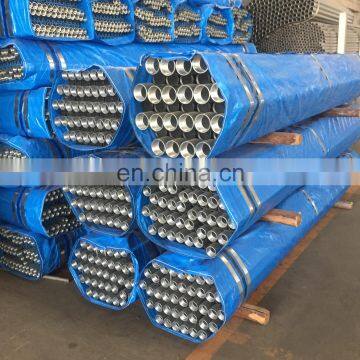

• Package:  The conduits cover with PVC paper then tied with steel straps
• Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
• Payment Term: L/C at sight or T/T

Dimension and Weight Chart

Applicable Tolerances:

Length: 10Ft (3.05m) ± ¼” (±6mm).

Specifications:

• American National Standards Institute (ANSI®)
• American National Standard for Rigid Steel Tubing (ANSI® C80.6)
• Underwriters Laboratories Standard for Rigid Steel Tubing (UL1242)
• National Electric Code® 250.118(3)
