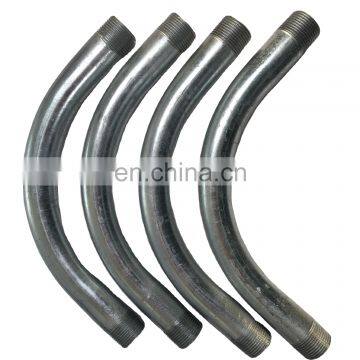

Electrical Conduit Elbows Imc 90 Degree Elbow
- qingdao tianjin shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Secondary Or Not | Non-secondary |
Product Description
1.Product Name: electrical conduit elbows imc 90 degree elbow
2.Standard: UL6/ ANSI C80.1
3.Tade Size : from 1/2” to 4”
90 deg/ 60deg/ 45 deg/ 30 deg/ 22.5deg/ 15deg
4.Both ends: threaded both ends with plastic caps
5.Usage: for IMC conduit connection
6.Surface finished: Hot dip galvanized(HDG).
7.Material : carbon steel coil
8.Package: carton
9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
10.Payment Term: L/C at sight or T/T
Dimension Chart
Pipe Size(in) | Minimum Centerline Radius | UNBENT LENGHTS | STANDARD CARTON PCS |
1/2" | 4" | 2-7/8" | 50 |
3/4" | 4-1/2" | 2-7/8" | 50 |
1" | 5-3/4" | 3-1/2" | 20 |
1-1/4" | 7-1/4" | 3-1/4" | 20 |
1-1/2" | 8-1/4" | 3-5/8" | 10 |
2" | 9-1/2" | 4-1/2" | 10 |
2-1/2" | 10-1/2" | 5-1/2" | 100 |
3" | 13" | 6-1/8" | 50 |
3-1/2" | 15" | 7-1/8" | 35 |
4" | 16" | 7-1/8" | 25 |
REMARK:Elbows special threading or special radius available upon request
