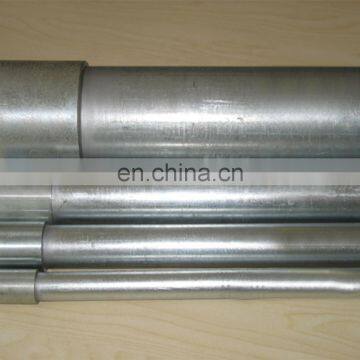

Hot Galvanized Rigid Steel Pipe Intermediate Metal Conduit IMC for Wiring Works ERW Technical With ANSI Standard UL1242 Listed
- Qingdao Port Tianjin Port Shanghai Port
- T/T Credit Card
You May Like
-
East Conduit IMC Conduit Rigid Steel Tube of High-strength Steel Coil ERW Welded Pipe With ANSI C80.6 UL1242 Standard
-
IMC Conduit Hot Galvanized Rigid Steel Pipe Lower Life-cycle Cost ERW Tubing With ANSI C80.6 Standard UL1242
-
ERW Galvanized IMC Steel Conduit With ANSI C80.6 UL1242 Standard
-
IMC Conduit Close Nipple 1/2"-4" UL1242
-
UL1242 Electrical Conduit Close Nipple
-
IMC Elbow Ul1242 Smooth Interior Surface Wuth Inner Bead Moved
Product Details
| Place of Origin | Shandong, China | Certification | UL | |
| Thickness | 0.078, 0.15 | Application | Structure Pipe | |
| Surface Treatment | Galvanized | Technique | ERW | |
| Alloy Or Not | Non-alloy | |||
| Outer Diameter | 0.815 - 4.466 inch | Secondary Or Not | Non-secondary | |
| Section Shape | Round |
Product Description
East Conduit’s IMC Conduit (UL1242) has excellent protection, strength, safety and ductility for your wiring works.

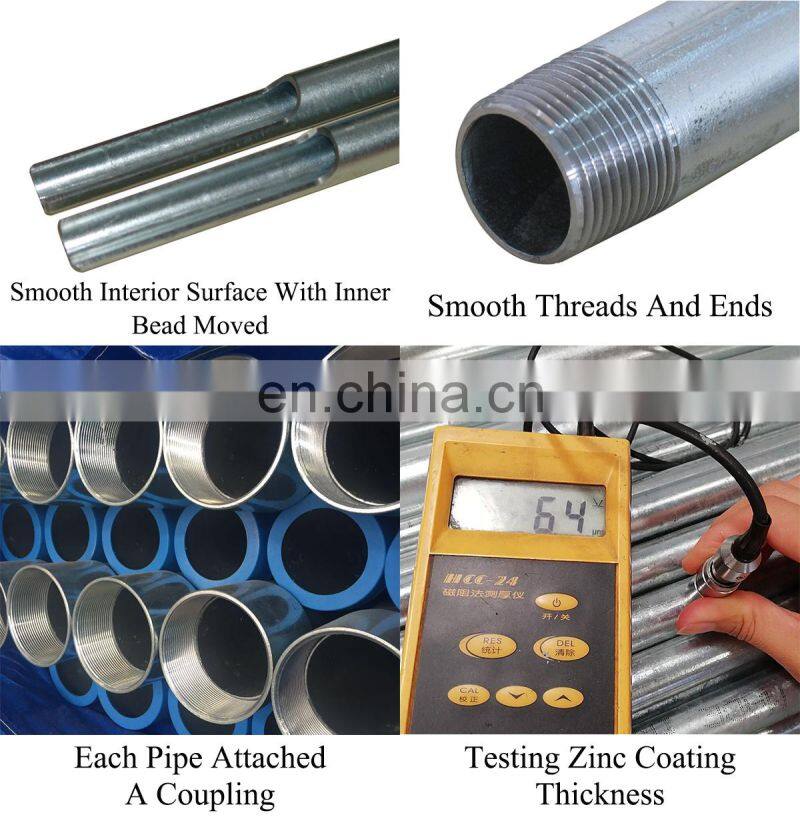

East Conduit IMC conduit is zinc c oated both inside and outside, the clear post-galvanizing coating to provide further protection against corrosion, so it offers corrosion protection for installation in dry, wet, exposed, concealed or hazardous location.

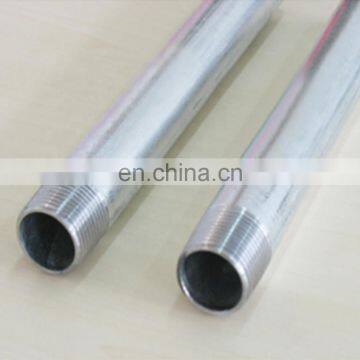

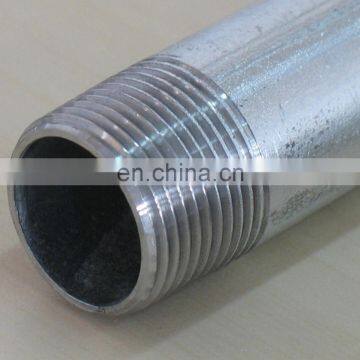

East Conduit IMC Conduit is produced in normal trade sizes from 1/2" to 4" in standard lengths of 10feet (3.05m). Both ends threaded according to the standard of ANSI/ASME B1.20.1, coupling supplied on one end, color-coded thread protector on the other end for quick identification of the conduit size.
- Standard: UL1242 & ANSI C80.6
- Tade Size: From 1/2” to 4”
- Length: 3050mm or according to customer’s requirement

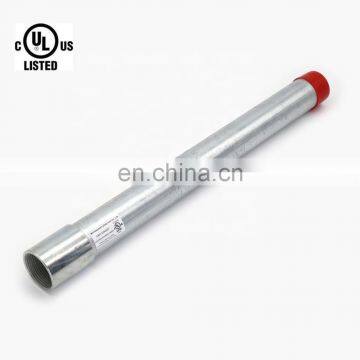

- Both ends: Threaded both ends with one coupling and plastic cap
- Usage: Through the electrical wires with the purpose of protection for the electrical raceway system
- Surface Finished: Hot Dip Galvanized(HDG).
- Material: Carbon Steel Coil

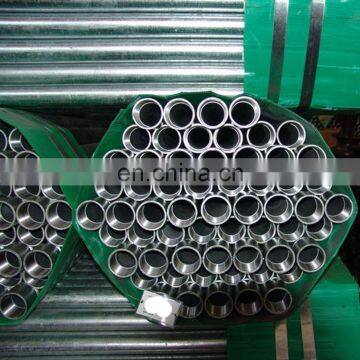

- Package: The conduits coverd with pvc paper then tied with steel straps
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T
Dimension and Weight Chart
Trade Size | Nominal Wt. per 100Ft(30.5M) | Nominal Outside Diameter | Nominal Wall Thickness | ||||
U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
1/2 | 16 | 62 | 28.12 | 0.815 | 20.70 | 0.078 | 1.97 |
3/4 | 21 | 84 | 38.10 | 1.029 | 26.26 | 0.083 | 2.10 |
1 | 27 | 119 | 53.98 | 1.290 | 32.77 | 0.093 | 2.35 |
1-1/4 | 35 | 158 | 71.67 | 1.638 | 41.59 | 0.095 | 2.41 |
1-1/2 | 41 | 194 | 88.00 | 1.883 | 47.82 | 0.100 | 2.54 |
2 | 53 | 256 | 116.12 | 2.360 | 59.93 | 0.105 | 2.67 |
2-1/2 | 63 | 441 | 200.04 | 2.857 | 72.57 | 0.150 | 3.81 |
3 | 78 | 543 | 246.30 | 3.476 | 88.29 | 0.150 | 3.81 |
3-1/2 | 91 | 629 | 285.31 | 3.971 | 100.86 | 0.150 | 3.81 |
4 | 103 | 700 | 317.52 | 4.466 | 113.44 | 0.150 | 3.81 |
Length: 10Ft (3.05m) ± ¼” (±6.3mm).
Outside Diameter: ½”-1” ±0.005” (±0.13mm); 1¼-”-2” ±0.0075” (±0.19mm); 2½”-4” ±0.10” (±0.25mm);
Wall thickness tolerances: ½-”-2” ±0.15” (±0.38mm);2½”-4” ±0.20” (±0.51mm)
Weifang East Steel Pipe Co.,Ltd, which occupies about 254,000 square meters, has a total capital of USD80 million and annual comprehensive output of 200,000 tons. Now it owns 800 employees, including 300 senior/intermediate engineers and professional technicians.
Now our electrical products include Rigid Steel Conduit ,Rigid Aluminum Conduit, IMC Conduit, EMT Conduit and Conduit fittings such as elbow, nipple, coupling, etc., and our products have been exported to more than 51 countries in the world, including North America, Middle America, South America, Asia, Middle East, Europe, etc. We are always appreciated by our clients for good quality and excellent services.
Fast Facts About Weifang East Steel Pipe Co.,Ltd.
- The largest rigid steel conduit producer in China
- The only producer of Hot Dip Galvanized EMT conduit in the world.
- The professional manufacturer of conduit accessories in China
Q1.Are you a manufacturer or trading company?
A:We are a manufacturer specializing in steel pipe related products for more than 60 years in domestic market, so we can provide products stably for a long time with lower price.
Q2.Can you provide free sample for our test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. You only need to bear the freight and the sample will be sent out within 7 days.
Q3. Do you have any MOQ limit for production?
A: We don’t have any MOQ limit. But as for our steel pipe product, we usually use container transport for lower freight. In the case of express delivery, high freight charges will be generated.
Q4. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q5. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How to deal with the faulty?
A: We sincerely welcome you to investigate our factory and inspect the goods. Our products are produced in strict quality control system and the defective rate is low.
Also, if you have any questions or dissatisfaction, please feel free to contact us. We will serve you as soon as possible and give you a satisfactory solution.
