Rigid Metal Conduit
General
East Conduit Rigid Pipe is manufactured with high-strength steel, and produced by the electric resistance welding process.
East Conduit Rigid Pipe are zinc coated both inside and outside with hot dip galvanizing process, so that metal-to-metal contact and galvanic protection against corrosion are provided.
The surface of East Conduit Rigid Pipe adopts the clear post-galvanizing coating to provide further protection against corrosion. The interior surface provides a smooth continuous raceway for easy wire pulling. The ductility characteristics of our conduits helps for easy bending, cutting, and threading in the field.
East Conduit Electrical Rigid Conduit is UL listed, produced in normal trade sizes from 1/2" to 6" in standard lengths of 10feet(3.05m). It is manufactured in accordance with ANSI C80.1, UL6. Both ends threaded according to the standard of ANSI/ASME B1.20.1, coupling supplied on one end, color-coded thread protector on the other end for quick identification of the conduit size.
Detailed Product Description
- Standard: UL6 & ANSI C80.1
- Certificates: UL Listed, certificate No.E308290 (177709-001)
- Trade Size: From 1/2” to 6”
- Both ends:Threaded both ends with one coupling and plastic cap
- Length:3050mm or according to customer’s requirement
- Usage:Through the electrical wires with the purpose of protection for the electrical raceway system
- Surface Finished: Hot dip galvanized(HDG).
- Material: Carbon steel coil

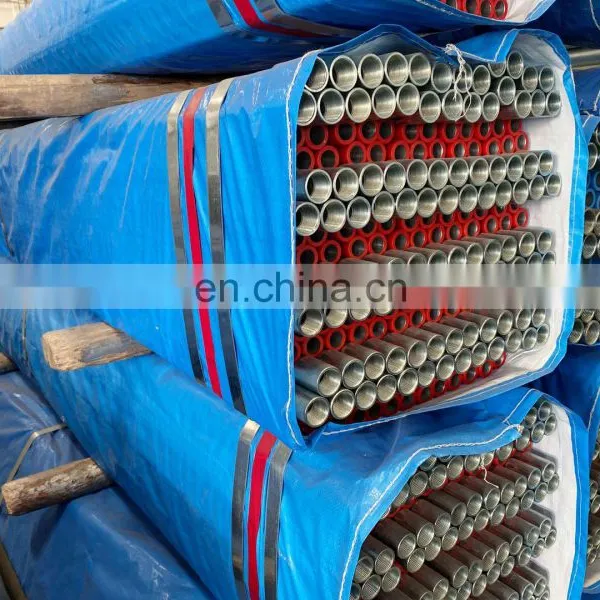

- Package: The conduits cover with PVC paper then tied with steel straps
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T
Dimension and Weight Chart
|
Trade Size |
Nominal Wt. per 100Ft(30.5M) |
Nominal Outside Diameter |
Nominal Wall Thickness |
||||
|
U.S. |
Metric |
Lbs |
Kg |
In. |
mm |
In. |
mm |
|
1/2 |
16 |
82 |
37.2 |
0.840 |
21.34 |
0.104 |
2.64 |
|
3/4 |
21 |
109 |
49.4 |
1.050 |
26.67 |
0.107 |
2.72 |
|
1 |
27 |
161 |
73.0 |
1.315 |
33.40 |
0.126 |
3.20 |
|
1-1/4 |
35 |
218 |
98.9 |
1.660 |
42.16 |
0.133 |
3.38 |
|
1-1/2 |
41 |
263 |
119.3 |
1.900 |
48.26 |
0.138 |
3.51 |
|
2 |
53 |
350 |
158.8 |
2.375 |
60.33 |
0.146 |
3.71 |
|
2-1/2 |
63 |
559 |
253.6 |
2.875 |
73.03 |
0.193 |
4.90 |
|
3 |
78 |
727 |
329.8 |
3.500 |
88.90 |
0.205 |
5.21 |
|
3-1/2 |
91 |
880 |
399.2 |
4.000 |
101.60 |
0.215 |
5.46 |
|
4 |
103 |
1030 |
467.2 |
4.500 |
114.30 |
0.225 |
5.72 |
|
5 |
129 |
1400 |
635.0 |
5.563 |
141.30 |
0.245 |
6.22 |
|
6 |
155 |
1840 |
834.6 |
6.625 |
168.28 |
0.266 |
6.76 |
