Home > Construction & Decoration > Pipe Fittings > Tee > Rigid Steel Hot Dip Galvanized Conduit Coupler With ANSI C80.1 ul Listed
Rigid Steel Hot Dip Galvanized Conduit Coupler With ANSI C80.1 ul Listed
US$ 1.11 - 1.11
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Brand Name:
East Conduit
Place of Origin:
Shandong, China
Model Number:
Coupling
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Dip Galvanized Rgs Conduit Size 1 Dia 2 ft Length for Easy Wire PullingUS$ 3.35 - 3.35MOQ: 3000 Pieces -
Supplies of Electric Resistance Welded Pipe RGS Condulet Electrical Conovit With UL6 ANSI C80.1US$ 3.35 - 3.35MOQ: 3000 Pieces
-
Supplies of Union Conduit Tipo Rsg Rigid Conduit Fitting With UL6 ANSI C80.1US$ 3.35 - 3.35MOQ: 3000 Pieces
-
Supplier of Rmc Rigid Metal Conduit Que Significa RGS Conduit Coupler With UL6 ANSI C80.1US$ 3.35 - 3.35MOQ: 3000 Pieces
-
Supplier of Rigid Steel Conduit Nec Bending Size 1 Dia 2ft Length With UL6 ANSI C80.1US$ 3.35 - 3.35MOQ: 3000 Pieces
Brand Name
East Conduit
Place of Origin
Shandong, China
Model Number
Coupling
Connection
Female
Rigid Conduit Couplings

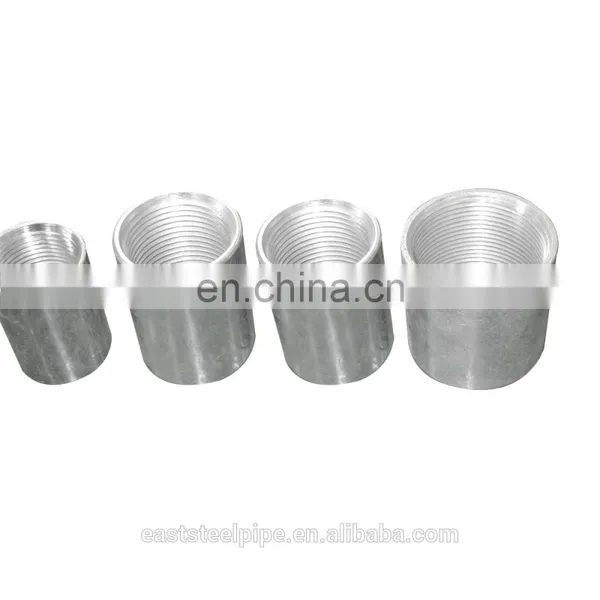

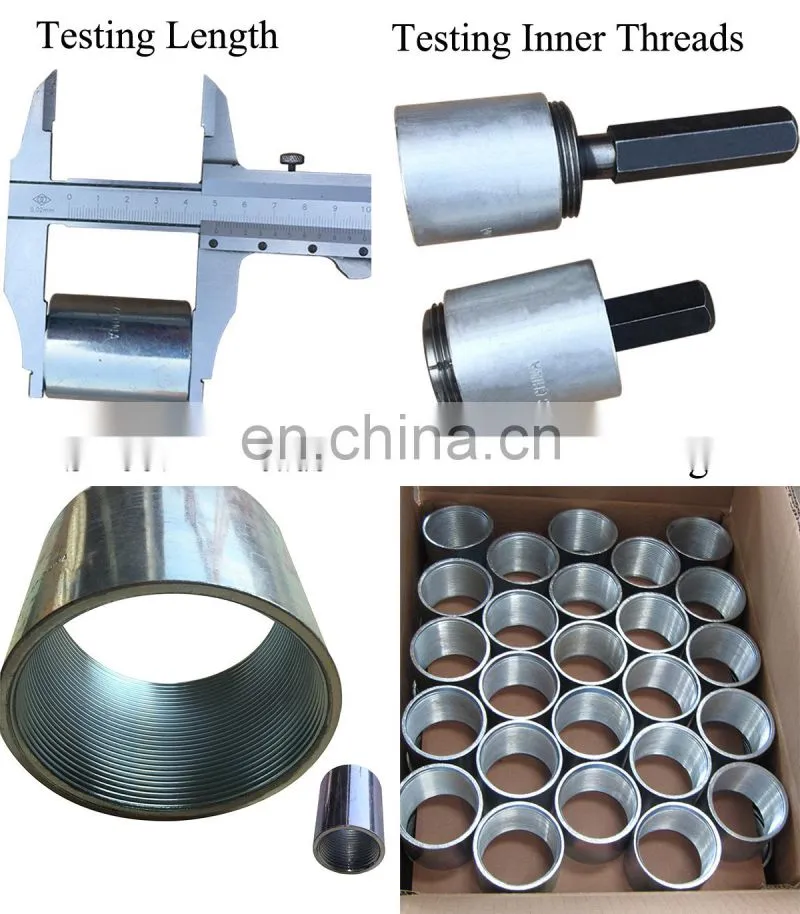

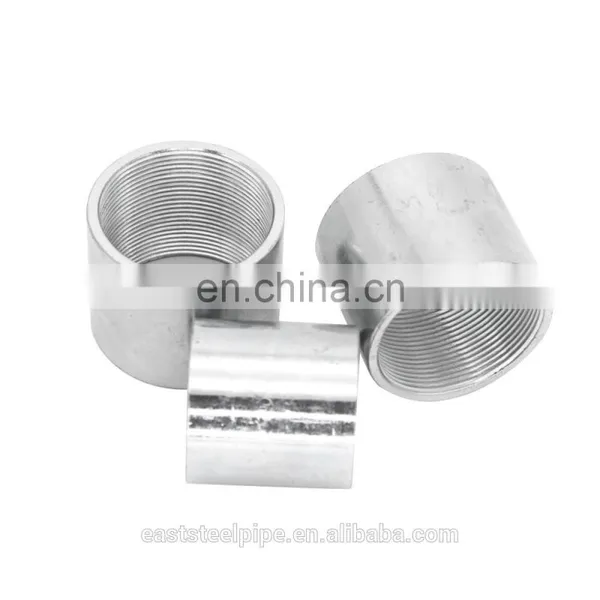

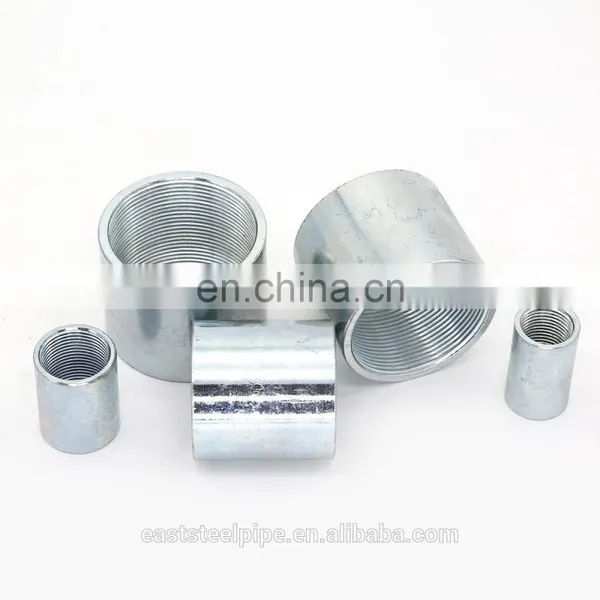

The rigid conduit coupling is used to connect the electrical steel conduits together, thus extending the length of the conduit pipe. It is manufactured from seamless steel pipes according to ANSI C80.1 and UL6 standards with UL certificate number of E308290. Its trade size can be from 1/2" to 6". We can make the rigid conduit coupling zinc plate on both outer side and inner side. The internal surface can also be electro-galvanized completely .
Detailed Product Description
- Standard: UL6 & ANSI C80.1
- Certificates: UL Listed, certificate No.E308290 (177709-001)
- Trade Size: From 1/2” to 6”
- Usage:Used in Rigid Metal Conduit
- Surface: Zinc plate on both out side and inner side, or hot dipped galvanzied and zinc plate on out side and zinc plate on inner side
- Material: Seamless Steel Pipe
- Package: Carton
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T
Dimension and Weight Chart
| Trade Size | Weight Per 100 pcs | Outside Diameter "B" | Minimum Acceptable Legnth"A" | Standard Carton Qty | Weight Per Carton | ||||
| KG | LBS | mm | in. | mm | in. | PCS | KG | LBS | |
| 1/2" | 6.35 | 14 | 25.7 | 1.01 | 41.3 | 1.626 | 400 | 25.4 | 56 |
| 3/4" | 9.07 | 20 | 31.8 | 1.25 | 41.7 | 1.642 | 300 | 27.2 | 60 |
| 1" | 14.06 | 31 | 38.7 | 1.53 | 50 | 1.969 | 180 | 25.3 | 56 |
| 1-1/4" | 17.69 | 39 | 47.5 | 1.87 | 51.6 | 2.031 | 100 | 17.7 | 39 |
| 1-1/2" | 25.4 | 56 | 54.7 | 2.16 | 52.4 | 2.063 | 75 | 19.1 | 42 |
| 2" | 33.11 | 73 | 67.3 | 2.65 | 54 | 2.126 | 60 | 19.9 | 44 |
| 2-1/2" | 83.92 | 185 | 82.6 | 3.25 | 81 | 3.189 | 12 | 10.1 | 22 |
| 3" | 102.51 | 226 | 98.3 | 3.87 | 84.1 | 3.311 | 8 | 8.2 | 18 |
| 3-1/2" | 162.39 | 358 | 114.3 | 4.5 | 86.5 | 3.406 | 4 | 6.5 | 14 |
| 4" | 181.44 | 400 | 123.8 | 4.88 | 89.3 | 3.516 | 4 | 7.3 | 16 |
| 5" | 225.44 | 497 | 152.4 | 6 | 100.4 | 3.953 | 2 | 4.5 | 10 |
| 6" | 370.1 | 816 | 182.9 | 7.2 | 108 | 4.252 | 3 | 11.1 | 24 |
