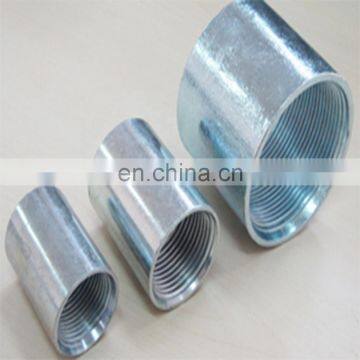

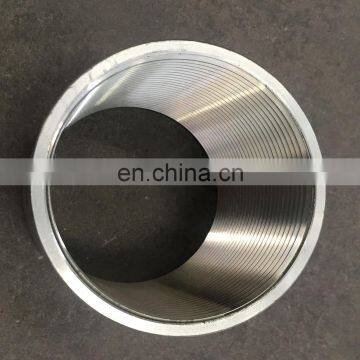

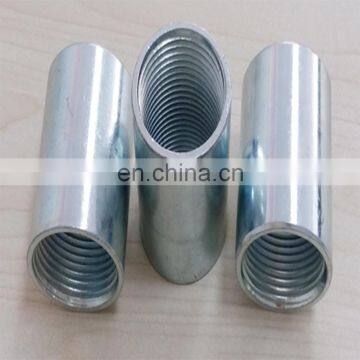

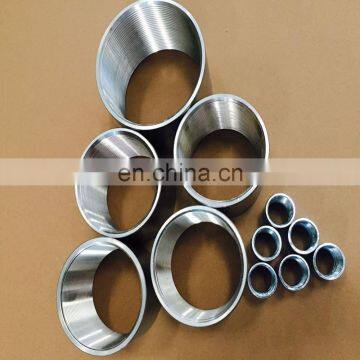

The rigid conduit coupling is used to connect the electrical steel conduits together, thus extending the length of the conduit pipe. It is manufactured from seamless steel pipes according to ANSI C80.1 and UL6 standards with UL certificate number of E308290. Its trade size can be from 1/2" to 6". We can make the rigid conduit coupling zinc plate on both outer side and inner side.
| Trade Size | Weight Per 100pcs | Outside Diameter |
Minumun Acceptable Length
|
Standard Carton Qty | Weight Per Carton | ||||
| KG | LBS | mm | in. | mm | in. | PCS | KG | LBS | |
| 1/2" | 6.35 | 14 | 25.7 | 1.01 | 41.3 | 1.626 | 400 | 25.4 | 56 |
| 3/4" | 9.07 |
20 | 31.8 | 1.25 | 41.7 | 1.642 | 300 | 27.2 | 60 |
| 1" | 14.06 | 31 | 38.7 | 1.53 | 50.0 | 1.969 | 180 | 25.3 | 56 |
| 1-1/4" | 17.69 | 39 | 47.5 |
1.87 | 51.6 | 2.031 | 100 | 17.7 | 39 |
| 1-1/2" | 25.40 | 56 | 54.7 | 2.16 | 52.4 | 2.063 | 75 | 19.1 | 42 |
| 2" | 33.11 | 73 | 67.3 | 2.65 | 54.0 | 2.126 | 60 | 19.9 | 44 |
| 2-1/2" | 83.92 | 185 | 82.6 | 3.25 | 81.0 | 3.189 | 12 | 10.1 | 22 |
| 3" | 102.51 | 226 | 98.3 | 3.87 | 84.1 | 3.311 | 8 | 8.2 | 18 |
| 3-1/2" | 162.39 | 358 | 114.3 | 4.50 | 86.5 | 3.406 | 4 | 6.5 | 14 |
| 4" | 181.44 | 400 | 123.8 | 4.88 | 89.3 | 3.516 | 4 | 7.3 | 16 |
| 5" | 225.44 | 497 | 152.4 | 6.00 | 100.4 | 3.953 | 2 | 4.5 | 10 |
| 6" | 370.10 | 816 | 182.9 | 7.20 | 108.0 | 4.252 | 3 | 11.1 | 24 |
| Standard : | UL6 & ANSI C80.1 File No.:E308290 | ||||
We usually use container for marine transportation standard carton packaging. Winding film will be used to discharge water outside the container. You can contact us to customize carton materials, external signs, etc.
If you have any questions, please feel free to contact us, we will give you reply as soon as possible and provide the best service for you.
Weifang East Steel Pipe Co.,Ltd, which occupies about 254,000 square meters, has a total capital of USD80 million and annual comprehensive output of 200,000 tons. Now it owns 800 employees, including 300 senior/intermediate engineers and professional technicians.
Now our electrical products include Rigid Steel Conduit ,Rigid Aluminum Conduit, IMC Conduit, EMT Conduit and Conduit fittings such as elbow, nipple, coupling, etc., and our products have been exported to more than 51 countries in the world, including North America, Middle America, South America, Asia, Middle East, Europe, etc. We are always appreciated by our clients for good quality and excellent services.
Fast Facts About Weifang East Steel Pipe Co.,Ltd.
- The largest rigid steel conduit producer in China
- The only producer of Hot Dip Galvanized EMT conduit in the world.
- The professional manufacturer of conduit accessories in China
Q1. Can I have a sample order for test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for production?
A: We don’t have any MOQ limit. But as for our steel pipe product, we usually use container transport for lower freight. In the case of express delivery, high freight charges will be generated.
Q3. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q4. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Also, if you have any questions or dissatisfaction, please feel free to contact us. We will serve you as soon as possible and give you a satisfactory solution.
