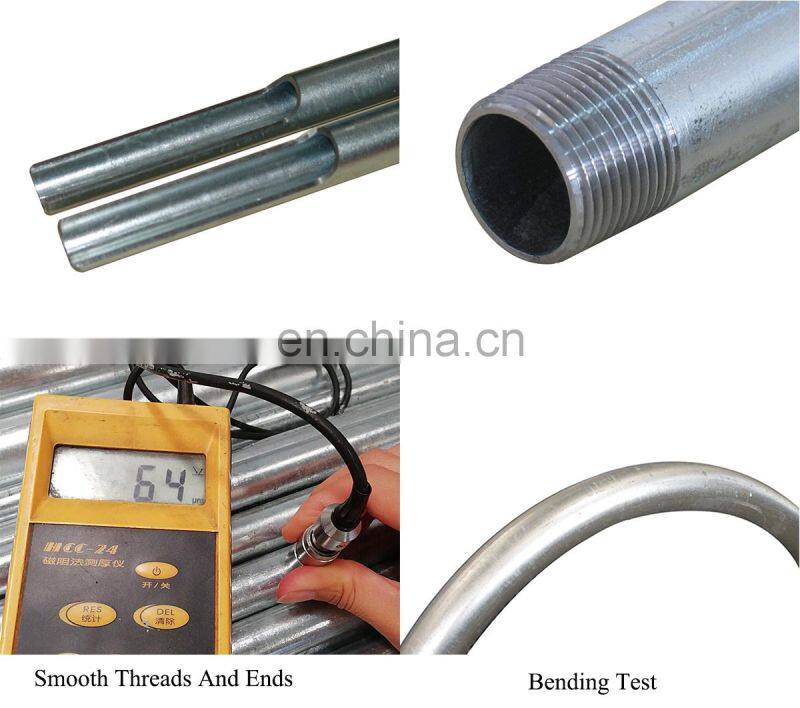

UL Listed UL6 ANSI C80.1 Electrical Rigid Steel Conduit
- qingdao tianjin shanghai.ningbo
- T/T Credit Card
You May Like
-
Rigid Galvanized 2 Inch Steel Pipe Erw Process With Excellent ID Smoothness
-
Electrical Rigid Steel Conduit Ul6 Pipe
-
Rigid Galvanized Pipe With Consistent Quality UL Listed
-
Galvanized Rigid Steel Conduit Manufacturer Trader
-
Rigid Tube With ul Listed Manufacturer Electrical Metal Conduit Erw Tube
-
C80.1 Rigid Steel Conduit
Product Details
| Place of Origin | China | Certification | UL | |
| Thickness | 0.104, 0.266 | Application | Structure Pipe | |
| Surface Treatment | Galvanized | Technique | ERW | |
| Alloy Or Not | Non-alloy | Outer Diameter | 0.84 - 6.625 inch | |
| Secondary Or Not | Non-secondary | Special Pipe | EMT Pipe | |
| Section Shape | Round |
Product Description
1.Product Name : UL listed UL6 ANSI C80.1 electrical rigid steel conduit
2.Standard:UL6 & ANSI C80.1
3.Tade Size : from 1/2” to 6”
4.Both ends: threaded both ends with one coupling and plastic cap
5.Length: 3050mm or according to customer’s requirement
6.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
7.Surface finished: Hot dip galvanized(HDG).
8.Material : carbon steel coil
9.Package: the conduits coverd with pvc paper then tied with steel straps
10.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
11.Payment Term: L/C at sight or T/T
Dimension and Weight Chart
Trade Size | Nominal Wt. per 100Ft(30.5M) | Nominal Outside Diameter | Nominal Wall Thickness | ||||
U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
1/2 | 16 | 82 | 37.2 | 0.840 | 21.3 | 0.104 | 2.60 |
3/4 | 21 | 109 | 49.44 | 1.050 | 26.7 | 0.107 | 2.70 |
1 | 27 | 161 | 73.03 | 1.315 | 33.4 | 0.126 | 3.20 |
1-1/4 | 35 | 218 | 98.88 | 1.660 | 42.2 | 0.133 | 3.40 |
1-1/2 | 41 | 263 | 119.30 | 1.900 | 48.3 | 0.138 | 3.50 |
2 | 53 | 350 | 158.76 | 2.375 | 60.3 | 0.146 | 3.70 |
2-1/2 | 63 | 559 | 253.56 | 2.875 | 73.0 | 0.193 | 4.90 |
3 | 78 | 727 | 329.77 | 3.500 | 88.9 | 0.205 | 5.20 |
3-1/2 | 91 | 880 | 399.17 | 4.000 | 101.6 | 0.215 | 5.50 |
4 | 103 | 1030 | 467.21 | 4.500 | 114.3 | 0.225 | 5.70 |
5 | 129 | 1400 | 635.04 | 5.563 | 141.3 | 0.245 | 6.20 |
6 | 155 | 1840 | 834.62 | 6.625 | 168.3 | 0.266 | 6.80 |
Applicable tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.015” (±0.38mm); 2½”-4” ±0.025” (±0.64mm); 5”-6” ± 1%
