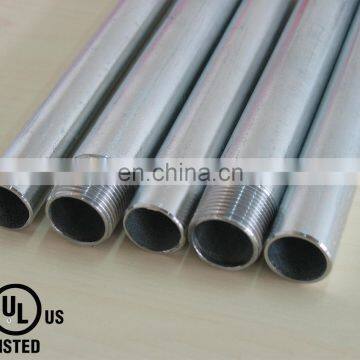

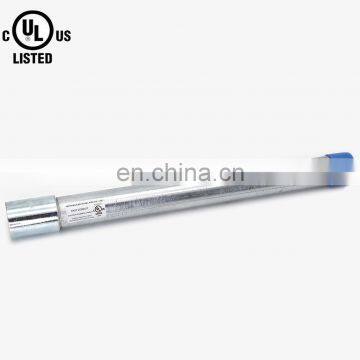

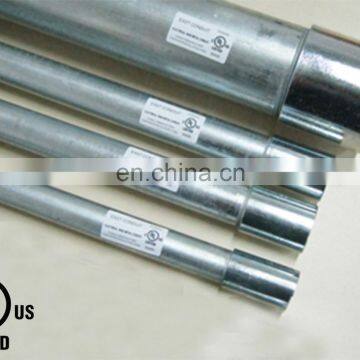

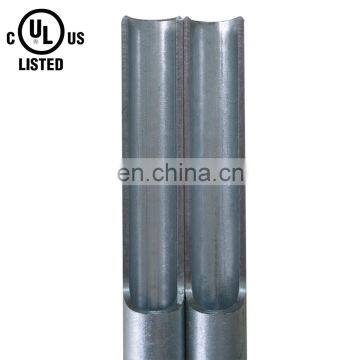

rigid conduit pipe ul listed
USD $600 - $1,000
/ Metric Ton
5 Metric Tons(Min.Order)
- 3000 Metric Ton / Metric Tons per Month
- qingdao tianjin shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Certification | UL | |
| Thickness | 0.104, 0.266 | Surface Treatment | Galvanized | |
| Technique | ERW | Alloy Or Not | Non-alloy | |
| Outer Diameter | 0.84 - 6.625 inch | |||
| Secondary Or Not | Non-secondary | Special Pipe | EMT Pipe | |
| Section Shape | Round |
Product Description
Product Description
| Product Name : | rigid conduit pipe ul listed ; | ||||

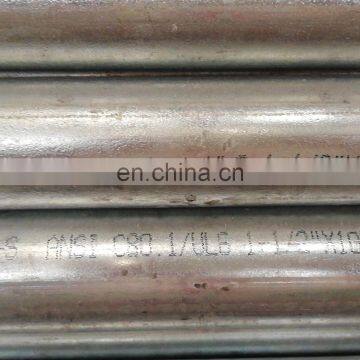

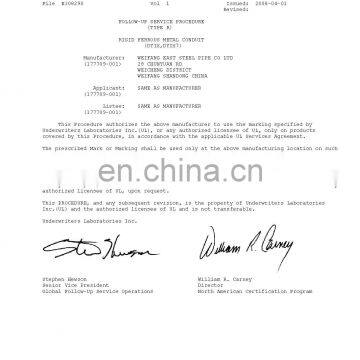

| Standard: | UL6 & ANSI C80.1; File No.:E308290; | ||||
| Tade Size : | from 1/2" to 6"; | ||||
| Both Ends: | threaded both ends with one coupling and plastic cap; | ||||
| Length: | 3050mm or according to customer's requirement; | ||||
| Usage: | through the electrical wires with the purpose of protection for the electrical raceway system; | ||||
| Surface Finished: | Hot dip galvanized(HDG); | ||||
| Material : | carbon steel coil; | ||||

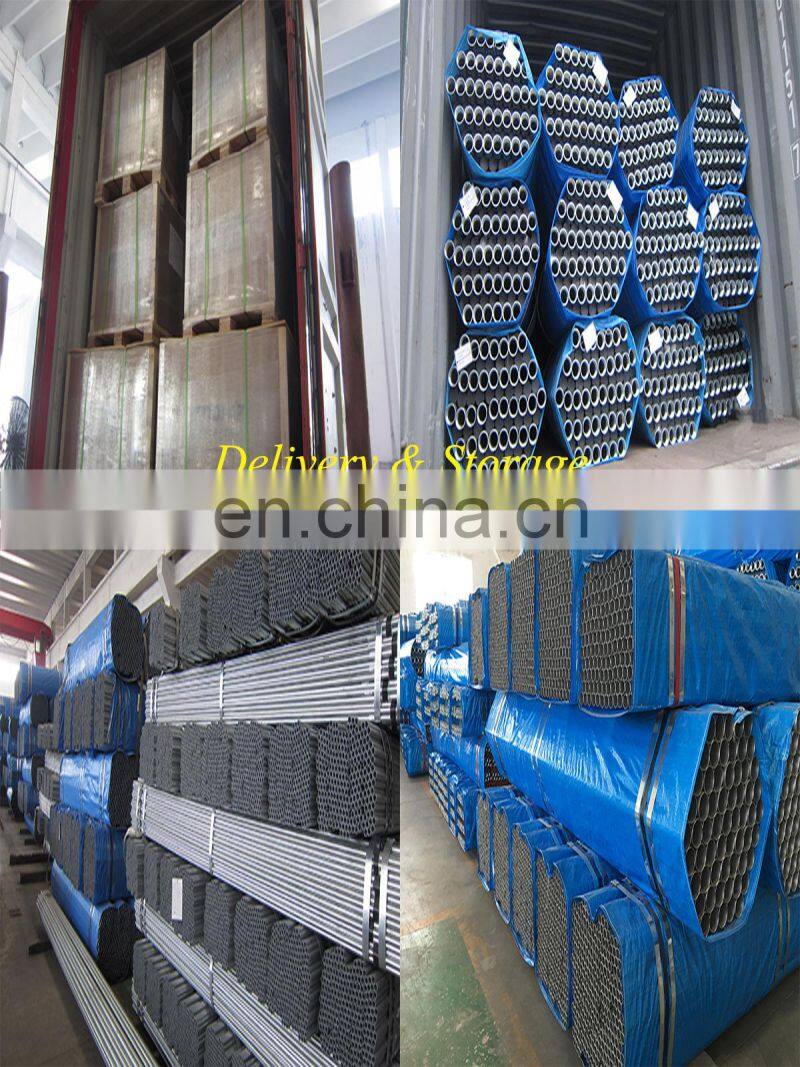

| Package: | the conduits coverd with pvc paper then tied with steel straps; | ||||
| Delivery Time: | 20 to 30 days after we receive your advance payment or copy of L/C; | ||||
| Payment Term: | L/C at sight or T/T; | ||||
Dimension and Weight Chart
| Trade Size | Nominal Wt. per 100Ft(30.5M) | Nominal Outside Diameter | Nominal Wall Thickness | ||||
| U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
| 1/2" | 16 | 82 | 37.2 | 0.84 | 21.3 | 0.104 | 2.64 |
| 3/4" | 21 | 109 | 49.44 | 1.05 | 26.7 | 0.107 | 2.72 |
| 1" | 27 | 161 | 73.03 | 1.315 | 33.4 | 0.126 | 3.20 |
| 1-1/4" | 35 | 218 | 98.88 | 1.66 | 42.2 | 0.133 | 3.38 |
| 1-1/2" | 41 | 263 | 119.3 | 1.9 | 48.3 | 0.138 | 3.51 |
| 2" | 53 | 350 | 158.76 | 2.375 | 60.3 | 0.146 | 3.71 |
| 2-1/2" | 63 | 559 | 253.56 | 2.875 | 73 | 0.193 | 4.90 |
| 3" | 78 | 727 | 329.77 | 3.5 | 88.9 | 0.205 | 5.21 |
| 3-1/2" | 91 | 880 | 399.17 | 4 | 101.6 | 0.215 | 5.46 |
| 4" | 103 | 1030 | 467.21 | 4.5 | 114.3 | 0.225 | 5.72 |
| 5" | 129 | 1400 | 635.04 | 5.563 | 141.3 | 0.245 | 6.22 |
| 6" | 155 | 1840 | 834.62 | 6.625 | 168.3 | 0.266 | 6.76 |
Applicable tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.015” (±0.38mm); 2½”-4” ±0.025” (±0.64mm); 5”-6” ± 1%
