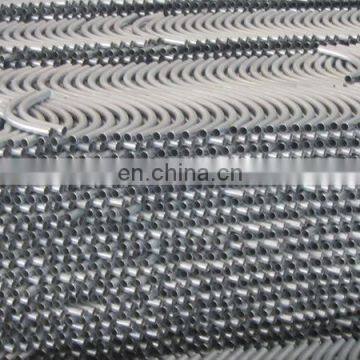

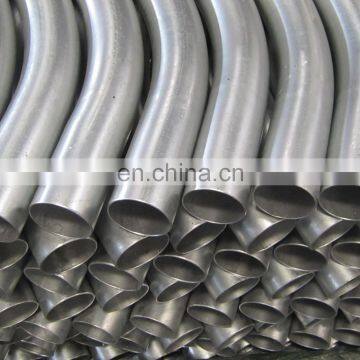

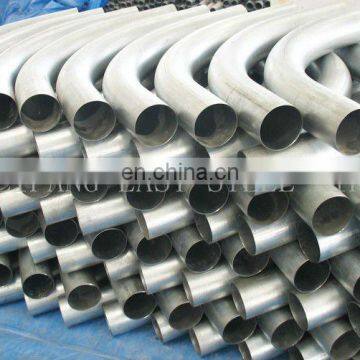

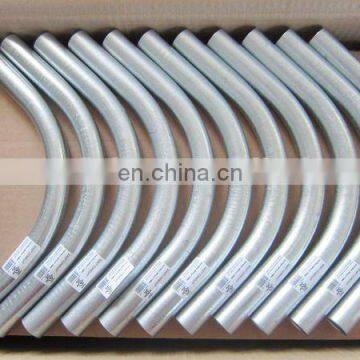

Hot Dip Galvanized Emt 90 Deg Elbow Supplies
US$ 0.5 - 2
MOQ: 100 Pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Dip Galvanized Emt Condiut With UL ListedUS$ 1 - 100MOQ: 5000 Pieces -
Hot Dip Galvanized Emt Conduit 1 2 Mcgill Price PhilippinesUS$ 1 - 100MOQ: 5000 Pieces
-
Hot Dip Galvanized Emt Conduit 1 in With UL ListedUS$ 1 - 100MOQ: 5000 Pieces
-
Ansi C80.3 Galvanized Emt Conduit 90 Degree Fittings List ElbowUS$ 600 - 800MOQ: 10 Metric Tons
-
Hot Dip Galvanized Emt Conduit Accessories Emt ElbowUS$ 600 - 800MOQ: 10 Metric Tons
Place of Origin
China
| Product Information | |||||
| Product Name : | hot dip galvanized emt 90 deg elbow supplies | ||||
| Standard: | UL797 & ANSI C80.3 File No.:E340594; | ||||
| Tade Size : | from 1/2” to 4” are available ; | ||||
| Length: | 3050mm or according to customer’s requirement; | ||||
| Usage: | through the electrical wires with the purpose of protection for the electrical raceway system; | ||||
| Surface Finished: | Hot dip galvanized(HDG); | ||||
| Material : | carbon steel coil; | ||||
| Package: | the conduits coverd with pvc paper then tied with steel straps; | ||||
| Delivery Time: | 20 to 30 days after we receive your advance payment or copy of L/C; | ||||
| Payment Term: | L/C at sight or T/T; | ||||
Dimension Chart
| Pipe Size | Mini.UL Radius(mm) | Weight Per 100pcs(KG) | Weight Per 100pcs(LBS) | Standard Carton Qty | Weight Per Carton(KG) |
| 1/2" | 102 | 13.5 | 30 | 50 | 6.75 |
| 3/4" | 114 | 22.2 | 49 | 50 | 11.1 |
| 1" | 146 | 38.2 | 84 | 25 | 9.56 |
| 1-1/4" | 184 | 68.4 | 151 | 20 | 13.67 |
| 1-1/2" | 210 | 89.1 | 196 | 15 | 13.36 |
| 2" | 241 | 130.9 | 288 | 10 | 13.09 |
| 2-1/2" | 267 | 221.2 | 488 | 50 | 110.58 |
| 3" | 330 | 326.6 | 720 | 35 | 114.3 |
| 3-1/2" | 381 | 487.1 | 1074 | 25 | 121.76 |
| 4" | 406 | 583 | 1285 | 25 | 145.76 |
REMARK:Elbows special radius available upon request.
