Product Details

Place of Origin:	Shandong, China	Certification:	UL	Thickness:	1.07, 2.11
Technique:	ERW
Alloy Or Not:	Non-alloy
Outer Diameter:	17.93 - 114.3 mm	Secondary Or Not:	Non-secondary	Special Pipe:	EMT Pipe
Section Shape:	Round

Product Description

Electrical Metallic Tubing (EMT)

Product Introduction

EMT is manufactured from high-strength steel coil, and produced according to the standard of ANSI C80.3(UL797). The interior surface of our conduit is free from defect with a smooth welded seam. It is hot dipped galvanized inside and outside, so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of the conduit is coated with a clear lacquer coating to inhibit white rust and increase corrosion resistance. The interior surface provides a smooth continuous raceway for easy wire pulling. Our EMT conduit has excellent ductility, providing for uniform bending and cutting.

Length: 3050mm or according to customer’s requirement
Usage: Through the electrical wires with the purpose of protection for the electrical raceway system
Surface finished: Hot Dip Galvanized(HDG).
Material : Carbon Steel Coil

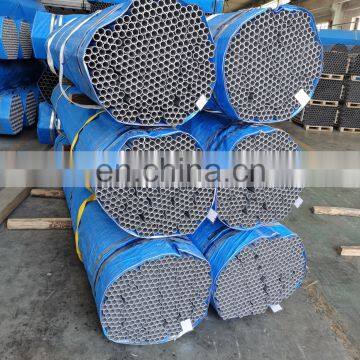

Package: The conduits coverd with pvc paper then tied with steel straps
Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
Payment Term: L/C at sight or T/T
UL Certificate No. : E340594(177709-001)

Dimension and Weight Chart

Trade Size		Nominal Wt. per 100Ft(30.5M)		Nominal Outside Diameter		Nominal Wall Thickness
U.S.	Metric	Lbs	Kg	In.	mm	In.	mm
1/2	16	30	13.5	0.706	17.93	0.042	1.07
3/4	21	46	20.7	0.922	23.42	0.049	1.24
1	27	67	30.6	1.163	29.54	0.057	1.45
1-1/4	35	101	45.6	1.510	38.35	0.065	1.65
1-1/2	41	116	52.8	1.740	44.20	0.065	1.65
2	53	148	67.2	2.197	55.80	0.065	1.65
2-1/2	63	216	97.9	2.875	73.03	0.072	1.83
3	78	263	119.3	3.500	88.90	0.072	1.83
3-1/2	91	349	158.3	4.000	101.60	0.083	2.11
4	103	393	178.3	4.500	114.30	0.083	2.11

Applicable Tolerances:

Length: 10Ft (3.05m) ± ¼” (±6 mm).

Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)

Specifications:

East Conduit EMT pipe is manufactured in accordance with the latest edition of the following:

American National Standard for Rigid Steel EMT (ANSI® C80.3)
Underwriters Laboratories Standard for EMT-Steel (UL797)
National Electric Code® 2002 Article 358 (1999 NEC® Article 348)
