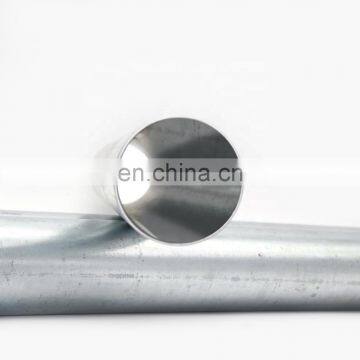

Electrical Emt Metal Tubing Manufacturer
US$ 0.2 - 1
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Certification:
UL797
Secondary Or Not:
Non-secondary
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Dip Galvanized Emt 45 Degree Elbow With ul ListedUS$ 0.5 - 2MOQ: 100 Pieces -
Electrical Metal Steel Emt 90 ElbowUS$ 0.5 - 2MOQ: 1000 Pieces
-
Hot Dip Galvanized UL Listed EMT ConduitUS$ 0.2 - 1MOQ: 1 Piece
-
Hot Dip Galvanized1 Emt 90 Degree Elbow With ul ListedUS$ 0.5 - 2MOQ: 100 Pieces
-
Hot Dip Galvanized 1 Inch Emt Conduit FittingsUS$ 0.5 - 2MOQ: 1000 Pieces
Place of Origin
Shandong, China
Secondary Or Not
Non-secondary
| Product Information | |||||
| Product Name : | electrical emt metal tubing manufacturer ; | ||||
| Standard: | UL797 & ANSI C80.3 File No.:E340594; | ||||
| Tade Size : | from 1/2” to 4” are available ; | ||||
| Length: | 3050mm or according to customer’s requirement; | ||||
| Usage: | through the electrical wires with the purpose of protection for the electrical raceway system; | ||||
| Surface Finished: | Hot dip galvanized(HDG); | ||||
| Material : | carbon steel coil; | ||||
| Package: | the conduits coverd with pvc paper then tied with steel straps; | ||||
| Delivery Time: | 20 to 30 days after we receive your advance payment or copy of L/C; | ||||
| Payment Term: | L/C at sight or T/T; | ||||
Dimension and Weight Chart
| Trade Size | Nominal Wt. per 100Ft(30.5M) | Nominal Outside Diameter | Nominal Wall Thickness | ||||
| U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
| 1/2" | 16 | 30 | 13.5 | 0.706 | 17.93 | 0.042 | 1.07 |
| 3/4" | 21 | 46 | 20.7 | 0.922 | 23.42 | 0.049 | 1.24 |
| 1" | 27 | 67 | 30.6 | 1.163 | 29.54 | 0.057 | 1.45 |
| 1-1/4" | 35 | 101 | 45.6 | 1.51 | 38.35 | 0.065 | 1.65 |
| 1-1/2" | 41 | 116 | 52.8 | 1.74 | 44.2 | 0.065 | 1.65 |
| 2" | 53 | 148 | 67.2 | 2.197 | 55.8 | 0.065 | 1.65 |
| 2-1/2" | 63 | 216 | 97.9 | 2.875 | 73.03 | 0.072 | 1.83 |
| 3" | 78 | 265 | 120 | 3.5 | 88.9 | 0.072 | 1.83 |
| 3-1/2" | 91 | 348 | 158 | 4 | 101.6 | 0.083 | 2.11 |
| 4" | 103 | 392 | 178 | 4.5 | 114.3 | 0.083 | 2.11 |
Applicable Tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
