East Conduit's Galvanized Steel Electrical Metallic Tubing (EMT) is excellent electrical conduit to be used currently and availably in the marketplace.
East Conduit EMT is manufactured from high-strength steel, and produced with the electric resistance welding process.
The interior and exterior surfaces of East Conduit EMT are free from defect with a smooth welded seam, and are thoroughly and evenly coated by zinc with hot dip galvanizing process, so that metal-to-metal contact and galvanic protection against corrosion are provided.
The surface of East Conduit EMT adopt the clear post-galvanizing coating to provide further protection against corrosion. The interior surface provides a smooth continuous raceway for easy wire pulling. Our EMT conduit has excellent ductility providing for uniform bending, cutting in the field.
EMT is produced in normal trade sizes from 1/2" to 4". EMT is produced in standard lengths of 10 feet (3.05 m). The quantity in bundle and master bundle is as per table below. Bundles of finished EMT are identified with color coded tape for easy size identification.
Consistent Quality- We manufacture for long life; it is durable, strong, and suitable for bending. The steel is welded to ensure quality standards are met strictly. We do not have any trouble with welds spiting or wrinkling from severe bending caused by improper raw materials or poor quality control during pipe welding. The product is easy to cut, form and join.
Excellent ID smoothness- We manufacture the pipes with removing ID flash during pipe making and putting protective coating over galvanizing to provide longer life cycle and excellent smoothness and more wire capacity together with no hassle in stripping wire and less friction between wall and wire.
Lower Life-cycle costs- East conduit resists cracking, flaking, peeling, impact, and damage from severe bending. lts physical and mechanical properties ensure that the pipe has an extended life cycle, which is great usage or storage without trouble in quality.
Protection from Environmental Damage and Mechanical Use - the thorough inside and outside zinc coating of East Conduit provides enhanced, second to none corrosion protection.
| Trade Size |
Nominal Wt. per 100Ft (30.5M) |
Nominal Outside Diameter | Nominal Wall Thickness | ||||
| U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
| 1/2" | 16 | 30 | 13.5 | 0.706 | 17.93 | 0.042 | 1.07 |
| 3/4" | 21 | 46 | 20.7 | 0.922 | 23.42 | 0.049 | 1.24 |
| 1" | 27 | 67 | 30.6 | 1.163 | 29.54 | 0.057 | 1.45 |
| 1-1/4" | 35 | 101 | 45.6 | 1.510 | 38.35 | 0.065 | 1.65 |
| 1-1/2" | 41 | 116 | 52.8 | 1.740 | 44.2 | 0.065 | 1.65 |
| 2" | 53 | 148 | 67.2 | 2.197 | 55.8 | 0.065 | 1.65 |
| 2-1/2" | 63 | 216 | 97.9 | 2.875 | 73.03 | 0.072 | 1.83 |
| 3" | 78 | 263 | 119.3 | 3.500 | 88.90 | 0.072 | 1.83 |
| 3-1/2" | 91 | 349 | 158.3 | 4.000 | 101.60 | 0.083 | 2.11 |
| 4" | 103 | 393 | 178.3 | 4.500 | 114.30 | 0.083 | 2.11 |
| Standard : | UL797 & ANSI C80.3 / CSA Standard C22.2 No.83.1-07 | ||||
- Length: 10Ft (3.05m) + 1/4" (6mm)
- Outside Diameter: 1/2"~2" + 0.005"(+0.13mm); 2-1/2" + 0.010"(+0.25mm);
3" + 0.015"(+0.38mm); 3-1/2"~4" + 0.020"(+0.50mm)

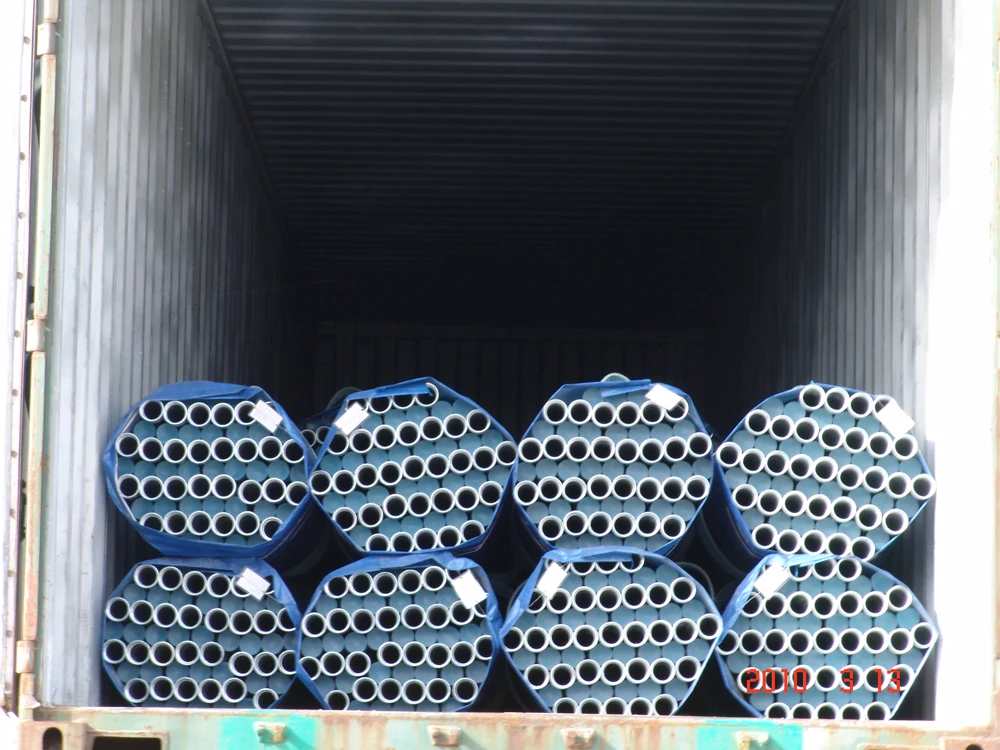

- We usually use container for marine transportation, and the conduits coverd with pvc paper then tied with steel straps.
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C.
If you have any questions, please feel free to contact us, we will give you reply as soon as possible and provide the best service for you.
Weifang East Steel Pipe Co.,Ltd, which occupies about 254,000 square meters, has a total capital of USD80 million and annual comprehensive output of 200,000 tons. Now it owns 800 employees, including 300 senior/intermediate engineers and professional technicians.
Now our electrical products include Rigid Steel Conduit ,Rigid Aluminum Conduit, IMC Conduit, EMT Conduit and Conduit fittings such as elbow, nipple, coupling, etc., and our products have been exported to more than 51 countries in the world, including North America, Middle America, South America, Asia, Middle East, Europe, etc. We are always appreciated by our clients for good quality and excellent services.
Fast Facts About Weifang East Steel Pipe Co.,Ltd.
- The largest rigid steel conduit producer in China
- The only producer of Hot Dip Galvanized EMT conduit in the world.
- The professional manufacturer of conduit accessories in China
Q1. Can I have a sample order for test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for production?
A: We don’t have any MOQ limit. But as for our steel pipe product, we usually use container transport for lower freight. In the case of express delivery, high freight charges will be generated.
Q3. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q4. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Also, if you have any questions or dissatisfaction, please feel free to contact us. We will serve you as soon as possible and give you a satisfactory solution.
