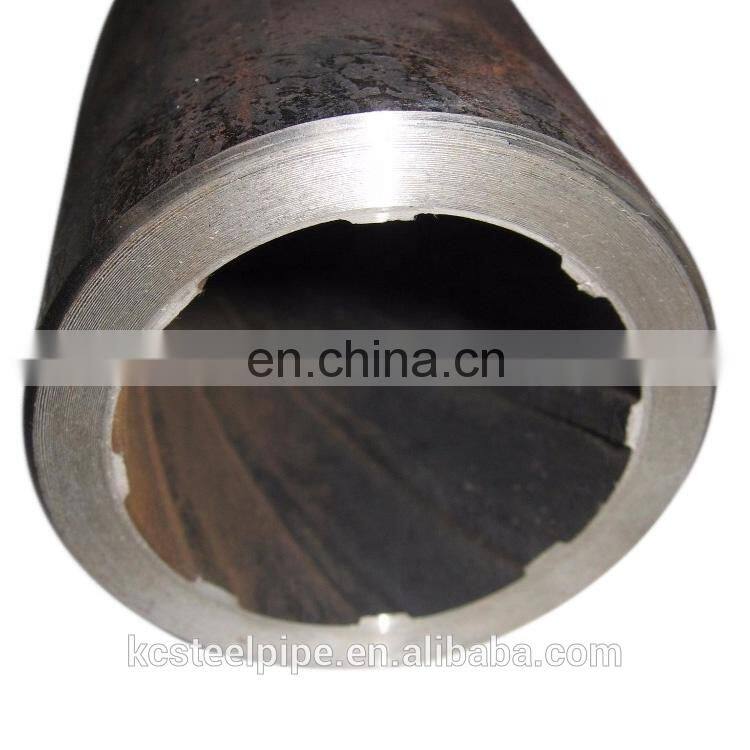

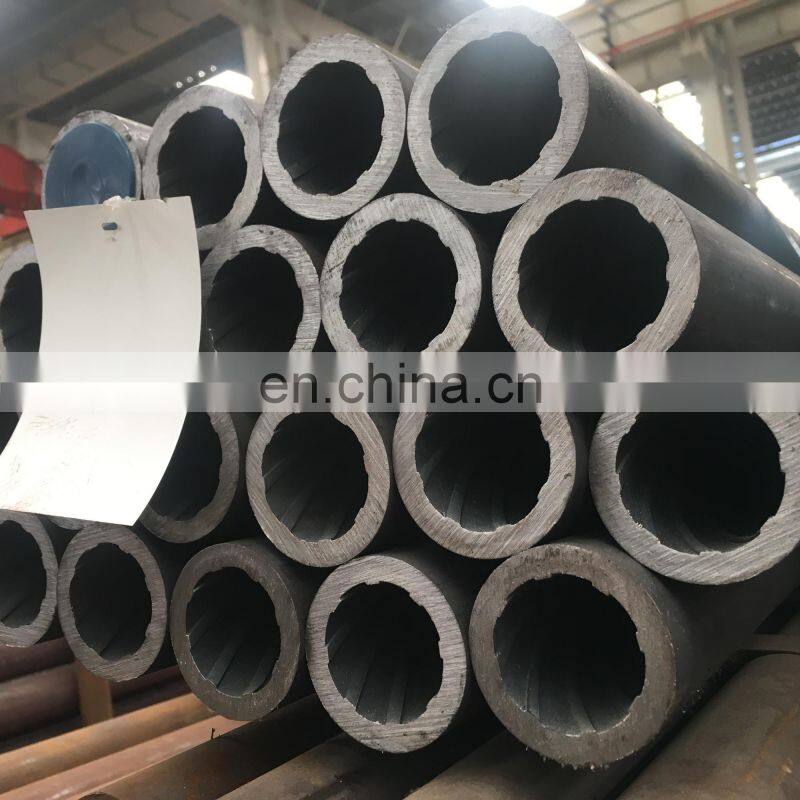

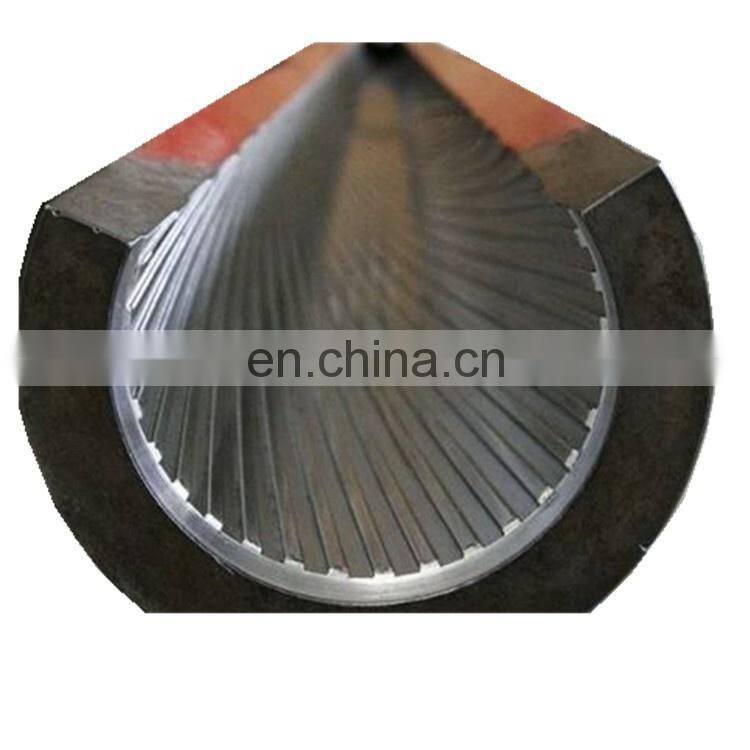

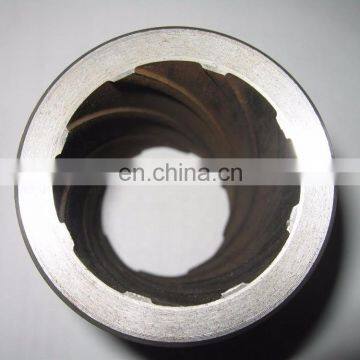

Rifled pipe p22 semaless steel inner eight ribs boiler pipe
OD:6-610mm
WT:1.24-60mm
Length:5.8m,6mm ,12m fixed or random as your request
Moq:5tons
Delivery Time:20days or according to your quantity
Product name |
Rifled pipe p22 semaless steel inner eight ribs boiler pipe |
Standard |
GB JIS ASTM AISI DIN ect |
Material |
15CrMo 12Cr1MoV Cr5Mo 27SiMn 16Mn ect |
Thickness |
1-100mm |
Schedule |
SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40S,SCH40,STD, SCH80,SCHXS,SCH160,SCHXXS,ect |
Outer diameter |
6-820 mm |
Length |
5.8m 6m 12m or as customer demand |
Used area |
Petroleum,chemical,power, gas, water, metallurgy, shipbuilding, construction, etc Or as customer demand |
Package |
In bundles, Varnish coating, Ends can be beveled or square cut, End capped |
Certification |
ISO9001.2000, PED, API, Mill Test Certificate |
Thirdparty inspection |
OMIC,SGS, as customer demand |
Remark |
We can customer made for special requirement |
Chemical properties (%) | ||||||||
Material |
C |
Si |
Mn |
P |
S |
Mo |
Cr |
|
|
% |
% |
% |
% |
max |
% |
max |
|
A 335 Grade P1 |
0,10 - 0,20 |
0,10 - 0,50 |
0,30 - 0,80 |
0,025 |
0,025 |
0,44-0,65
|
|
|
A 335 Grade P5 |
max. 0,15 |
max. 0,50 |
0,30 - 0,60 |
0,025 |
0,025 |
0,45-0,65 |
4,00-6,00
|
|
A 335 Grade P11 |
0,05 - 0,15 |
0,50 - 1,00 |
0,30 - 0,60 |
0,025 |
0,025 |
0,44-0,65 |
1,00-1,50
|
|
A 335 Grade P12 |
0,05 - 0,15 |
max. 0,50 |
0,30 - 0,61 |
0,025 |
0,025 |
0,44-0,65 |
0,80-1,25 |
|
A 335 Grade P22 |
0,05 - 0,15 |
max. 0,50 |
0,30 - 0,60 |
0,025 |
0,025 |
0,87-1,13 |
1,90-2,60 |
|
Mechanical properties | |||
Material |
Tensile N/mm2 |
Strength Min. N/mm2 |
Yield % min. |
A 335 Grade P1 |
min. 380 |
205 |
30 |
A 335 Grade P5 |
min. 415 |
205 |
30 |
A 335 Grade P11 |
min. 415 |
205 |
30 |
A 335 Grade P12 |
min. 415 |
205 |
30 |
A 335 Grade P22 |
min. 415 |
205 |
30 |
