Cold Drawn High Precision Seamless Steel Tube AISI 1045

Cold Drawn High Precision Seamless Steel Tube AISI 1045 photo-1

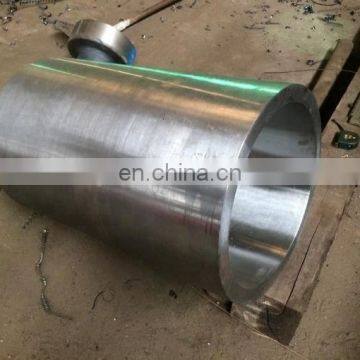

Cold Drawn High Precision Seamless Steel Tube AISI 1045 photo-2

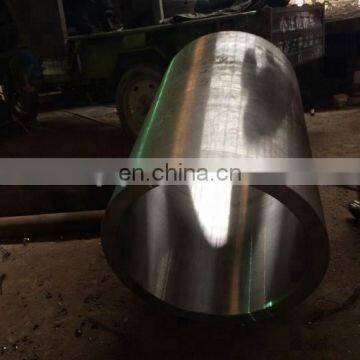

Cold Drawn High Precision Seamless Steel Tube AISI 1045 photo-3
Cold Drawn High Precision Seamless Steel Tube AISI 1045 photo-4

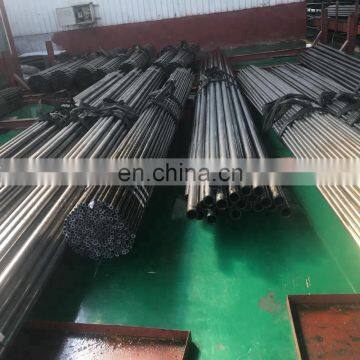

Cold Drawn High Precision Seamless Steel Tube AISI 1045 photo-5

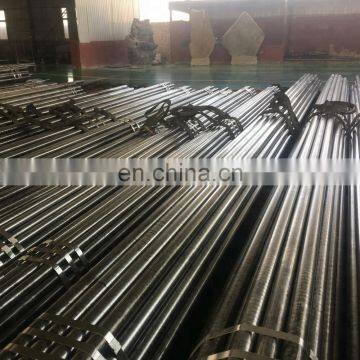

Cold Drawn High Precision Seamless Steel Tube AISI 1045 photo-6
US$ 778 - 998 MOQ: 5 Tons
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Certification:
Other
Thickness:
3, 9
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/tianjin/qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Certification Other
Thickness 3, 9
Application Structure Pipe
Technique Cold Drawn
Alloy Or Not Non-alloy
Outer Diameter 15 - 40 mm
Secondary Or Not Non-secondary
Section Shape Round
Product Description

AISI 1045 CARBON STEEL.

AISI 1045 is a medium carbon, medium tensile steel supplied as forged or normalized. This steel shows reasonable strength and toughness. AISI 1045 will through harden to 2.5” (63mm) with a tensile strength of 66-120 Ksi (620-850 MPa)

AISI 1045 is a versatile medium carbon engineering steel that can be through hardened to, as well as being flame or induction hardened. The steel can be readily welded and machined providing correct procedures are followed.

CHEMICAL ANALYSIS OF AISI 1045
Carbon 0.43 – 0.50
Manganese 0.60 – 0.90 max
Phosphorus 0.040 max
Sulfur 0.050 max

APPLICATIONS

This grade of steel is used for axles, bolts, forged connecting rods, crankshafts, torsion bars, light gears, guide rods etc.

Dimensions Of AISI 1045
Process
Outer Diameter
Wall Thickness
Length
Cold Drawn
1/4 – 16 Inch
1/50 – 1 5/8 Inch
12000 mm max
Cold Rolled
1/4 – 8 1/2 Inch
1/50 – 1 1/2 Inch
12000 mm max
Hot Rolled
1 1/2 – 30 Inch
1/8 – 8 Inch
12000 mm max
Mechanical Properties Of Aisi 1045
Condition
 Yield  Strength (Mpa)
Tensile Strength  (Mpa)
Elongation A%
Hardness B
HF
310 min
517 min
15 min
80
CW
552 min
621 min
5 min
90
SR
483 min
552 min
8 min
85
A
241 min
448 min
20 min
72
N
331 min
517 min
15 min
80
Detailed Images

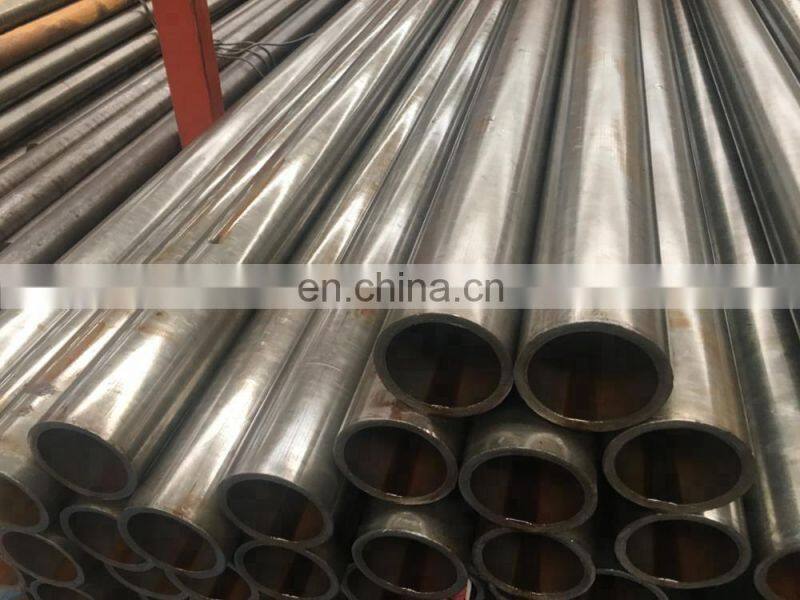

COLD DRAWN Precision AISI 1045 STEEL TUBE

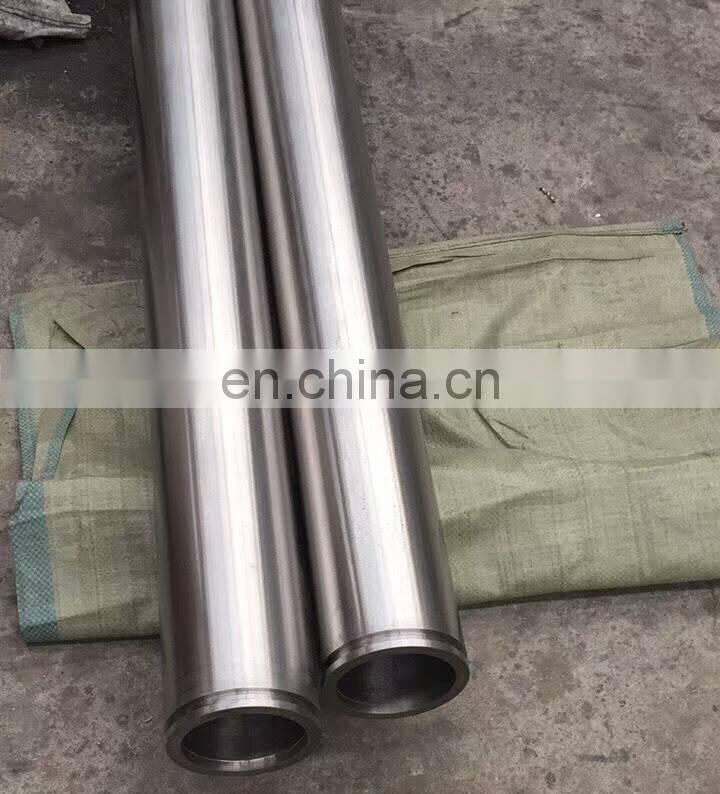

AISI 1045 HONED TUBE

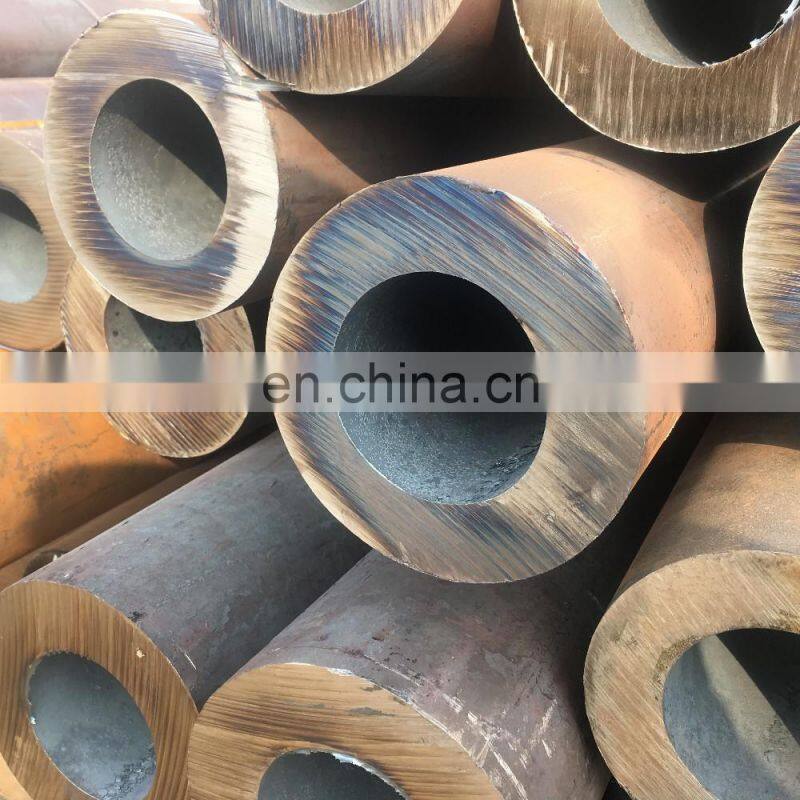

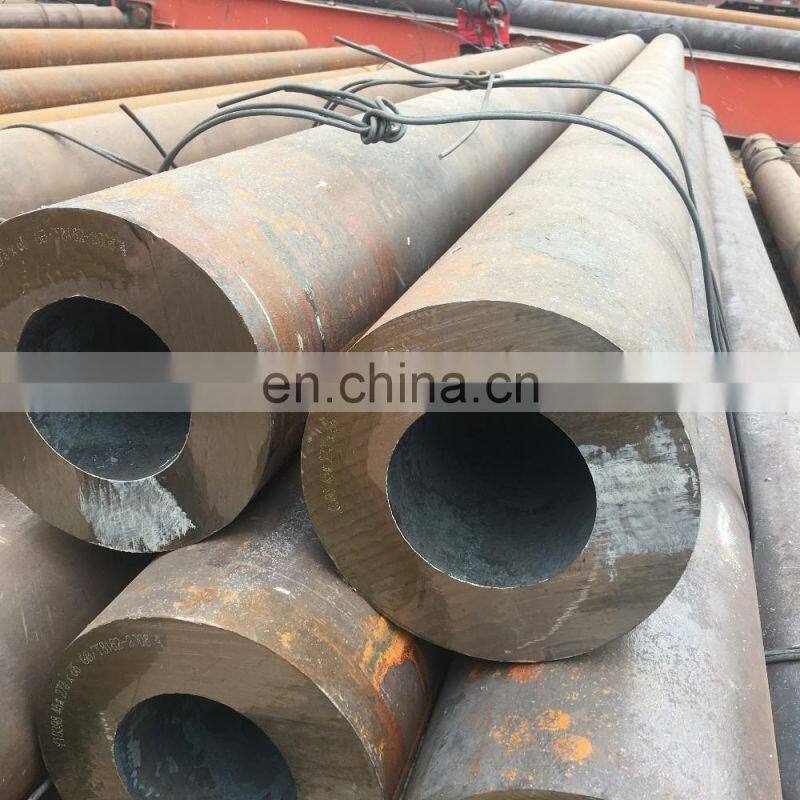

HOT ROLLED AISI 1045 STEEL PIPE
