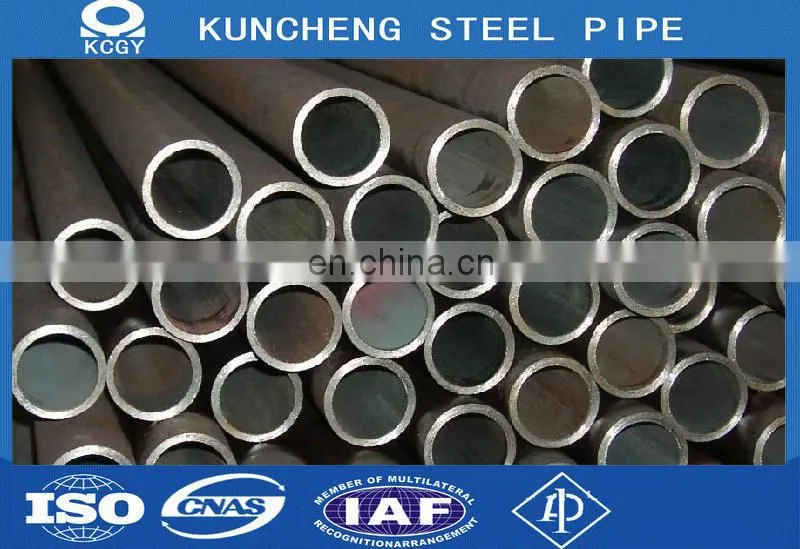

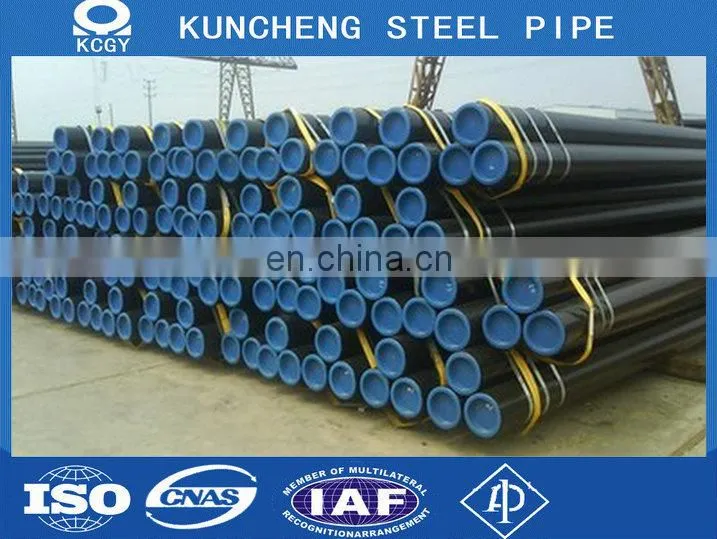

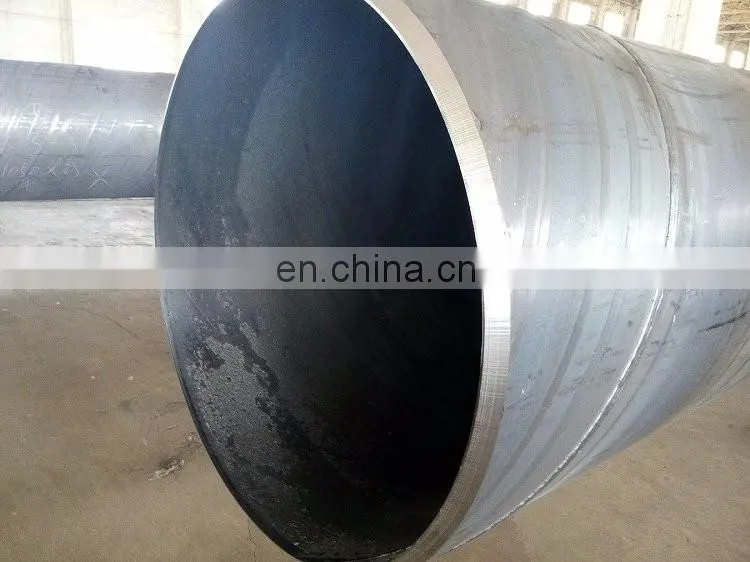

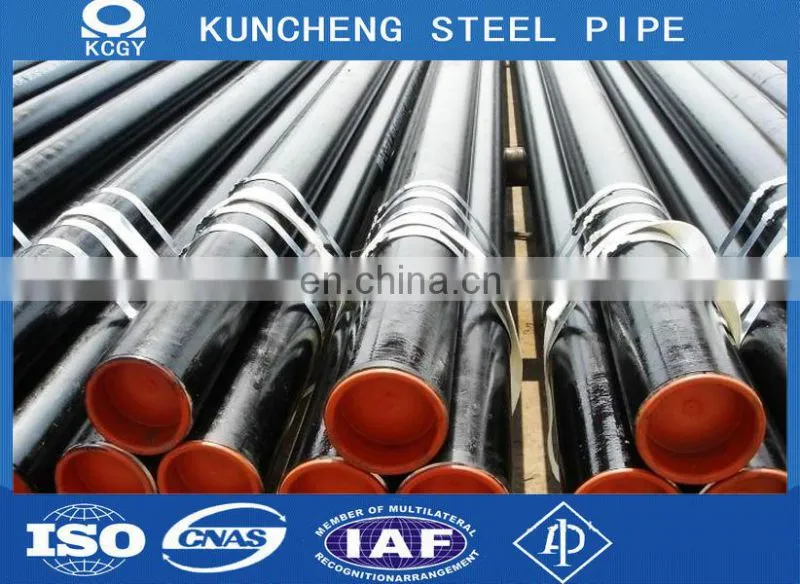

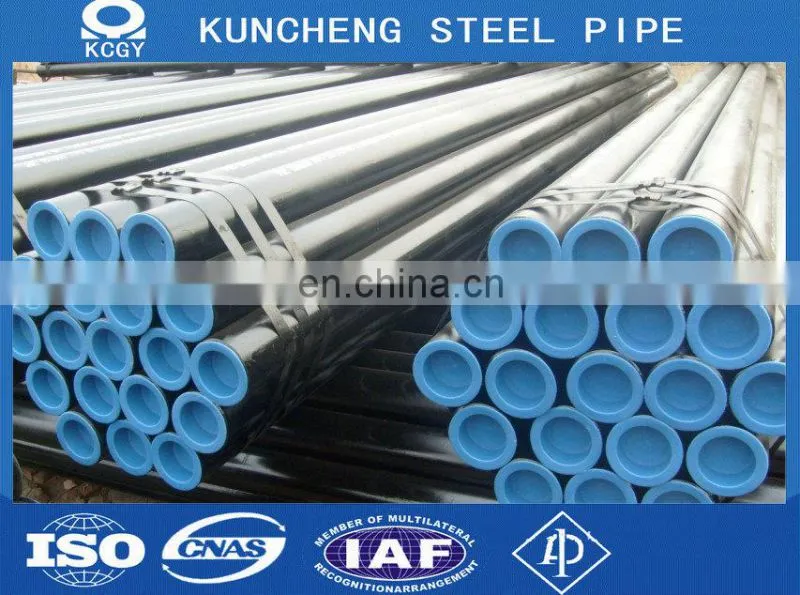

Grade P235TR1 Din St37 (1.0254) Seamless Steel Tube for Pressure Purposes
US$ 658 - 786
MOQ: 5 Tons
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Certification:
CE
Thickness:
2, 50
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/tianjin/qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chrome Plated Steel JIS S20C S45C Skiving Honed TubeUS$ 650 - 999MOQ: 25 Tons -
EN 10216 Hot Rolled P235GH Boiler Tube 1.0345 Seamless Steel TubingUS$ 800 - 1,200MOQ: 25 Tons
-
S45C,SAE1045,C45,CK45 ,ST45 Round Hollow Section Ms Pipe Seamless TubeUS$ 420 - 819MOQ: 2 Tons
-
SA179 Ms Seamless Tube,Ms Precision Pipe for Boiler TubeUS$ 500 - 750MOQ: 5 Tons
-
Material Chrome ASTM A295 Grade 52100 Seamless Bearing Steel Tube / PipeUS$ 1,200 - 1,256MOQ: 10 Tons
Place of Origin
Shandong, China
Certification
CE
Thickness
2, 50
Surface Treatment
Other
Technique
Hot Rolled
Alloy Or Not
Non-alloy
Outer Diameter
20 - 1219 mm
Secondary Or Not
Non-secondary
Special Pipe
Thick Wall Pipe
Section Shape
Round
Product Description
P235TR1 ( 1.0254 )
| Grade : | P235TR1 | ||
| Number: | 1.0254 | ||
| Classification: | Non-alloy quality steel | ||
| Standard: |
|
||
| Equivalent grades: | Go here |
Out Diameter |
DN10~DN1200,1/8"~100",6mm~2400mm |
Wall Thickness |
SCH5~SCH160,STD,XS,XXS,1mm~120mm |
Length |
12m,11.8m,6m,5.8m,or as customers required |
Surface treatment |
Black painting, black varnish, transparent oil, hot galvanized, 3PE,epoxy coating,BE,PE.etc. |
Technique |
Seamless & welded |
Contact |
If you have any questions, please feel free to contact me. |
Chemical composition % of steel P235TR1 (1.0254): EN 10216-1-2014
| C | Si | Mn | Ni | P | S | Cr | Mo | V | Nb | Ti | Cu | - |
| max 0.16 | max 0.35 | max 1.2 | max 0.3 | max 0.025 | max 0.02 | max 0.3 | max 0.08 | max 0.02 | max 0.01 | max 0.04 | max 0.3 | Cr+Cu+Mo+Ni < 0.7 |
Mechanical properties of steel P235TR1 (1.0254)
| Rm - Tensile strength (MPa) | 360-500 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 60 |
| ReH - Minimum yield strength (MPa) | 235 | 225 | 215 |
| A - Min. elongation at fracture (%) longitud., | 25 |
| A - Min. elongation at fracture (%) transverse, | 23 |
Equivalent grades of steel P235TR1 (1.0254)Warning! Only for reference
| EU EN |
China GB |
|
| P235TR1 |
|
Material
