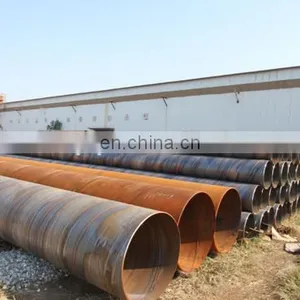

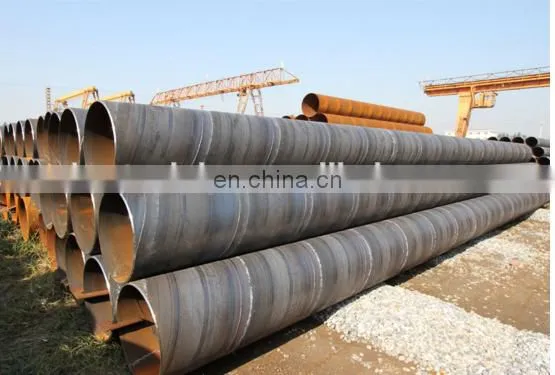

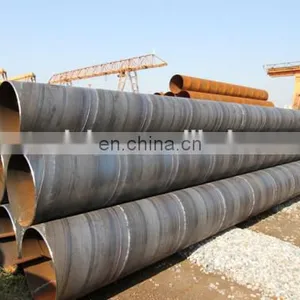

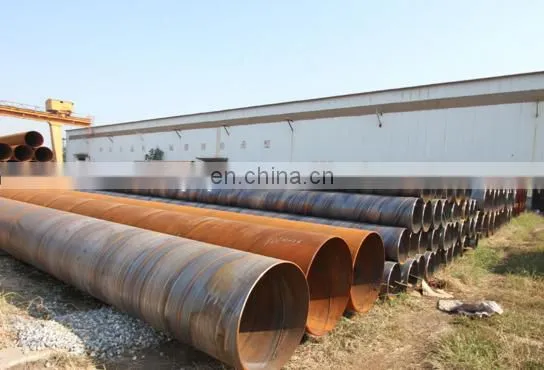

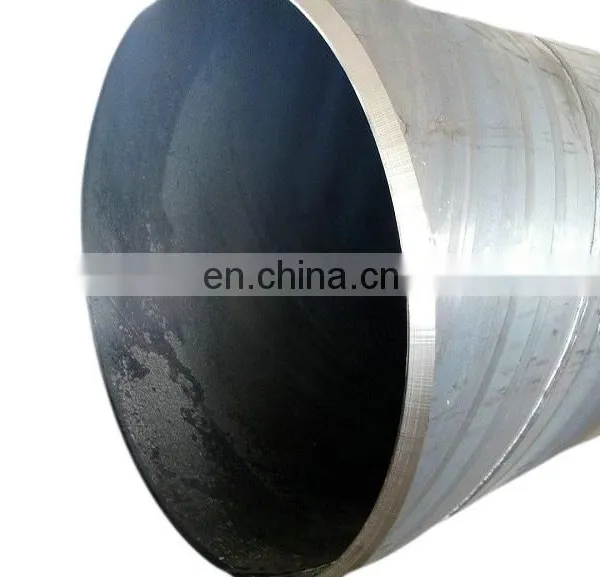

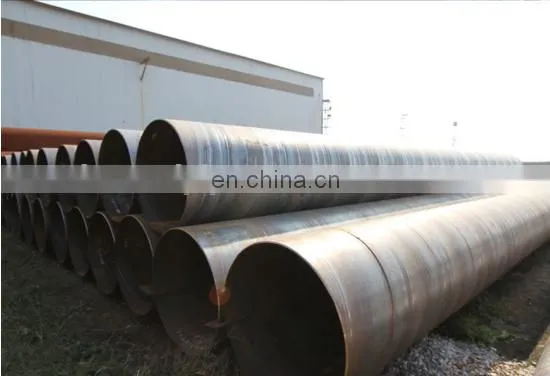

Spiral Submerged- Arc Welded Steel Pipe
SSAW steel pipe(Spiral Submerged- Arc Welded Steel Pipe)is also known as the SAWH Steel pipe(Submerged-arc Welded Helical pipe.
Generally used: welded pipes conveying fluid, metal structures, pile and so on. Our products are widely used in water engineering, petrochemical industry, chemical industry, power industry, agricultural irrigation, urban construction, is one of 20 key product of development. For the transport of liquids: water supply, drainage. For gas transportation: gas, steam, liquefied petroleum gas. For structural purposes: as piling pipe, for bridges; piers, roads, buildings and other structures tube.

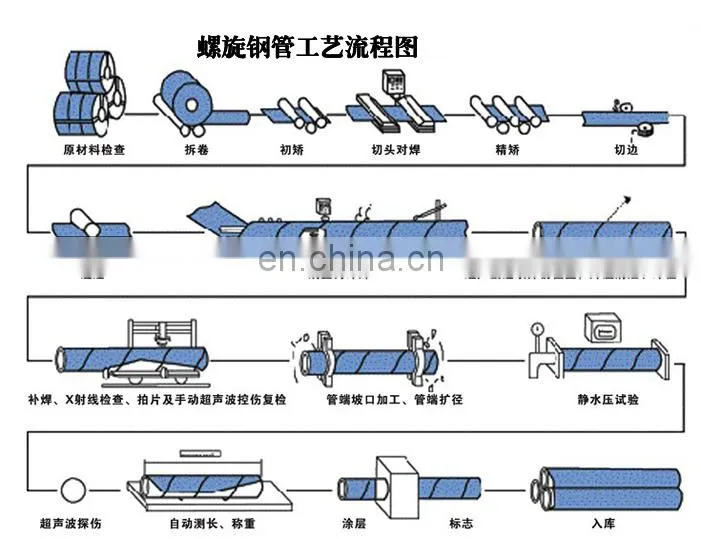

The SAWH steel pipe is the spiral submerged arc welding steel pipe for short. It is made adopting sumberged arc welding technique and comes with a welding seam.
Threeway steel has overwhelming advantages over cometiotors in manufacturing this SAWH steel pipe.We have 10 traditional one-step production lines and 1 two-step production line that enabels to produce finely pre-welded SAWH steel pipe of 360000 tons per year,and we have become the leading enterprise in this industry in virtue of large productivity and advanced technical equipment.
Standard:API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS, JIS, IS
Certificate:EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
Out Diameter:219.1 mm - 2540mm (8"-100")
Wall Thickness:3.2mm - 25.4mm
Length:6 - 22 m
Steel Grade:API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360 Grade 43, Grade 50
EN:S275, S275JR, S355JRH, S355J2H
| Surface:Fusion bond Epoxy | |
| coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil | |
| coating as per customer’s requirement |
| Test:Chemical Component Analysis, | |
| Mechanical Properties (Ultimate tensile strength, Yield strength, | |
| Elongation), Technical Properties (Flattening Test, Bending Test, Blow | |
| Test, Impact Test, Exterior Size Inspection, Hydrostatic Test, X-ray | |
| Test |
Mill Test Certificate:EN 10204/3.1B
Standard |
API 5L, ASTM A252/A134, ASTM A106-2006, ASTM A213-2001, ASTM A312- 2001, ASTM A53-2007, EN10217, EN10219, BS EN 10255,BS EN 10226, BS 1387, BS 4568, GB/T3901GB/t9 |
Pipe appearance |
Round pipe, Square pipe, Rectangular pipe |
Welded type |
Electric Resistance Welding (ERW) Longitudinal Submerged Arc Welding Pipe (LSAW) Spirally Submerged Arc Welding Pipe (SSAW) |
Outside diameter |
ERW 1/2'- 48' LSAW 1/2'- 60' SSAW 4'-80' |
Pipe thickness |
SCH5S, SCH10S, SCH20S, LG, SCH20, SCH30, SCH40, SCH60, XS, SCH80, SCH100, SCH140, SCH160, XXS |
Length |
5.8m 6m Fixed, 12m Fixed, 2-12m Random. |
Material |
API5L, Gr,A&B, X42, X46, X52, X56, X60, X65, X70, X80 ASTM A53 Gr,A&B, ASTM A106 Gr,A&B, ASTM A135, ASTM A252 20#. Q235, Q345. |
Surface treatment |
Black Painted, Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation . |
Marking |
Standard marking, or according to your request. Marking Method: Spray white paint |
Packing |
Bundles or In bulk. bundled pipes with two slings at the both end for easy loading and discharging, |
End |
Bevel end(>2”), Plain (≤2”),with plastic cap, with screwed and socket. |
Company introduction: Liaocheng City Kuncheng Steel Pipe Co., Ltd. is an industrial and trading company.
Products introduction: We mainly produce and deal with carbon steel pipes and alloy steel pipes. In addition, steel rods, steel sheets, steel building materials and machinery parts are also our general trading products. We are not only a manufacturer but also a stock keeper. We normally keep more than 5,000 tons of pipes in various sizes and standards. Our stock pipe size ranges from 20mm to 406mm in outside diameter and from 2mm to 70mm in wall thickness.
Export to: With competitive price and excellent quality our products have been exported to America, Japan, Greece, Russia,Spain, Chile and many other countries. I hope we can establish business relationship with you and expand your business scale. we are professional and experienced supplier of steel products in china. We will provide you with high quality and low price, and we also offer good service. If our products can meet your needs, please contact us freely. We are looking forward to cooperating with you, and welcome your inquiry!
