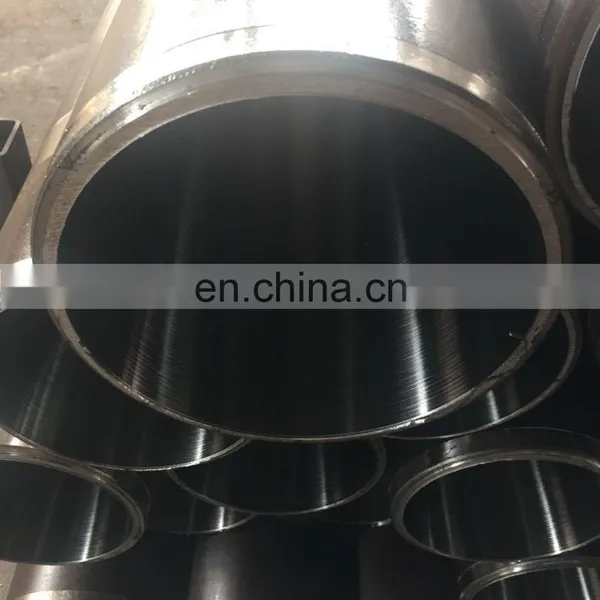

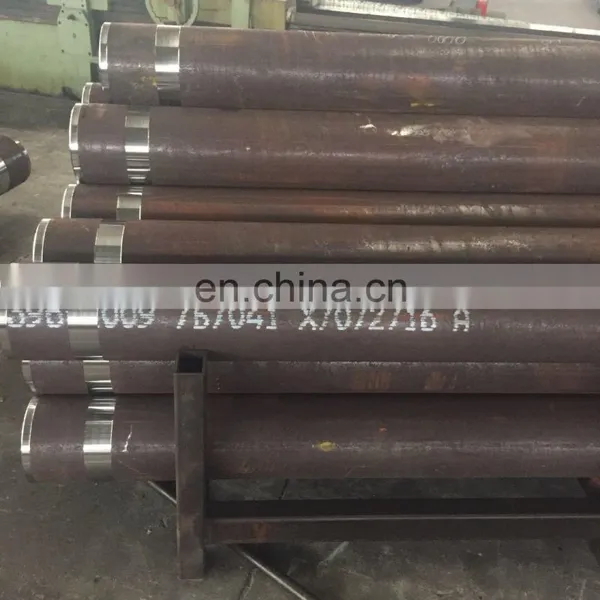

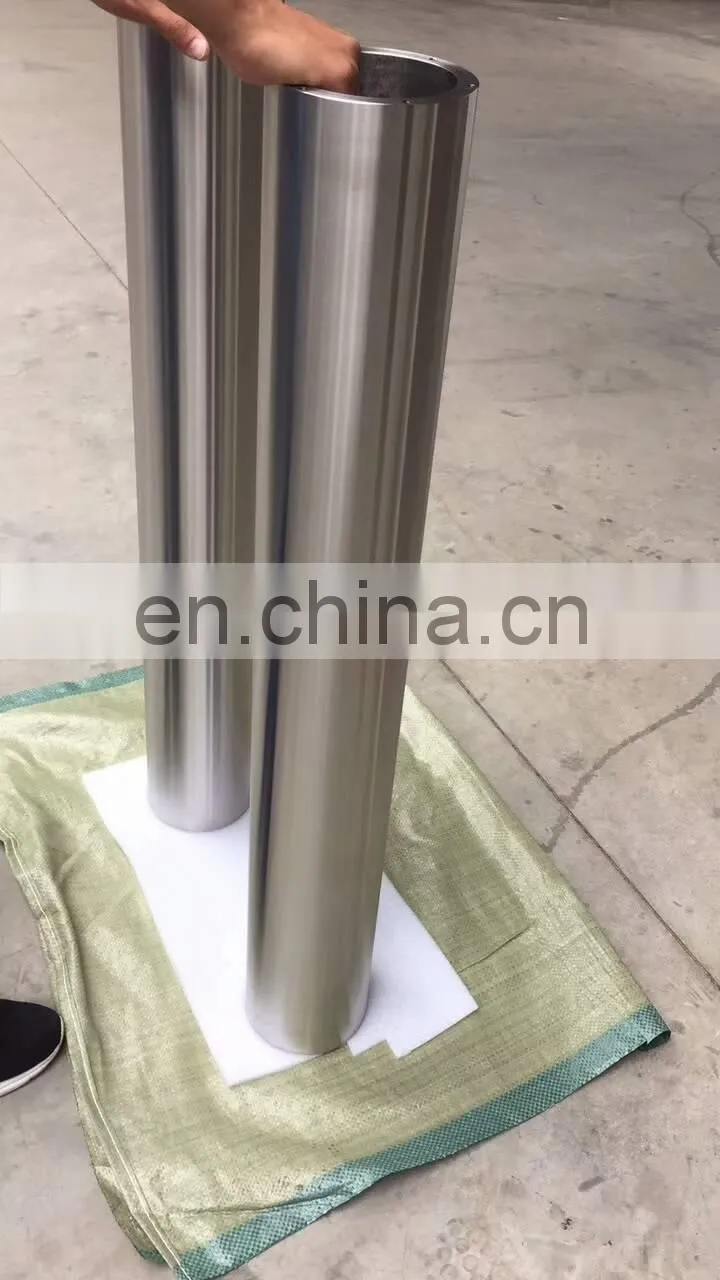

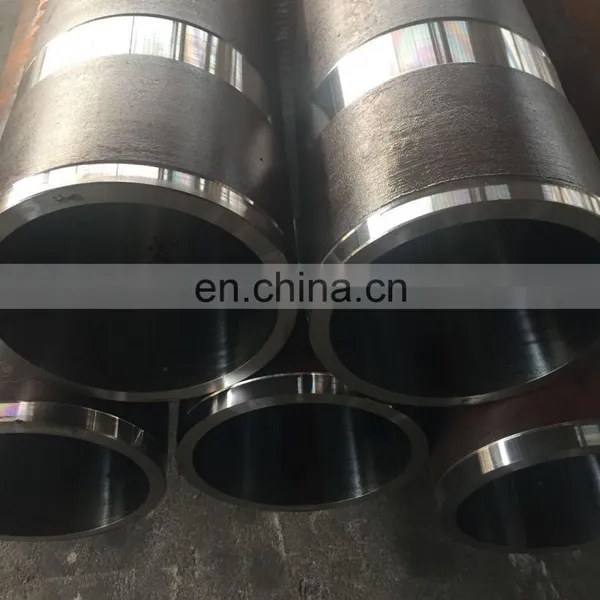

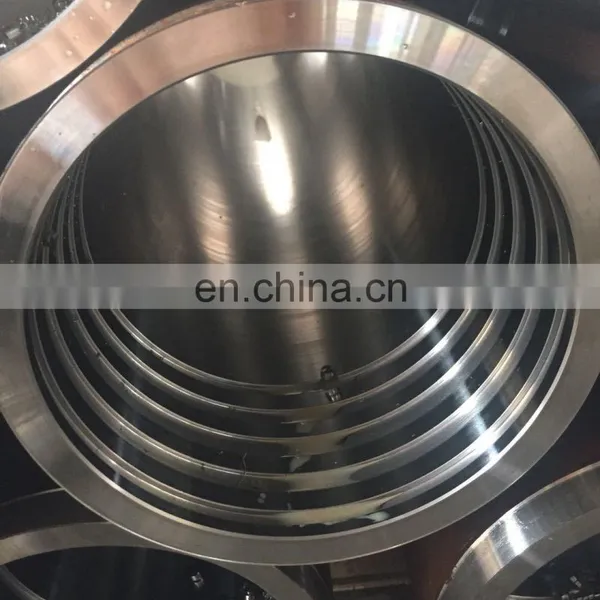

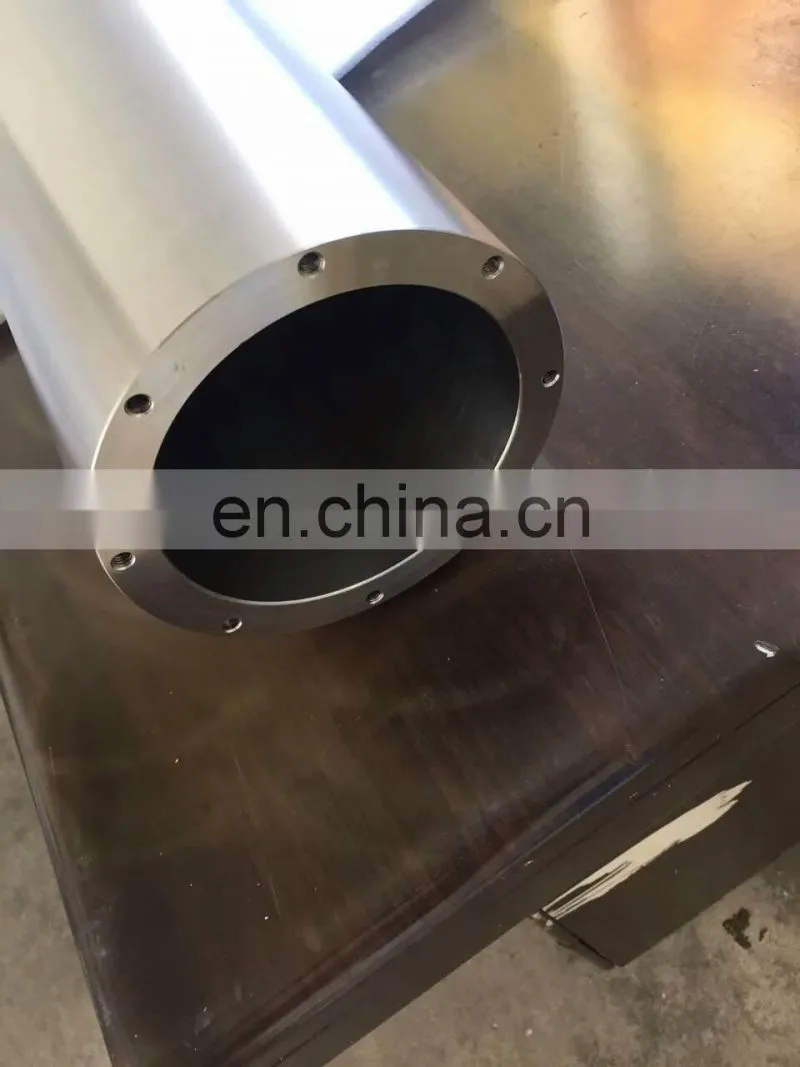

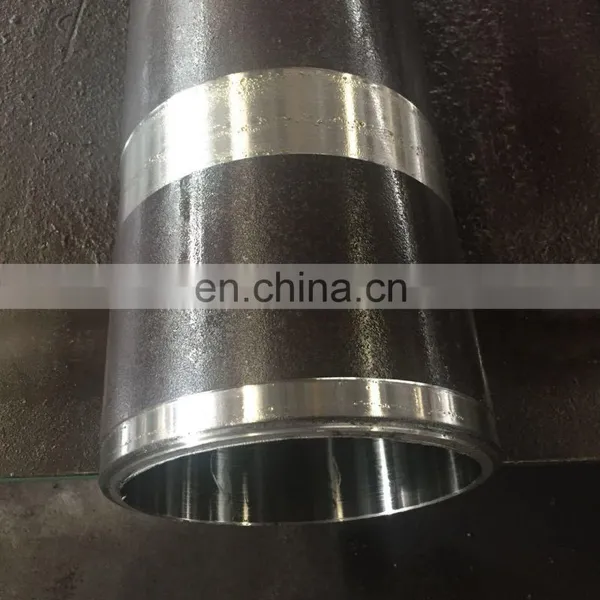

DOM CDS St52-3 BK+S (DIN 2391) Seamless Honed Tube for Dump Hoist
US$ 800 - 2,260
MOQ: 25 Tons
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Certification:
CE
Thickness:
0.5, 5
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/tianjin/qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
S275,E235,SS400 Carbon Steel Galvanized ERW Square Rectangular Steel Tube/PipeUS$ 450 - 735MOQ: 3 Tons -
JIS G3445 STKM12C/STKR400/STK490 High Quality Carbon Steel ERW Square RHS TubeUS$ 420 - 735MOQ: 3 Tons
-
Factory Price ERW Stainless Steel Welded Square Pipe 304 201US$ 550 - 950MOQ: 5 Tons
-
20# Welded Carbon Steel Galvanized Square TubeUS$ 350 - 800MOQ: 5 Tons
-
Low Carbon ERW Galvanized Square Steel PipeUS$ 350 - 1,200MOQ: 5 Tons
Place of Origin
Shandong, China
Certification
CE
Thickness
0.5, 5
Application
Hydraulic Pipe
Technique
Cold Drawn
Alloy Or Not
Non-alloy
Outer Diameter
50 - 273 mm
Secondary Or Not
Non-secondary
Section Shape
Round
Product Description
Specifications/Special Features:
Usages: applicable to hydraulic pressure, pneumatic cylinder.
Quality standard: DIN 2391, DIN EN 10305
Quality standard: DIN 2391, DIN EN 10305
E355+SR (EN 10305-1) / St52-3 BK+S (DIN 2391) The seamless tube for hydraulic cylinders, obtained from high quality cold drawn tubes, available in a wide dimensional range.
Process: raw materials-cold drawn/rolled-heat treatment (BKS)
Dimensions:
Outer diameter: 6-720mm
Wall thickness: 5-40mm
Length: not more than 12 meters
Delivery condition: cold worked, stress relieved, annealed, normalized
Packing:
With anti-rust oil on inner diameter of each pipe, tube caps on both ends, hexagonal bundles of max 3000kg with several steel strips, nylon bag and waterproof paper packing each bundle
Of course, customers can customize other packing way.
Protection:
AISI 1020 honed tube is supplied with caps at the ends and protected internally and externally with oil that provides temporary protection against oxidization
Special surface protection can be agreed upon
Our services:
Third party inspection acceptable
Certifications: SGS, BV
Process: raw materials-cold drawn/rolled-heat treatment (BKS)
Dimensions:
Outer diameter: 6-720mm
Wall thickness: 5-40mm
Length: not more than 12 meters
Delivery condition: cold worked, stress relieved, annealed, normalized
Packing:
With anti-rust oil on inner diameter of each pipe, tube caps on both ends, hexagonal bundles of max 3000kg with several steel strips, nylon bag and waterproof paper packing each bundle
Of course, customers can customize other packing way.
Protection:
AISI 1020 honed tube is supplied with caps at the ends and protected internally and externally with oil that provides temporary protection against oxidization
Special surface protection can be agreed upon
Our services:
Third party inspection acceptable
Certifications: SGS, BV
| Size | ||||||
| Processing | Cylinder diameter |
Length /mm | Straightness | Size accuracy |
Wall thickness/mm |
Inner bore roughness |
| Cold drawn/rolled | ID28-400 | ≤12M | 0.3-1.0m m/m | H8-H11 | ±5% | 0.4-1.6um |
| Honed/SRB | ID30-800 | ≤12M | 0.3-1.0m m/m | H8 | ±5% | 0.1-0.4um |
| Technical Specifications | |
| Steel Grade | E355 (EN 10305-1) / St52-3 (DIN 2391) |
| Heat Treatment | +SR (EN 10305-1) / BK+S (DIN 2391) |
| Inside diameter range | Ø40 to Ø250 mm |
| Tolerance Class | ISO H8 |
| Standard Lengths | 5 – 8 meter (can be supplied in special lengths upon request.) |
| Inside Surface Roughness | Ra ≤ 0.22 µm |
| Local Deviation | max. 1 mm : 1000 mm |
| Total Deviation | Tubes with length ≤ 6 m: max. 3.5 mm : 1000 mm |
Tubes with length > 6 m: for each meter over 6 m the tolerance must be increased by 0.5 mm | |
Chemical Composition
| C | Mn | Si | P | S |
| max. 0.22 | max. 1.60 | max. 0.55 | max. 0.025 | max. 0.025 |
Mechanical Properties
| Rm – Tensile Strength (N/mm2) |
Rp0.2 – Yield Point (N/mm2) |
A5 –Elongation (min. %) |
| min. 580 | min. 435 | 10 |
Primary Competitive Advantages:
- Country of Origin
- Form A /FORE E
- Packaging
- Price
- Product Features
- Quality Approvals
- Reputation
- Service
- Small Orders Accepted
-
We are an international distributor of honed ID tubing, chrome plated OD/ID tubing, heavy wall mechanical tubing,and hydraulic fluid line tubing, DOM Steel honed tubing. All tubing can be cut to any specified length and shipped the same day. Special order sizes are available upon request.
The honed tubes suitable for various kinds of Precision Mechanical Tubes, honed cylinder tubing and Hydraulic Cylinder, Construct use Multi Joint Tubes, Steel Axis Pipe, Injection Machine and Robotic Arm.
