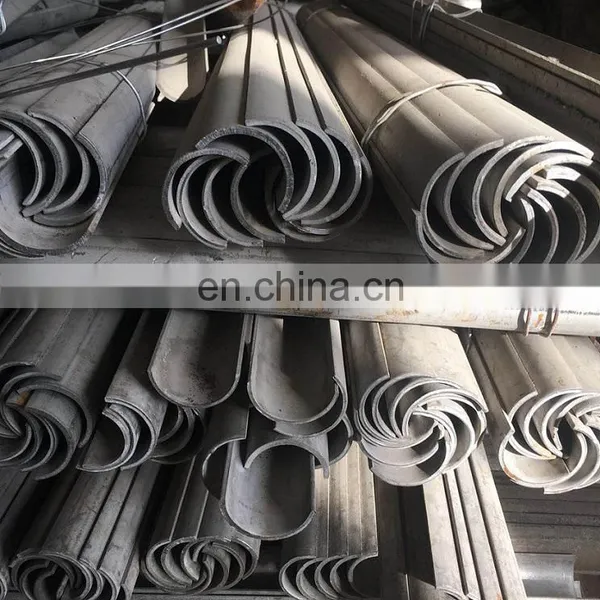

SSS321/310S Stainless Steel Steam Boiler Tube Erosion Shield
Anti wear Erosion Shield also known as anti - wear cover, anti - wear plate,
anti - wear protective tile, anti - wear cover plate, anti - corrosion cover plate,
boiler climbing tube, anti - wear pressure plate, etc.
Anti-wear tile is mainly used in the boiler superheater, reheater, economizer,
water wall pipe and other heating surface of the windward side of the pipe, and
induced draft fan will be used (consumption is very small), the main role is to
protect the boiler pipe by the wind, reduce the wear of the pipe, increase the
service life of the heating surface pipe. Anti-wear tiles are special accessories
for boilers, generally used in power station boilers, small boilers are used less,
some coal chemical industry will also be used.
ANTI-WEAR EROSION SHIELD SECTION&SPECIFICATION

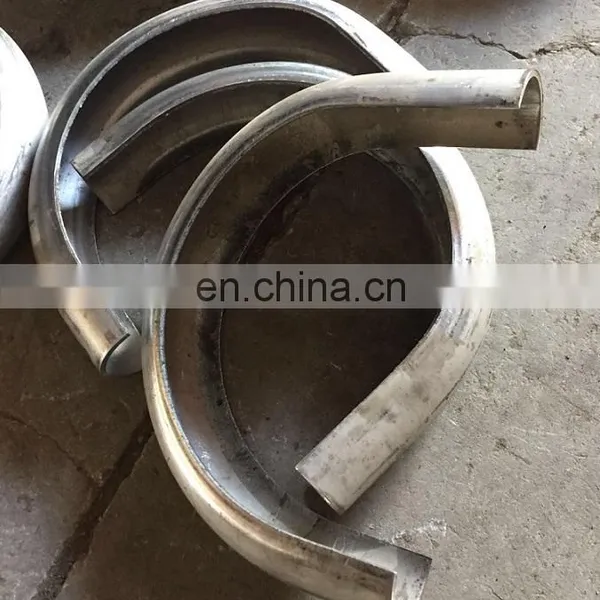

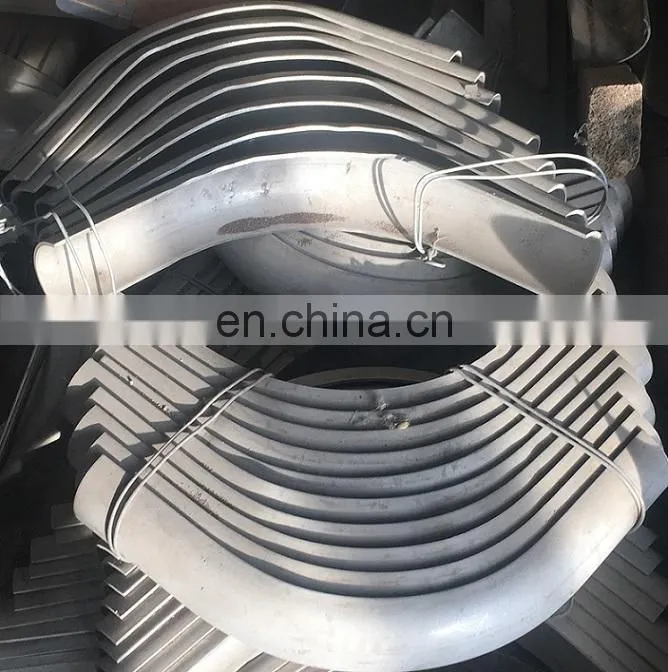

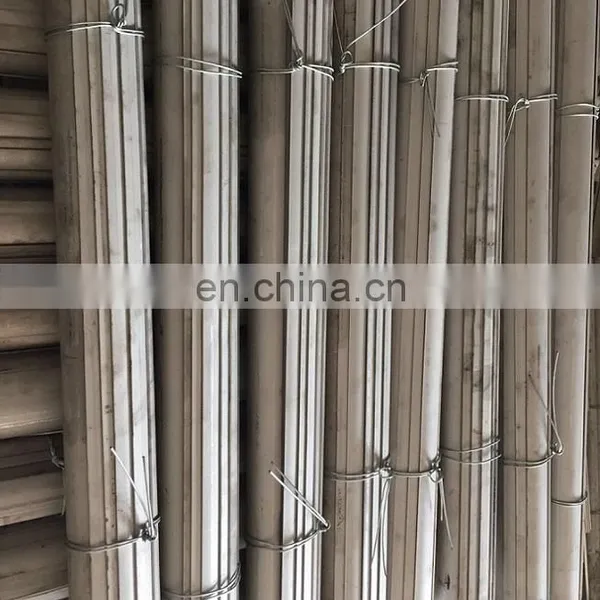

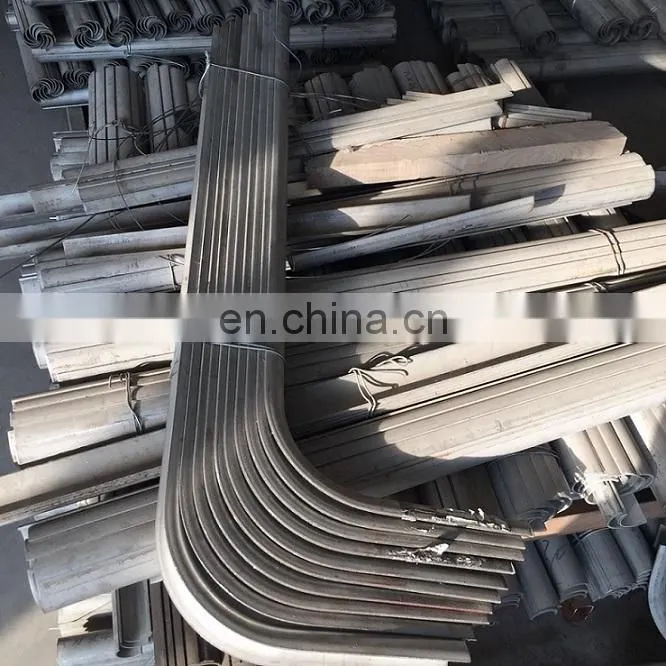

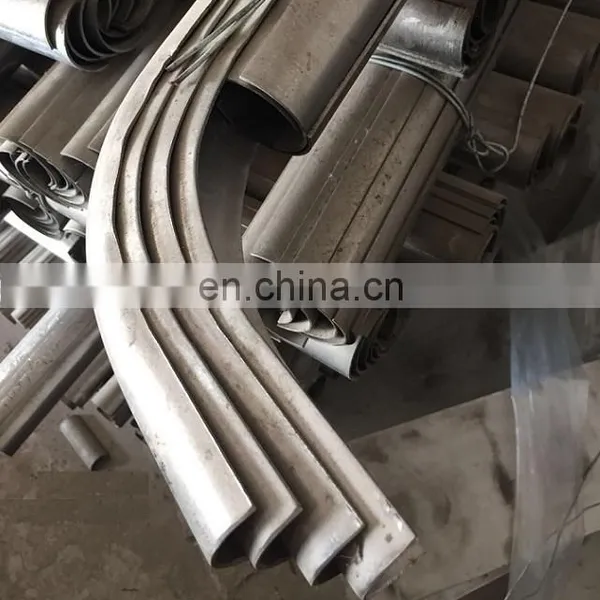

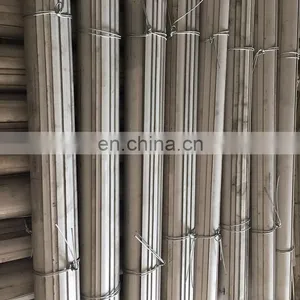

Anti wear erosion shields have mand kinds section,Such as DIRECT EROSION SHIELD,
INNER BENDING EROSION SHIELD,OUTER BENDING EROSION SHIELD,SIDE BENDING
EROSION SHIELD,S-SHAPE BENDING EROSION SHIELD ETC.

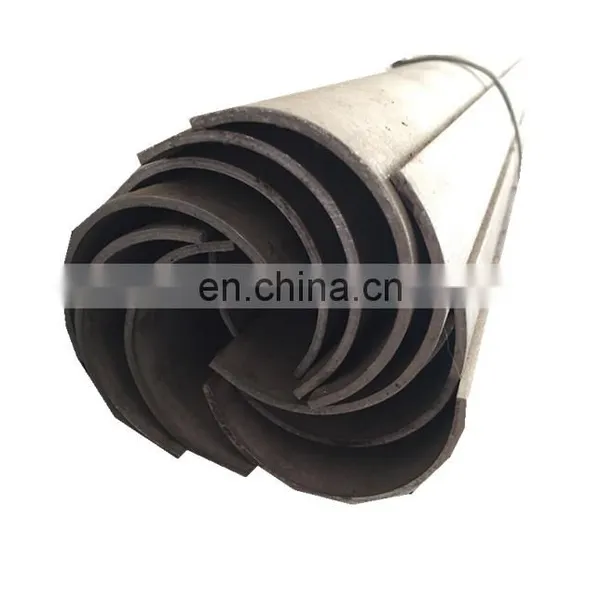

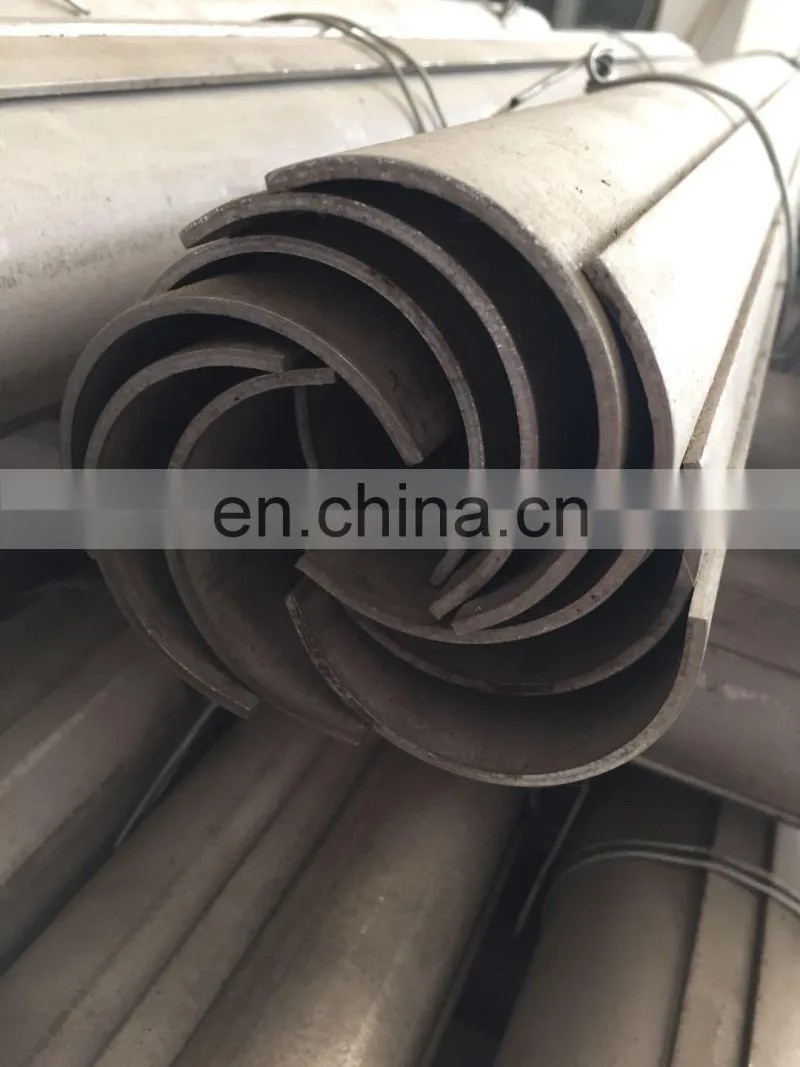

A)Semicircle section 180°/90°/45°
B)Special Section 120°-160°
C)Shape:semicircle(180deg)/(120-160deg),S shape,Linear shape/straight line shape....
D)OD:32mm,38mm,42mm,44.5mm,48mm,51mm,57mm,60mm,63.5mm,76mm,89mm......
E)TK:2mm-5mm or as the drawings required
F)Length:20mm-3000mm or as the drawings required
Anti wear erosion shields are made by stainless steel,So that erosion shield have so
high temperature resistance&corrosion resistance characteristics.
