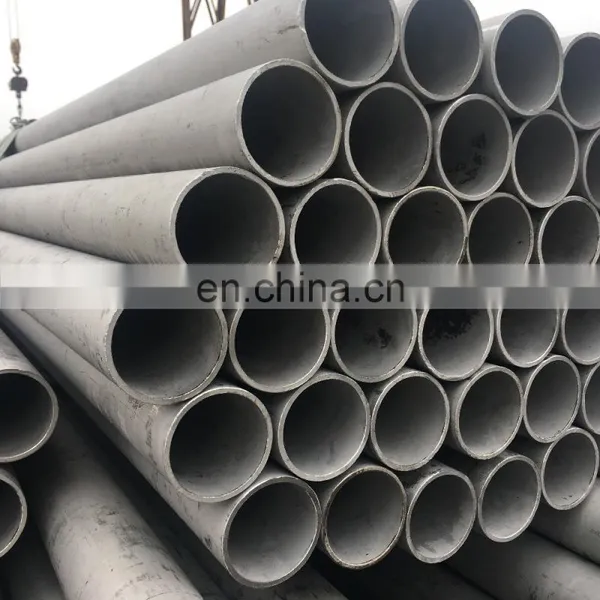

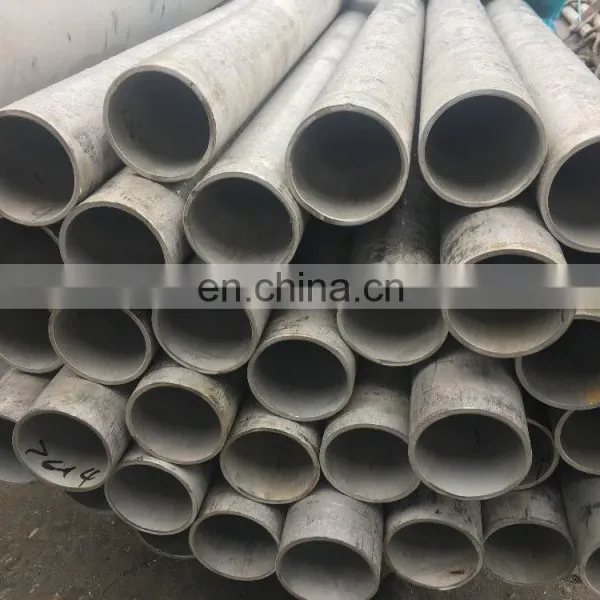

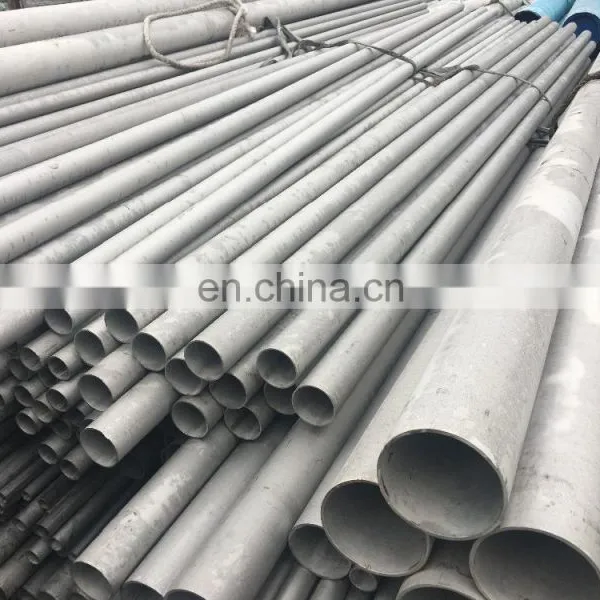

EN 1.4841 / aisi 314 Seamless Stainless Steel Pipe / Heat Resistant Seamless Stainless Steel Tube.
AISI 314 stainless steel is an austenitic stainless steel formulated for primary forming into wrought products. 314 is the AISI designation for this material. 1.4841 is the EN numeric designation. Additionally, the EN chemical designation is X15CrNiSi25-21. And the UNS number is S31400.
It has the lowest electrical conductivity relative to other wrought austenitic stainless steels in the database.
The properties of AISI 314 stainless steel include two common variations. The property values on this page show ranges across all of them. For more specific values, follow the links immediately below. The graph bars on the material properties cards further below compare AISI 314 stainless steel to: wrought austenitic stainless steels (top), all iron alloys (middle), and the entire database .
Stainless steel grade 314 can be heat treated by annealing the material at 1038-1149°C (1900-2100°F), and then quenching in water or rapidly air cooling. Grade 314 steel can be hardened only through cold working. To perform machinability of grade 314, coolant and high-speed turning tools are recommended.
After slowly heating the material to 871°C (1600°F), it should be thoroughly soaked, and then followed by quickly heating to 1093 -1232°C (2000-2250°F) , to perform forging, flanging, or working.
Grade 314 steel is widely used in the following applications:
Radiant tubes
Equipment for furnaces
Heat treatment components
Annealing and carburizing boxes
