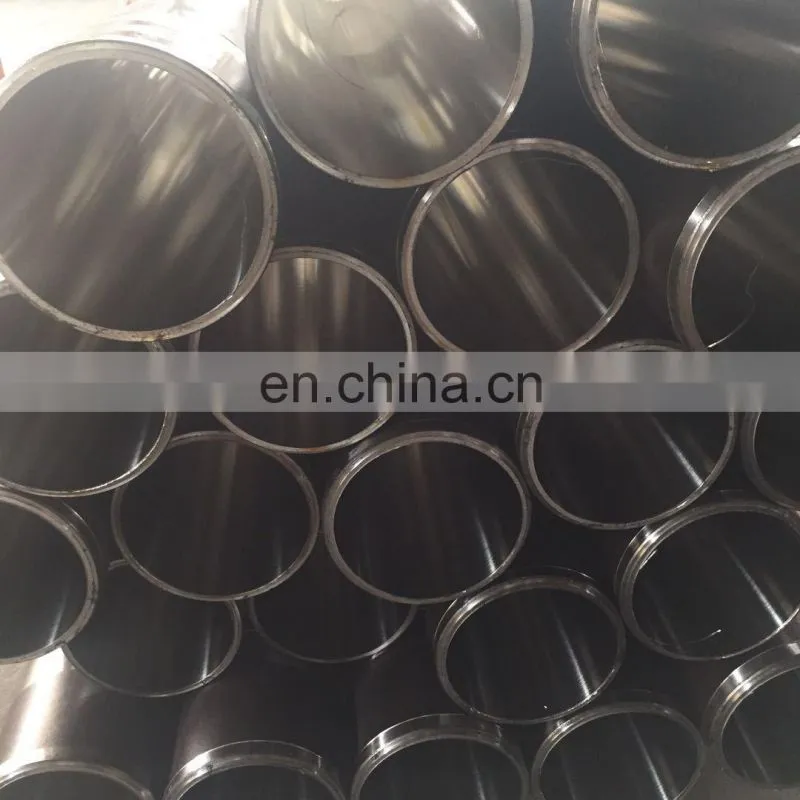

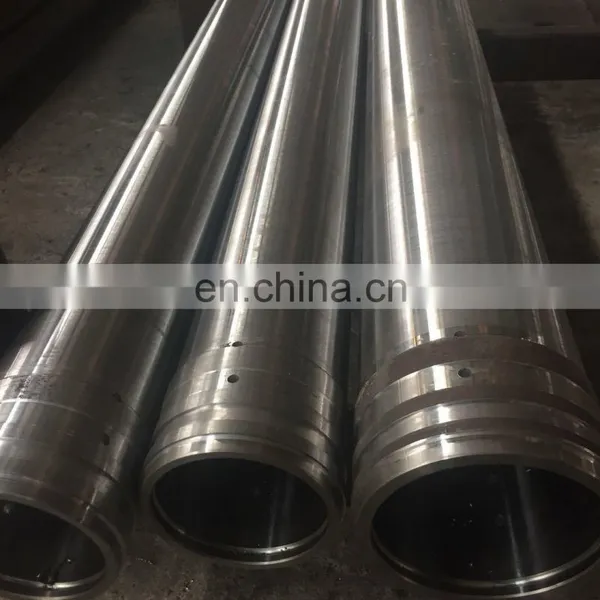

Factory price AISI 4130 hydraulic cylinder tube/seamless honing pipe
Table1
Product Name |
Aisi 4130 hydraulic cylinder tube,seamless honing pipe |
Standard |
Astm a519 |
|
Main Material |
12Cr1MoVG 15CrMoG(A335 P11,A335 P12,STBA22) 1Cr5Mo(A335P5) ,10CrMo910(A335 P22) 10Cr9Mo1VNbN(A335 T91 A335 P91) 10Cr9MoW2VNbBN(A335 T92 A335 P92) Cr9Mo(A335 P9) 13CrMo44,25CrMo,30CrMo,40CrMo |
Application |
Petroleum, chemical industry, electricity, boiler industry etc |
Feature |
Anti-high temperature, anti-low temperature, anti-corrosion |
OD |
16-824mm |
WT |
2-100mm |
Length |
5.8 Meters, 6 Meters, 11.8 meters or as requested |
Payment Terms |
TT,LC at sight |
Our products |
Stainless steel, carbon steel, alloy steel, Aluminum etc ( Pipes, plates, bars, coils, ) etc |
Table 2
Material |
4130 |
||
Chemical Composition |
Mechanical Properties(In Quenched & Tempered State) |
||
C |
0.17-0.24 |
Tensile strength(MPA) |
930 |
Si |
0.17-0.37 |
Yield strength (MPA) |
785 |
Mn |
0.40-0.70 |
Elongation(δ5/%) |
12 |
Cr |
0.80-1.10 |
Reduction in Area (ψ/%) |
50 |
Mo |
0.15-0.25 |
Impact (J) |
63 |
P |
≤0.035 |
Hardness |
≤229HB |
S |
≤0.035 |
||
Cu |
≤0.30 |
||
Ni |
≤0.30 |
||
Table 3
USA |
Japanese |
Gemany |
British |
France |
International |
Chinese |
AISI |
JIS |
EN DIN |
EN BS |
EN NF |
ISO |
GB |
4130 |
SCM430 |
25CrMo4(1.7243) |
|
------ |
30CrMo |
Packing&delivery
Company profile
Liaocheng Kuncheng Pipe Co.,Ltd is an professional china supplier of steel pipe,We specialized
in producing all kinds of steel pipes,including SS and MS steel pipe,alloy steel pipe etc,Round ,square and rectangular steel pipe,galvanized steel pipe etc.Which are all well sold in domestic
and overseas markets.We also provide all kinds of hot rolled or cold drawn steel plates,coil and other steel goods.
