Home > Instruments & Meters > Test Instrument > Test Machine > CRI-201 Common Rail Diesel Injector Tester
US$ 120 - 180
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haoshiyuan
Place of Origin:
Shandong, China
Model Number:
CRI-201
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRS-205 Common Rail Injector Testing MachineUS$ 2,500 - 3,000MOQ: 1 Set -
CR918 Common Rail Pump Test Bench Have All Function for SaleUS$ 8,000 - 10,000MOQ: 1 Set
-
New Design CR918 Common Rail Injector Test Bench for SaleUS$ 8,000 - 10,000MOQ: 1 Set
-
Haoshiyuan CR 815 Common Rail Diesel Injector Test BenchUS$ 6,200 - 8,000MOQ: 1 Piece
-
China Hot Sale CR800 Common Injector Rail TesterUS$ 350 - 500MOQ: 1 Set
Brand Name
Haoshiyuan
Place of Origin
Shandong, China
Model Number
CRI-201
Power
Electronic

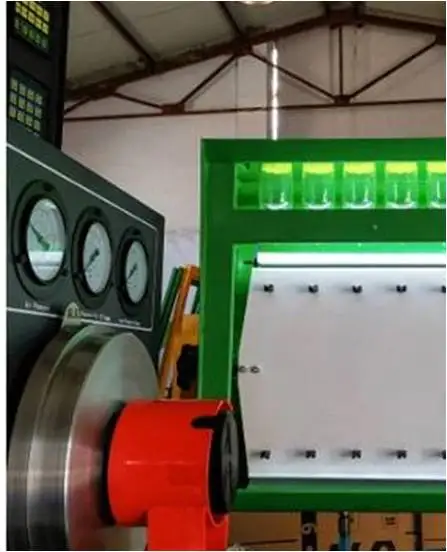

Products Description

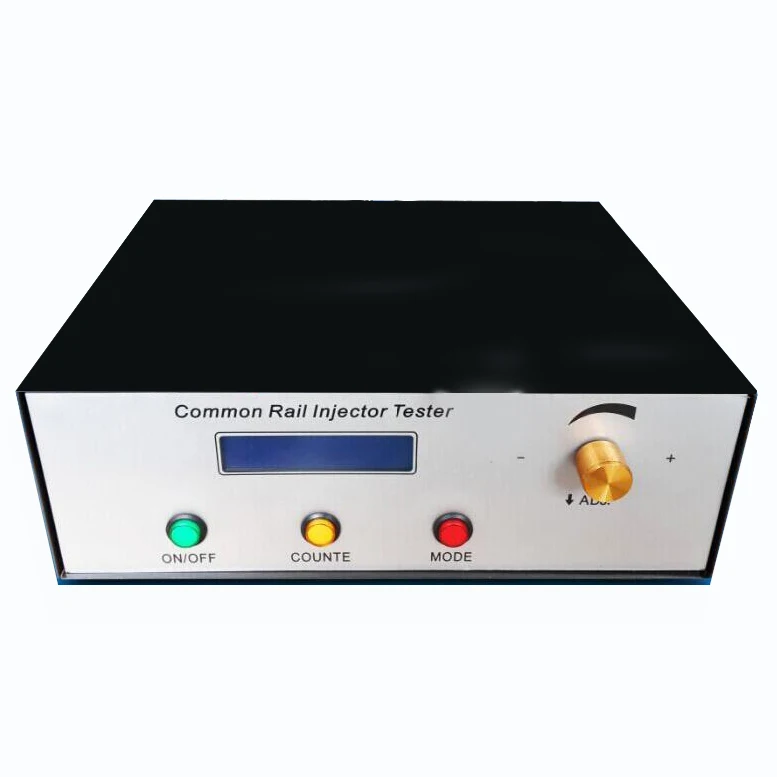

CRI-201 Common Rail Injector tester simulate diesel ECU (Engine Control Unit), provid common rail system control signal, drive the high pressure common rail pumps and Common Rail Injector to work, users can set up the drive signal parameters according to working situation, test and maintenance Common Rail injector performance.
Adjustable rotation speed range | 0~4000RPM |
Double series of graduates | 45CC, 150CC |
Volume of oil tank | 60L |
Temperature stabilization | 40±2 |
Test oil filtering unit | 5μ |
DC. Supply | 12/24V |
Feed pressure | 0~0.4MPa (low), 0~4MPa (high) |
Air pressure (MPa) | -0.03~0.3 |
Rack travel range | 0~25mm |
3-phase power supply | 380V/50Hz or on request |
Flywheel inertias moment | 0.8kg·m2 |
Center height | 125mm |
Output power | 7.5kw, 11kw and 15kw or on request |
Overall dimensions (mm) | 2100×960×1750 |
Net weight (kg) | 1300 |
CHARACTERISTIC
1. Changing frequency changing rotation speed;
2. Low fall of rotation speed and high output torque;
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Seven kinds of rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;

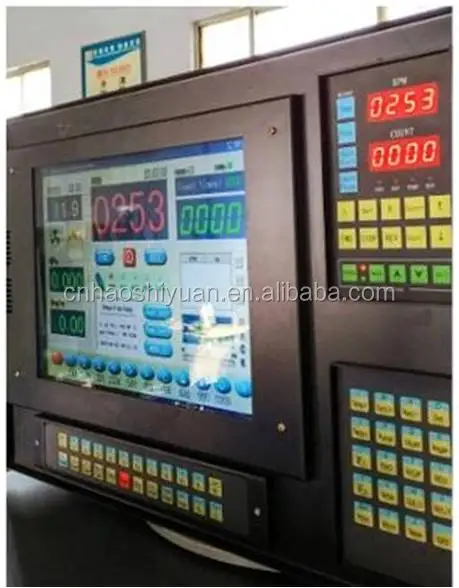

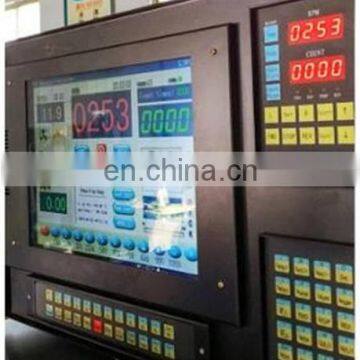

9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are measured and controlled by computers in real time, then displayed by 19'' LCD;
10. Built-in air resource;
11. All data can be made into reports and printed;
12. Having the functions of oil level display and alarm;
13. Automatically generating and displaying speed characteristics curve;
14. The data of the pumps can be saved, modified and obtained pump database;
15. It is very easy to find the data of the pumps in pumps database;
16. Windows operating system.
Function
1. Measurement of each cylinders delivery at various rotation speeds;
2. Checking of each cylinders injection time with static state;
3. Checking of the mechanical speed governors;
4. Checking of the electromagnetic valve of distributor pumps;
5. Checking of the pneumatic speed governors positive pressure performance;
6. Checking of the pneumatic speed governors vacuum performance;
7. Measurement of the reflux delivery of distributor pumps;
8. Measurement of the distributor pumps body internal pressure;
9. Checking of the pressure compensators performance (with LDA);
10. Checking of sealing of fuel injection pump body;
11. Measurement of the advance angle;
12. Measurement of rack travel.
2. Checking of each cylinders injection time with static state;
3. Checking of the mechanical speed governors;
4. Checking of the electromagnetic valve of distributor pumps;
5. Checking of the pneumatic speed governors positive pressure performance;
6. Checking of the pneumatic speed governors vacuum performance;
7. Measurement of the reflux delivery of distributor pumps;
8. Measurement of the distributor pumps body internal pressure;
9. Checking of the pressure compensators performance (with LDA);
10. Checking of sealing of fuel injection pump body;
11. Measurement of the advance angle;
12. Measurement of rack travel.
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
Certifications
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
