Home > Instruments & Meters > Test Instrument > Test Machine > High Quality Qith Best Price Common Rail Test Bench
US$ 2,500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haoshiyuan
Place of Origin:
China
Model Number:
CRS-205
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRI-201 Common Rail Injector Test Bench With Full FunctionUS$ 120 - 180MOQ: 1 Set -
High Pressure Fuel Pump Test Equipment CRS 708US$ 5,200 - 6,500MOQ: 1 Set
-
CRS 708 Common Rail Injector Test BenchUS$ 5,200 - 6,500MOQ: 1 Set
-
CRS 708 Common Rail Test BenchUS$ 5,200 - 6,500MOQ: 1 Set
-
Common Rail Injector Tester in Testing EquipmentUS$ 120 - 180MOQ: 1 Set
Brand Name
Haoshiyuan
Place of Origin
China
Model Number
CRS-205
Power
Electronic
Products Description

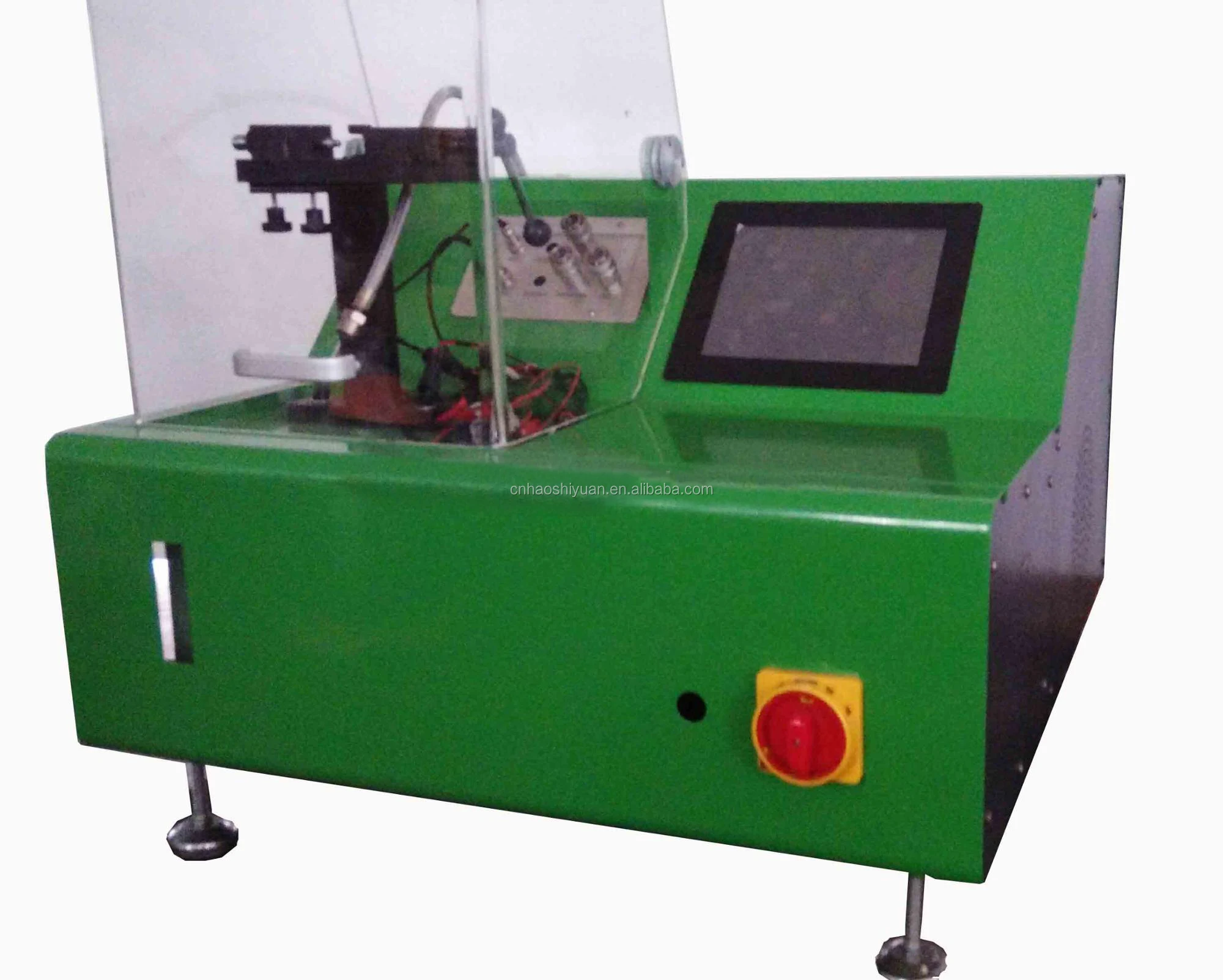

CRS-205C can test 4 brands of common rail injector,as well as piezo valve. the main drive adopts the servo control technology. Pump speed, injection pulse width and rail pressure are all controlled by industrial computer by real time, oil quantity is displayed by flow meter sensor, compare debug data automatically. 10.4" LCD touch screen display,more than 1000 kinds of injectors data,search, print(optional).
This is the testing device that use of AC 220V power supply, is specifically for the customers who don’t have 380V three-phase AC
This is the testing device that use of AC 220V power supply, is specifically for the customers who don’t have 380V three-phase AC
1. Pulse width | 0.1-3ms |
2. Fuel temperature | 38±2℃ |
3. Rail pressure | 0-1800 bar |
4. Test oil filter precision | 5μ |
5. Input power | AC 220V |
6. Rotation speed | 0~3000RPM |
7. Oil tank capacity | 30L |
8. Overall dimension(MM) | 700×810×820 |
9. Weight | 150KG |
CHARACTERISTIC
1. Main drive adopts the servo control technology
2. Controlled by industrial computer in real time.
3. Oil quantity is measured by flow meter sensor and displayed on 10.4" LCD .
4. Rail pressure can be tested in real time, it adopts closed-loop control system, and it contains the high-pressure
protection function.
protection function.
5. Data can be searched, saved and printed (optional).
6. Pulse width of the injector drive signal can be adjusted.
7. Protection function of short-circuit.
8. Plexiglass protective cover, easy and safe operation.
9. Using 220V AC single-phase power supply.
Function
1. test brand: 4 brands.
2. test the seal of injector.
3. test the max. oil quantity of injector.
4. test the backflow oil quantity of injector.
5. test the cranking oil quantity of injector.
6. test the pre-injection of injector.
7. test the average oil quantity of injector.
Details Images
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
Certifications
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
