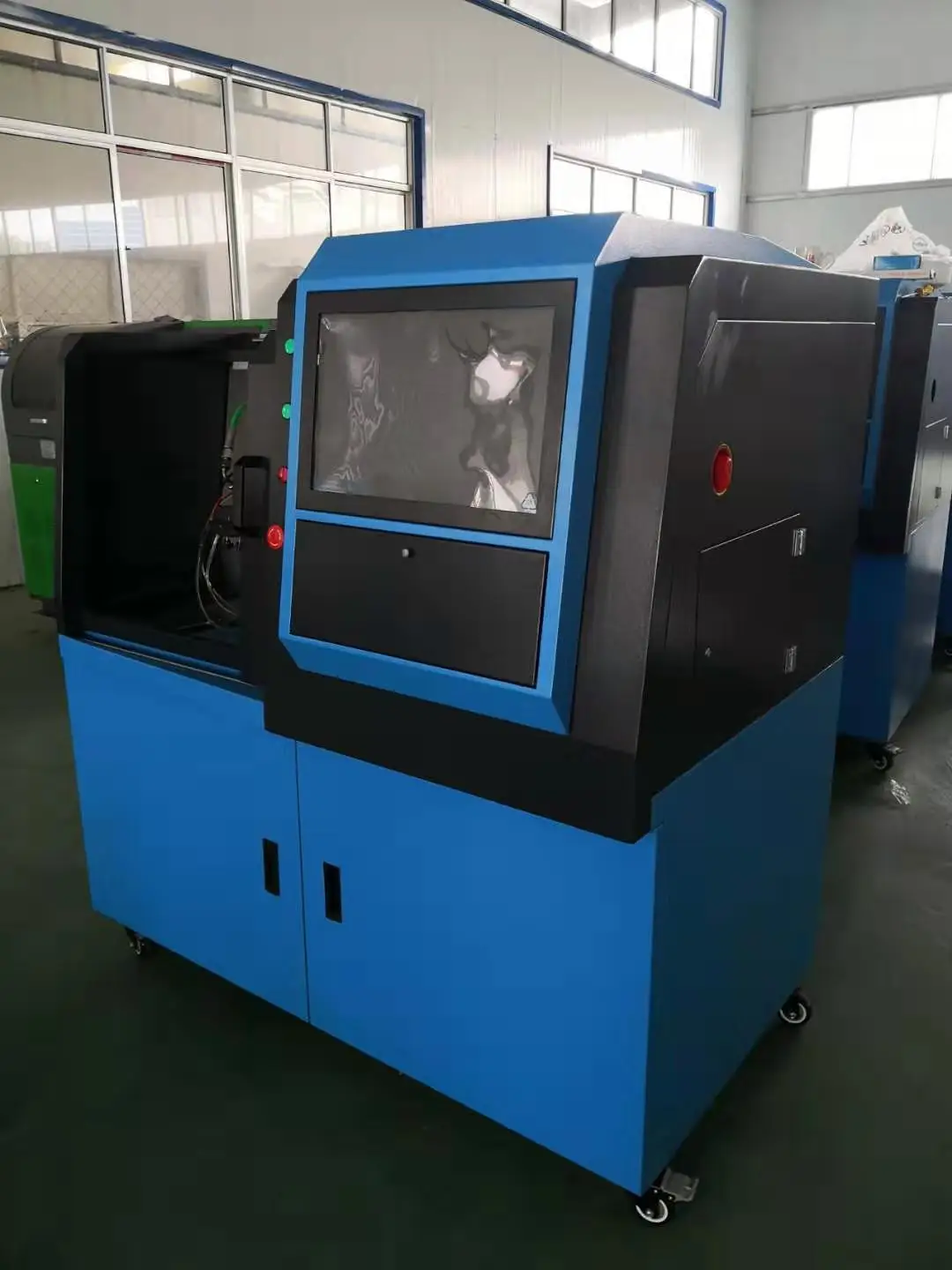

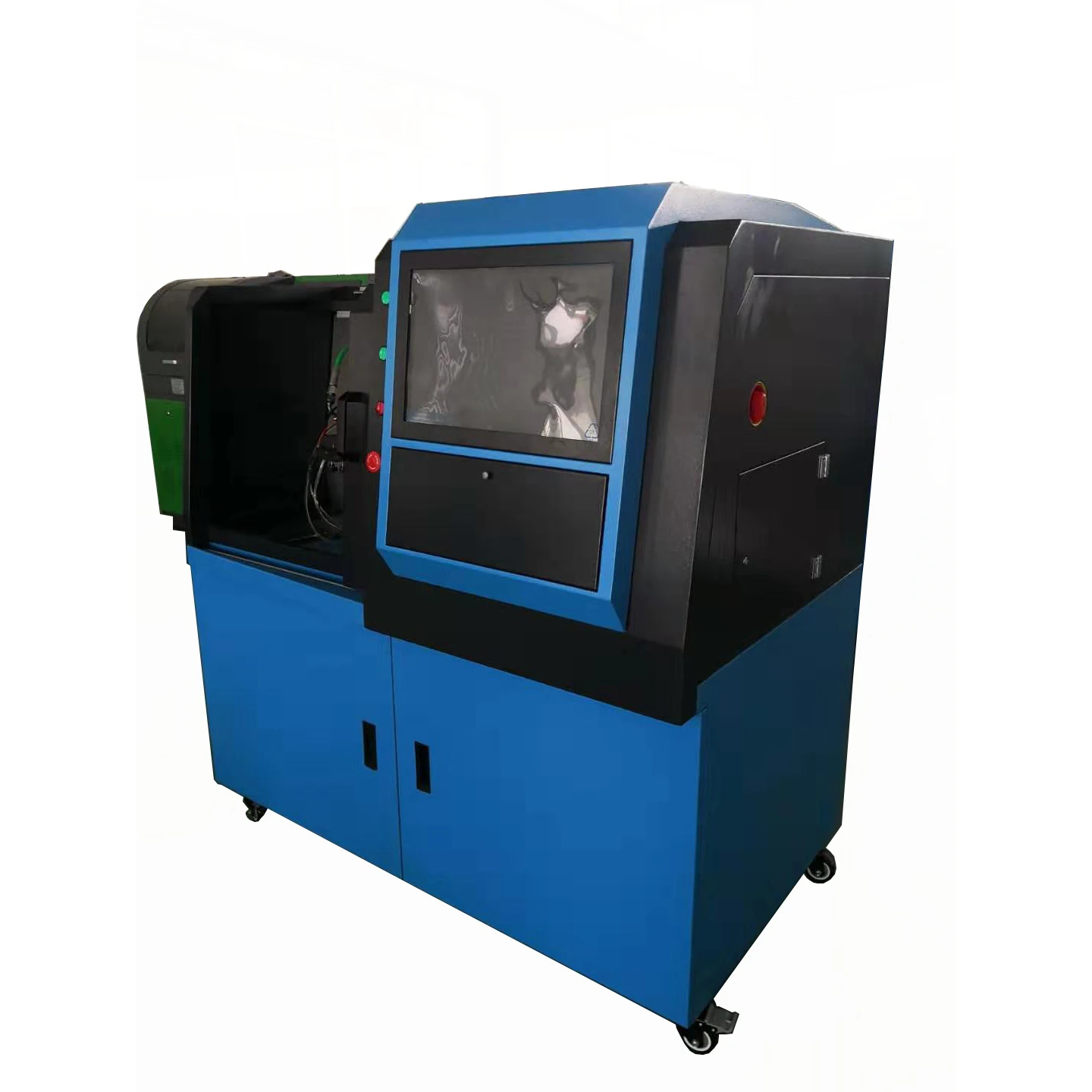

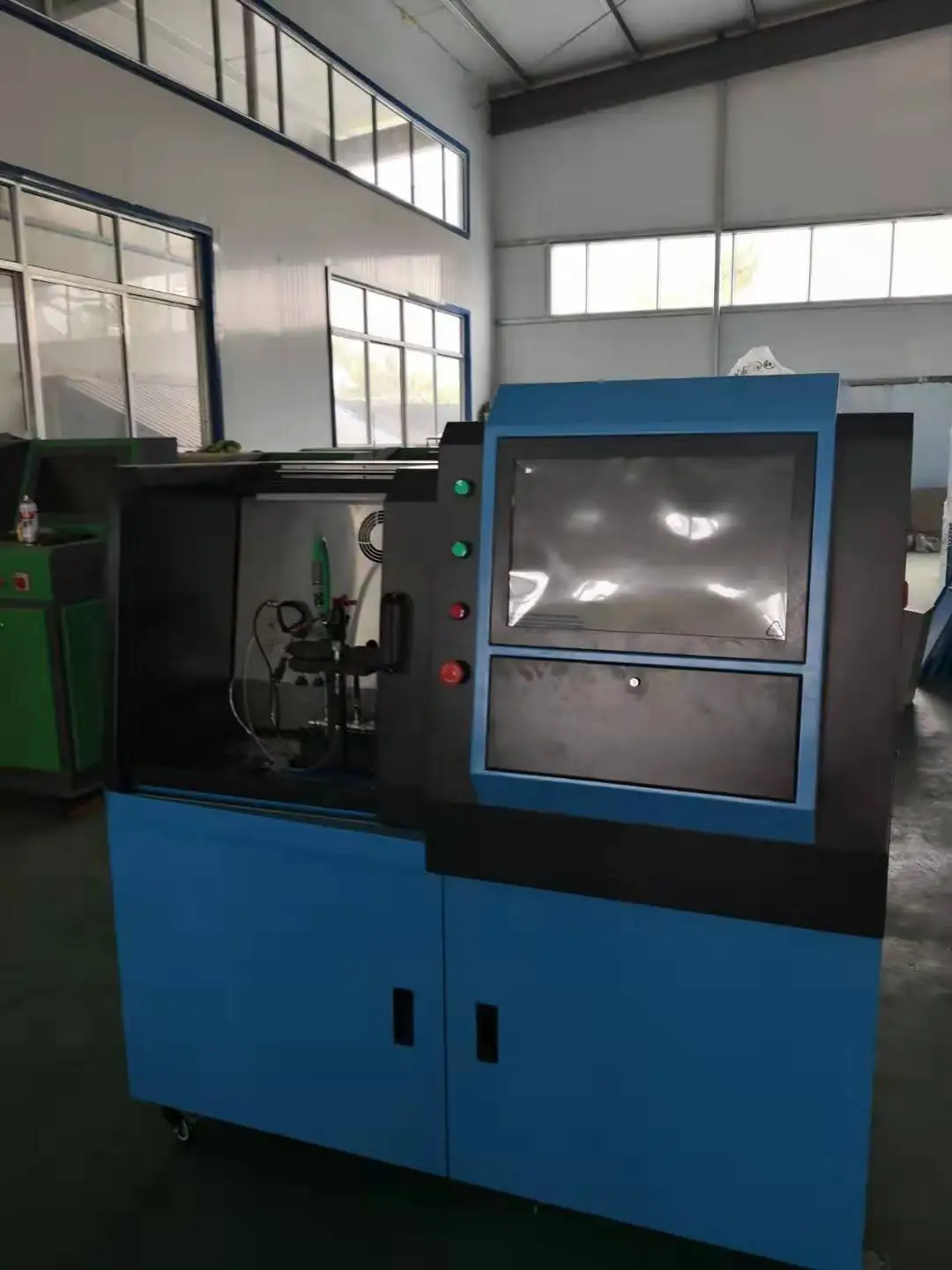

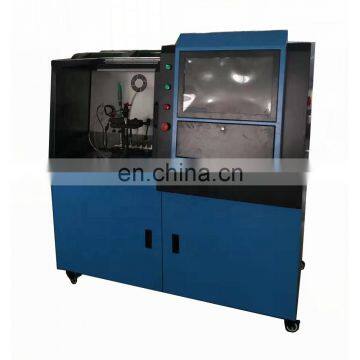

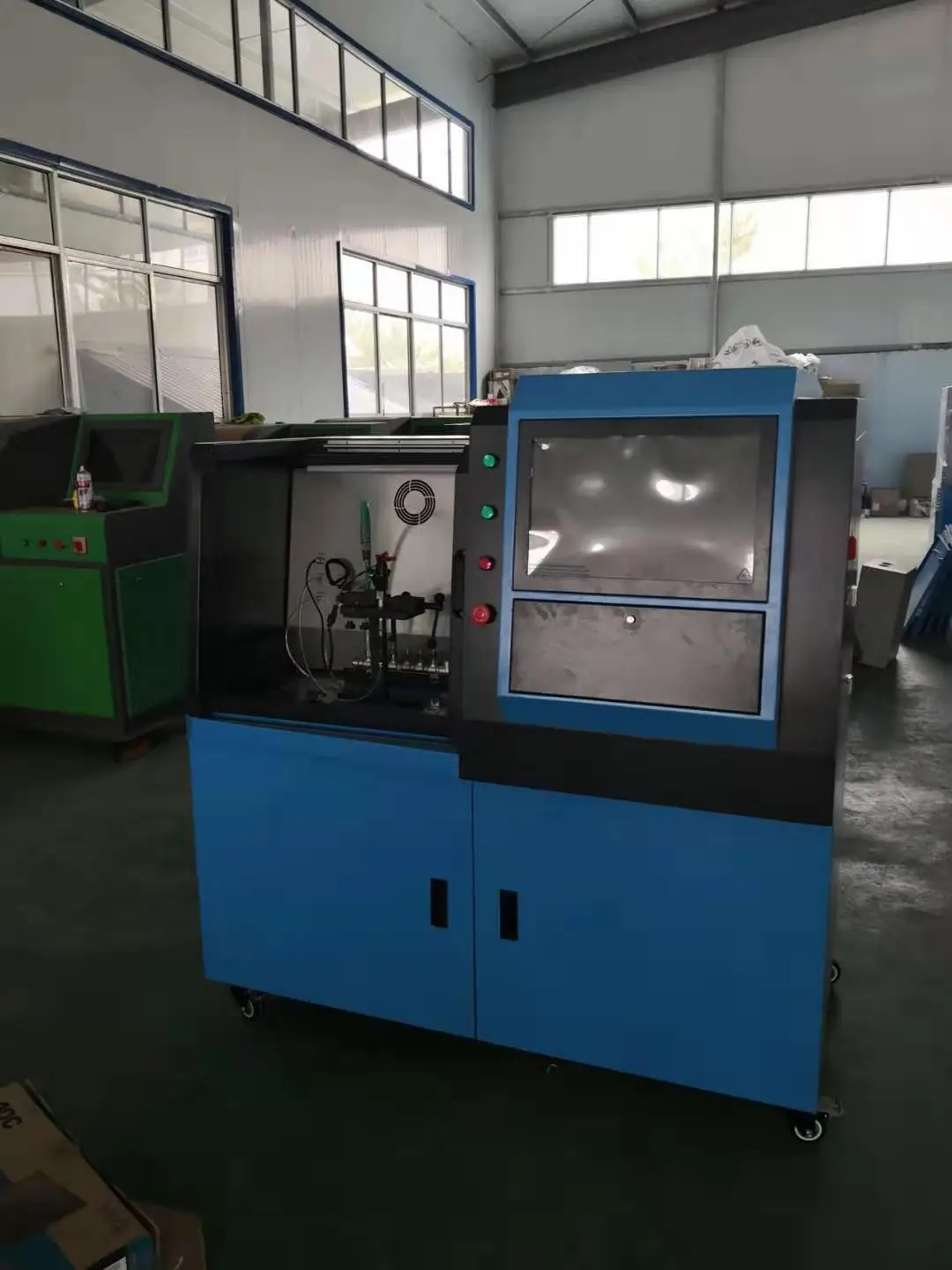

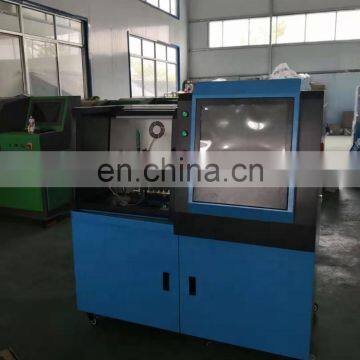

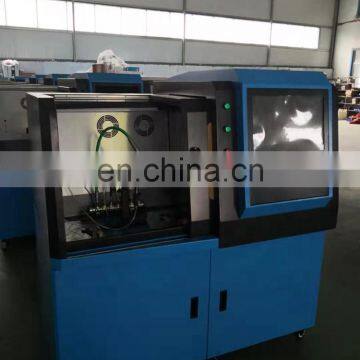

CR318 Crdi Injector Common Rail Injector Test Bench With bo Sch Pump
US$ 3,300 - 4,300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HAOSHIYUAN
Place of Origin:
Shandong, China
Model Number:
CR318S/ CR318A
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRDI Fuel Injector Test Equipment Common Rail Test Bench CR305US$ 4,900 - 5,500MOQ: 3 Units -

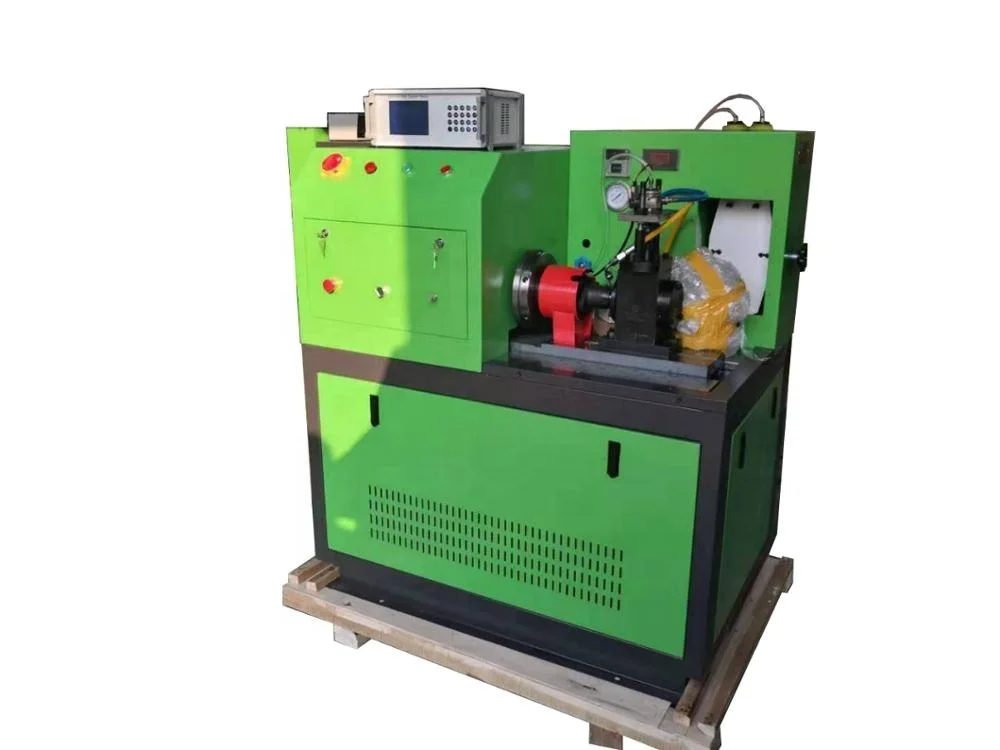

CR738 Common Rail Fuel Pump Test Bench Car Injector Calibration MachineUS$ 8,500 - 14,000MOQ: 1 Piece
-
QR1000 QR Coding Creator Common Rail Injector QR Code Query Tester System Can AutomaticallyUS$ 720 - 750MOQ: 1 Set
-

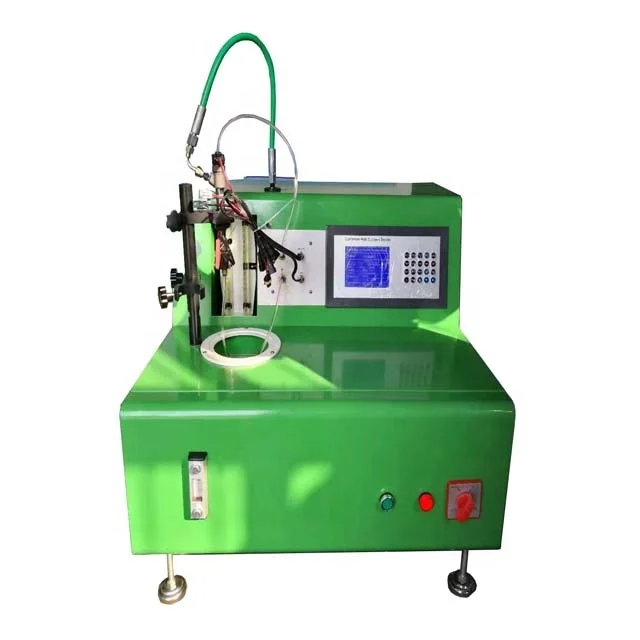

Hot Sale Common Rail Injector Tester CRS-205,CRS205US$ 2,500 - 3,000MOQ: 1 Set
-
High Quality Crs-708 Common Rail Test Bench PriceUS$ 3,000 - 8,000MOQ: 1 Set
Brand Name
HAOSHIYUAN
Place of Origin
Shandong, China
Model Number
CR318S/ CR318A
Power
Electronic
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
Products Description
COMMON RAIL INJECTOR TEST BENCH is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(electronic fuel delivery system). All data can be searched and saved. It adopts B O S C H(DENSO) original common rail pump to provide 0~1600 bar for rail pressure(DENSO). The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of B O S C H, S I E M E N S, D E L P H I, D E N S O. Advanced technology, steady performance, precise measurement and convenient operation.
Out put power | 5.5kw |
Input power | 380V/50hz/3phase or 220V/60hz/3phase |
Rotation speed | 0~3000RPM |
Rail high pressure | 0~2000 bar |
Test oil filtered precision | 5μ |
Oil tank | 40L |
Size | 1300*900*1350 |
Wight | 600kg |

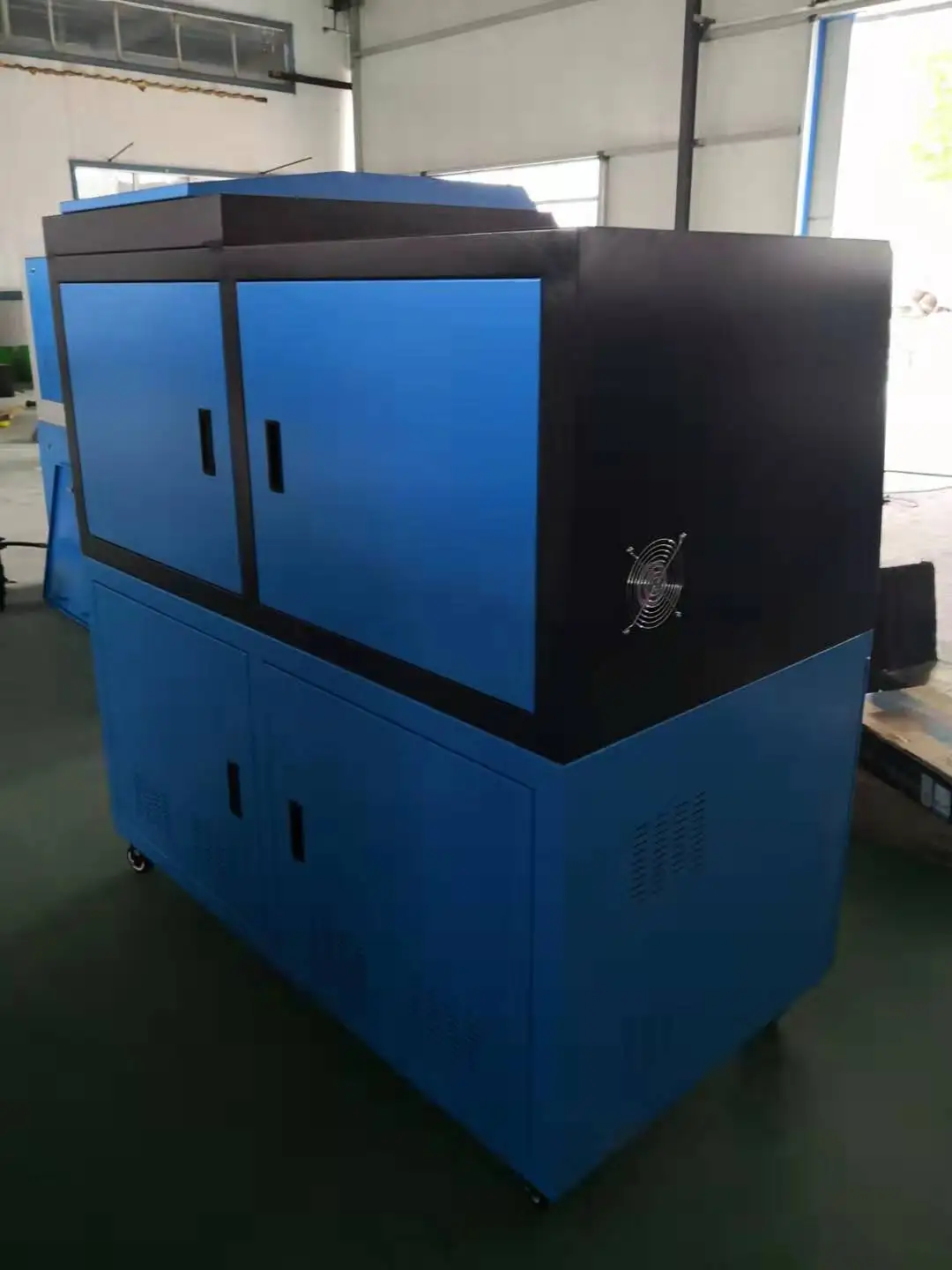

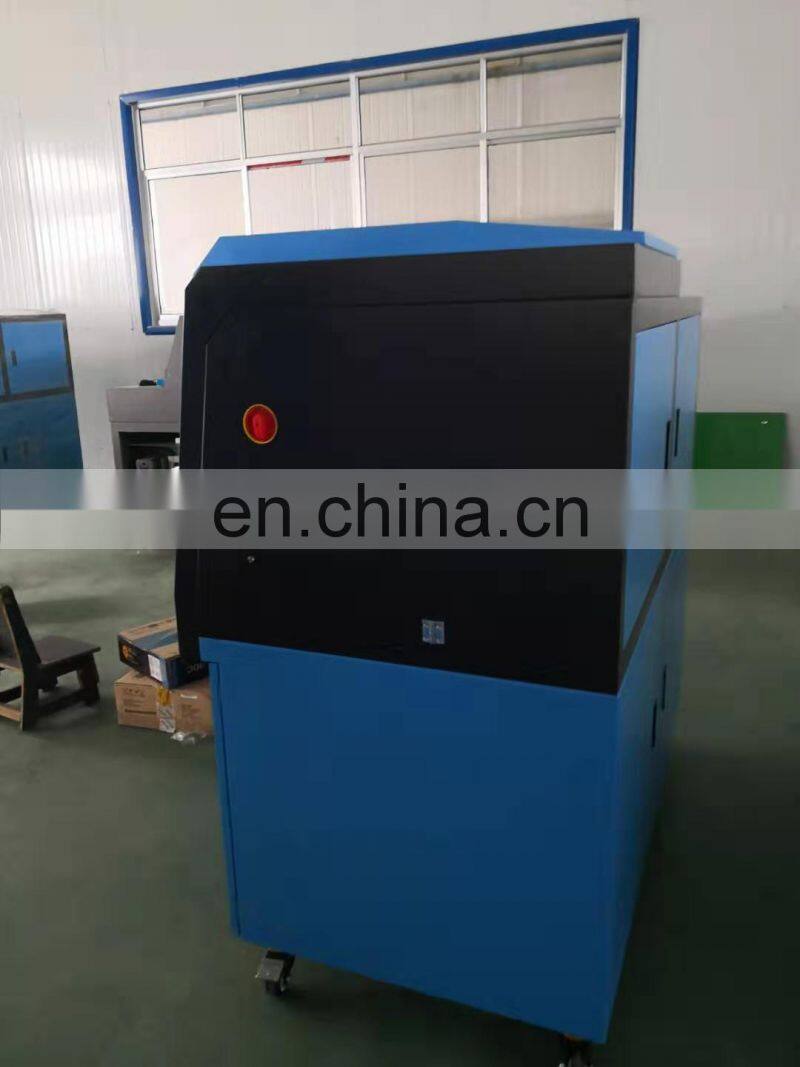

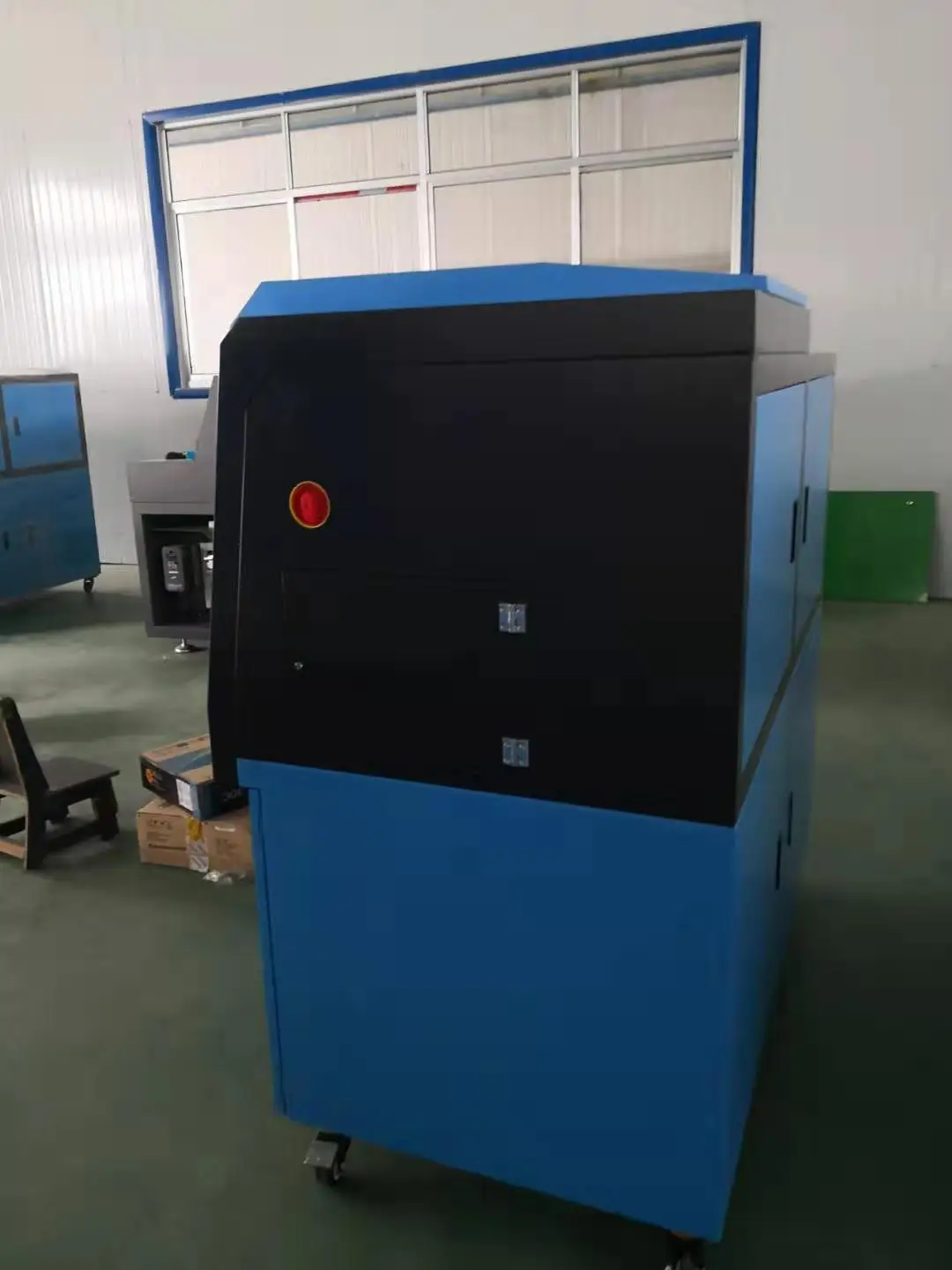

Details Images
CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2.Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen.
3. More than 400 kinds of injectors data can be searched and used.
4. It is installed B O S C H(D E N S O) common rail pump to provide 0~1600 bar for denso rail.
5. Rail pressure can be tested in real time.
6. Provide pressure overload protect by D E N S O rail.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
Main Features
Main Features
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2.Test 1 piece of injector.
3.Test the pre-injection of common rail injector.
4.Test the max. oil quantity of common rail injector
5.Test the cranking oil quantity of common rail injector.
6.Test the back flow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8.Test the seal performance of common rail injector.
9.Data can be searched and saved.
Product packaging
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request.
