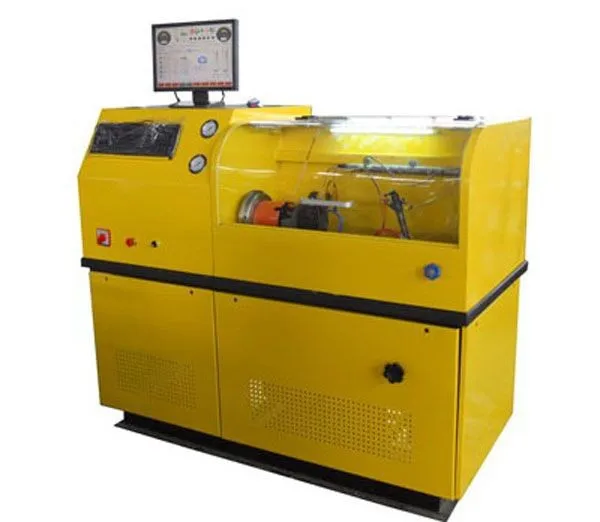

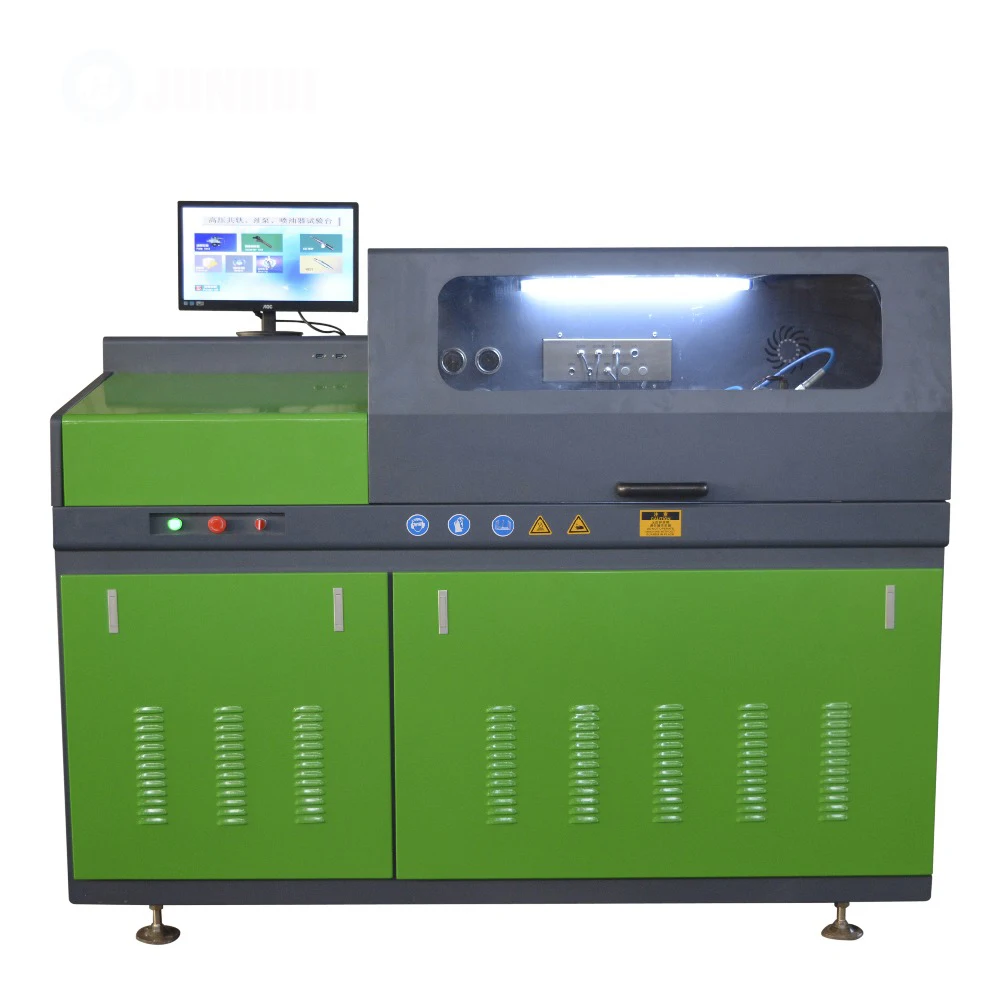

Haoshiyuan High Quality and Low Price CRS-708 Common Rail Injector Test Bench
US$ 5,200 - 6,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haoshiyuan
Place of Origin:
Shandong, China
Model Number:
CRS 708
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRS3000 Common Rail Injector Tester Diesel Test Equipment Test Bench With High PressureUS$ 3,000 - 4,000MOQ: 1 Unit -
Common Rail Injector Test Bench CRS3000 With Original cr PumpUS$ 3,000 - 4,000MOQ: 1 Unit
-
CRS3000 High Pressure Common Rail Diesel Injector TesterUS$ 3,000 - 4,000MOQ: 1 Unit
-
China Factory Low Price Common Rail Injector Test Bench CRS3000US$ 3,000 - 4,000MOQ: 1 Unit
-
Computer Automatic Fuel Common Rail Injector Test Bench CR3000US$ 3,000 - 4,000MOQ: 1 Unit
Brand Name
Haoshiyuan
Place of Origin
Shandong, China
Model Number
CRS 708
Power
Electronic
Products Description

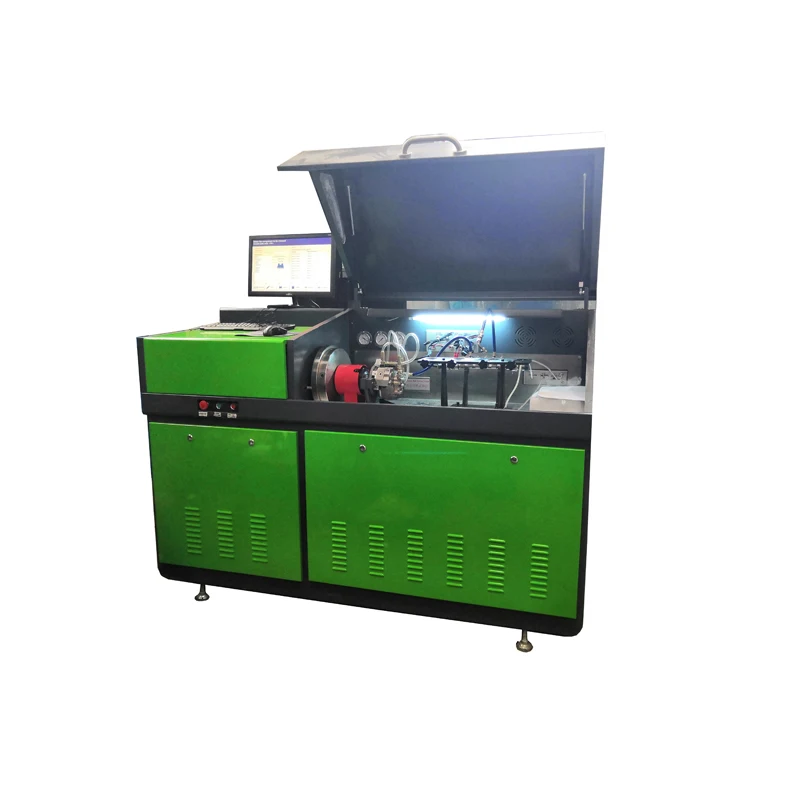

CRS-708 can test common rail pump and injector by flow meter sensor, as well as Piezo injector, also can test HP0 pump. The data is also obtained by computer,19 inch LCD screen display makes the data more clear. It adopts drive singal modulation and forced-cooling system, advanced technology, steady performance, precise measurement and convenient operation.
CRS-708 can fulfill the remote assistance by internet and make the maintenance easy to operate.
CRS-708 can fulfill the remote assistance by internet and make the maintenance easy to operate.
Injection testing frequency | 50~3000 rpm |
Fuel temperature | 40±2°C |
Rail high pressure | 0~1800 bar |
Test oil filtered precision | 5μ |
Input power | 380V/50hz/3phase or 220V/60hz/3phase |
Rotation speed | 0~4000RPM |
Oil tank capacity | 60L |
Flywheel inertia’s moment | 0.8KG.M2 |
Center height | 125MM |
Output power | 11KW |
Overall dimension(MM) | 1900×800×1550 |
Weight | 800 kg. |
CHARACTERISTIC
1. Main drive adopts the speed change by frequency change.
2. Controlled by industrial computer in real time,Windows operating system. Fulfill the remote assistance by internet and make the maintenance easy to operate.
3. Flow is measured by flow sensorand displayed on 19 inch LCD.
4. Drive signal can be adjusted.

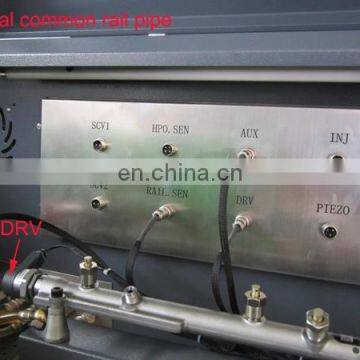

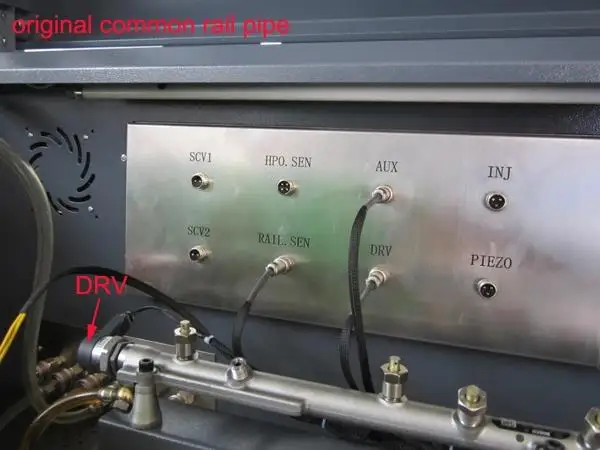

5. Controll the rail pressure by DRV,rail pressure can be tested in real time and controlled automatically, it contains the high-pressure protection function.
6. Oil temperature is controlled byforced-cooling system.
7. Pulse width of the injector drive signal can be adjusted.
8. Protection function of short-circuit.
9. Plexiglass protective door, easy operation, safe protection.
Function
Common Rail Injector | Common Rail Pump | |
1. test brands: 4 brands | ||
2. test the seal performance of common rail injector. | 2. test the sealing of common rail pump. | |
3. test the pre-injection oil quantity of common rail injector. | 3. test the internal pressure of common rail pump. | |
4. test the max. oil quantity of common rail injector. | 4. test the proportional electromagnetic valve of common rail pump. | |
5. test the min. oil quantity of common rail injector. | 5. test oil transfer pump performance of common rail pump. | |
6. test the average oil quantity of common rail injector. | 6. test the flux of common rail pump. | |
7. Test the backflow oil quantity of common rail injector. | 7. measure the rail pressure in real time. | |
8. Data can be searched, printed and made into database. | ||

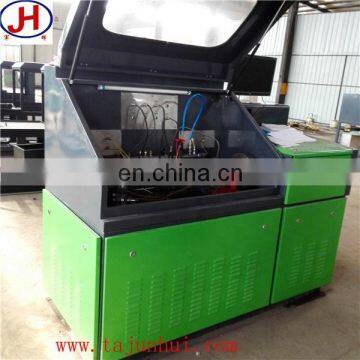

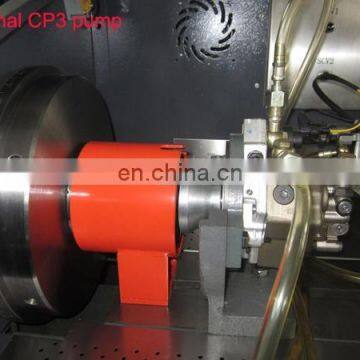

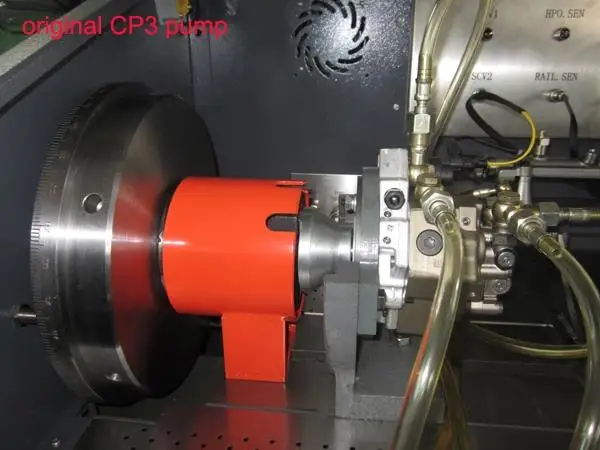

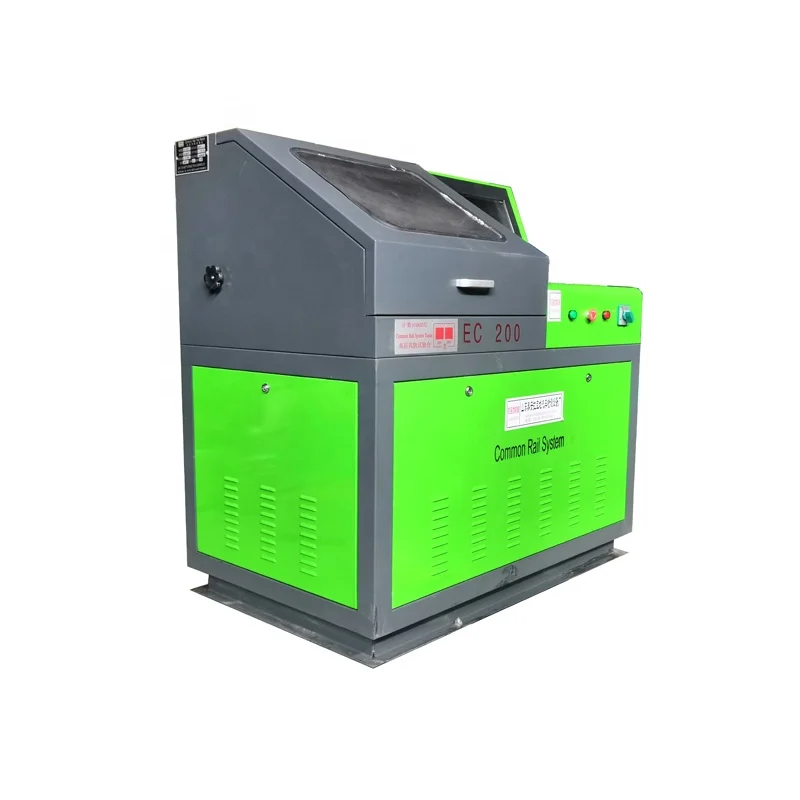

Details Images
Product packaging
Packaging
The normal package is polywooden
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
box(Size: L*W*H). If export to
european countries,the wooden box
will be fumigated.If container is too
tigher,we will use pe film for packing
or pack it according to customers
special request
Certifications
Company Profile
Tai'an haoshiyuan automobile testing equipment company has its own factory, and Italy is a joint venture founded in 1995, the company is located in the beautiful at the foot of Taishan, the existing 5 million yuan in fixed assets, more than 80 employees. Several of the earliest engaged in the frequency conversion speed injection pump test bench of senior engineers, engineers, technicians and computer software and hardware development experts. The introduction of advanced production and processing equipment and a full set of production technology and product design software, Italy has the world's advanced level of a variety of automotive testing and testing equipment.
