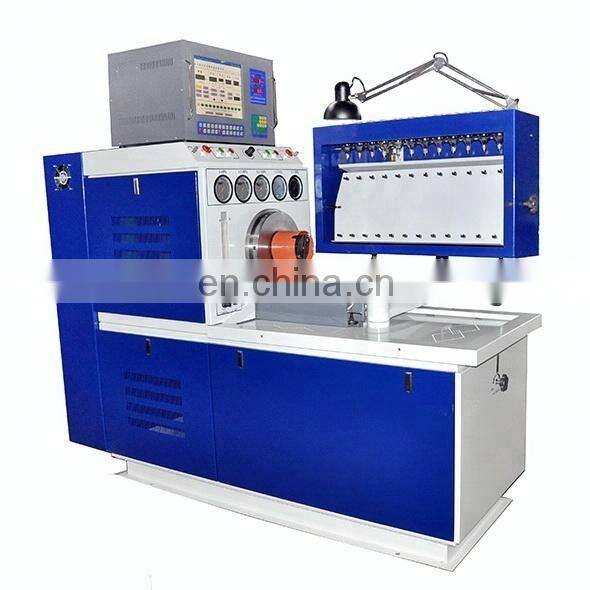

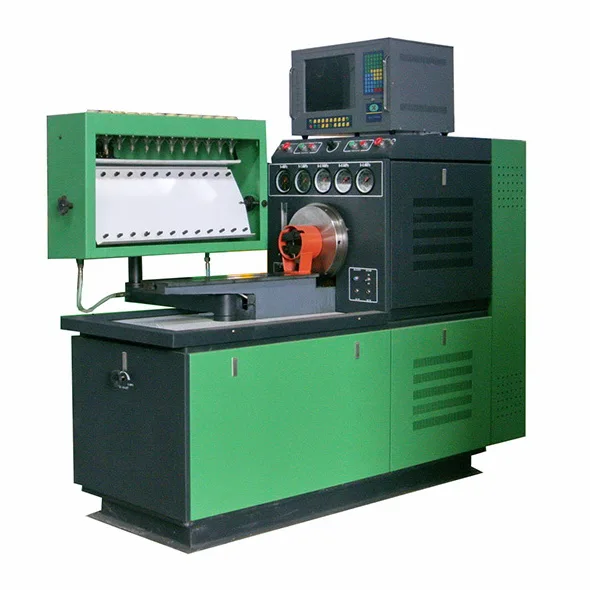

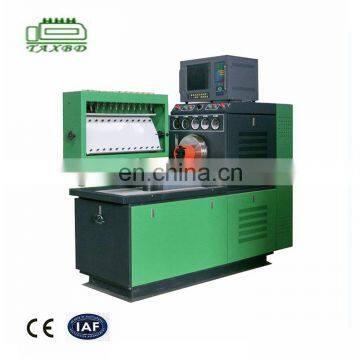

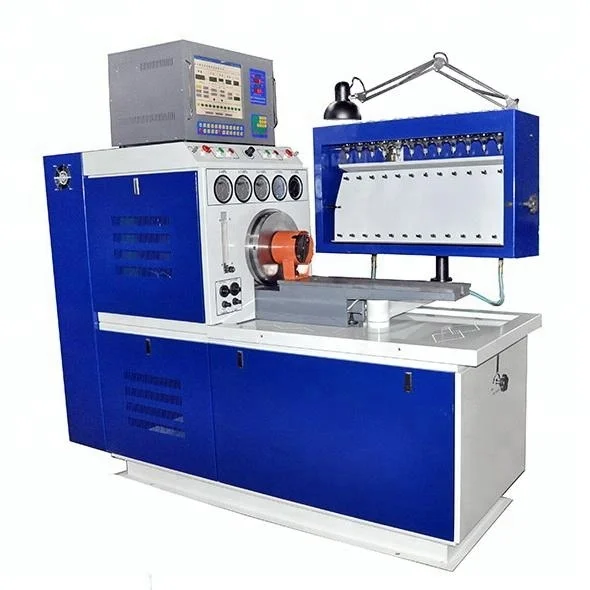

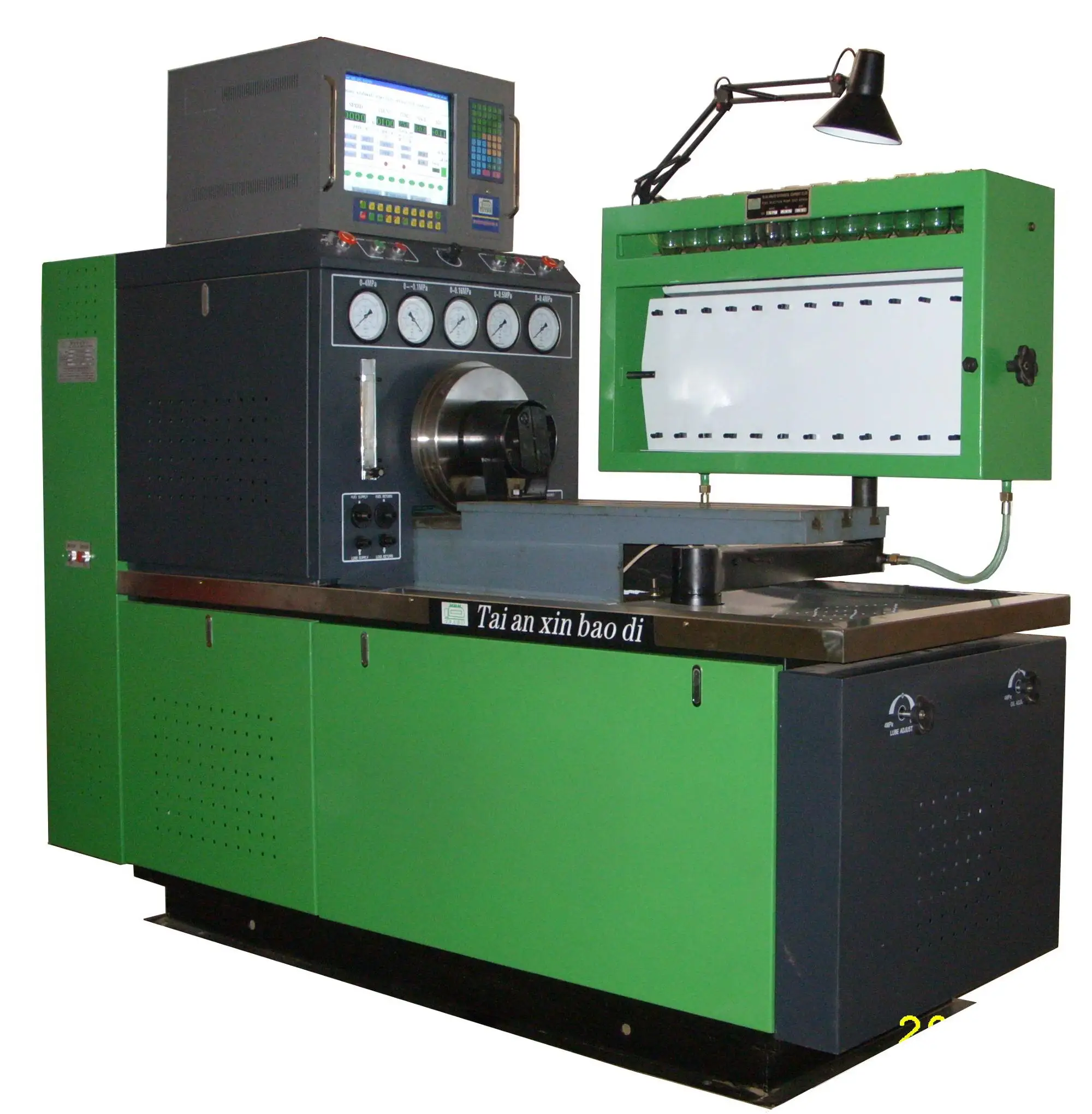

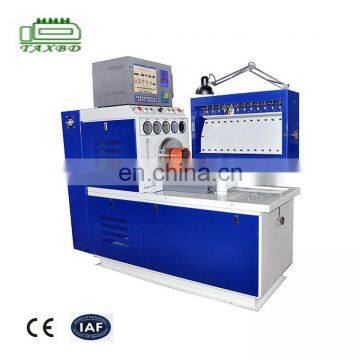

XBD-619D Fuel Injection Pump Test Bench for In-line Pump
US$ 4,200 - 4,250
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XinBaoDi
Place of Origin:
Shandong, China
Model Number:
XBD-619D
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XBD-619D 2020 Latest Industrial Computer Control Diesel Fuel Injector Pump TestersUS$ 4,200 - 4,300MOQ: 1 Set -
VP44 Diesel Common Rail Injection Pump TesterUS$ 725 - 736MOQ: 1 Set
-
12PSB Diesel Fuel Injection Pump Test Bench With Host Frequency Control of Motor SpeedUS$ 2,200 - 3,000MOQ: 1 Set
-
EDC VP44 Pump Tester /VP44 Diesel Common Rail Injection Pump TesterUS$ 725 - 736MOQ: 1 Set
-
XBD-619 Bosch Fuel Injection Pump Test Bench MADE IN CHINAUS$ 4,200 - 5,000MOQ: 1 Set
Brand Name
XinBaoDi
Place of Origin
Shandong, China
Model Number
XBD-619D
Power
Electronic
Product Description
The main features of test bench :
1. The main principal axis revolution, oil metering counting, Oil temperature control, pressure display use digital display
2. The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable
3. The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min
4. The manual speed regulation and rotate speed multi-gear setting
5. 0-0.25Mpa air supply output , built-in type blast pump
6. It has DC12V and DC24V stable power output
7. The host machine is channel steel structure; the complete structure is compact and steady
8. the shell use static painting, it is beautiful
9. The oil sump tank can realize right and left rotation , and also up and down regulation
10. The test bench has urgent brake switch
11. It adopts advanced frequency conversion governor, with high precision rotate speed
12. The test bench have under voltage, over pressure, super heating and over loading protection function
13. Low noise of test bench
14. The test bench has high mechanical efficiency and save energy
1. The main principal axis revolution, oil metering counting, Oil temperature control, pressure display use digital display
2. The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable
3. The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min
4. The manual speed regulation and rotate speed multi-gear setting
5. 0-0.25Mpa air supply output , built-in type blast pump
6. It has DC12V and DC24V stable power output
7. The host machine is channel steel structure; the complete structure is compact and steady
8. the shell use static painting, it is beautiful
9. The oil sump tank can realize right and left rotation , and also up and down regulation
10. The test bench has urgent brake switch
11. It adopts advanced frequency conversion governor, with high precision rotate speed
12. The test bench have under voltage, over pressure, super heating and over loading protection function
13. Low noise of test bench
14. The test bench has high mechanical efficiency and save energy
Model | XBD-619D | |
1 | The principle axis rotation speed | 0-4000r/min. the two directions are optional |
2 | test oil injection pump cylinders | 12 |
3 | The principle axis rotation speed fluctuate | ±1r/min |
4 | The host machine power | 5.5KW 、7.5KW、11KW、15KW、18.5KW、22KW |
5 | The oil supply drive motor power | 1.1KW |
6 | Principle axis center to center spacing working bench height | 125mm |
7 | The oil metering counting | 0－1000 times , one gear per 50 times |
8 | Rotation speed, counting, toothed bar stroke, in advance angle display | four digital display |
9 | The pressure, oil temperature display | three digital display |
10 | The oil temperature automatic control | 40℃±2℃ |
11 | Gas source pressure | 0-0.25Mpa |
12 | The oil tank volume | ≥ 40L |
13 | The oil pump oil supply | ≥ 10L/Min |
14 | The oil filter precision | 5μ |
15 | The glass measuring cylinder volume | Big measuring cylinder: 150ml Small measuring cylinder: 45ml |
16 | The oil pressure meter | 1.5 grade : 0-0.6Mpa；0-6Mpa；0-0.16Mpa；0-1.6Mpa |
17 | The standard injector | ZS12SJI |
18 | Cooling method | forced wind cooling |
19 | Test bench overall dimension （mm） | 2300×1160×1780 |
20 | Test bench weight | 1200Kg. |
According to the different pump. the test bench use proper attachment, and carry out the following testing:
1. Test different cylinder oil supply condition and oil supply evenness under different revolution
2. Test oil supply starting point and interval angle
3. Governor working performance checking and regulation
4. The pressure compensation performance test and checking
5. The distribution pump working performance test and regulations
6. The cold starting device and solenoid valve performance checking
7. The distribution pump inner pressure test under different revolution
8. The injection pump seal performance test
9. Check the oil transfer pump self priming performance
10.The built-in high reliability horizontal type inflation pump
2. Test oil supply starting point and interval angle
3. Governor working performance checking and regulation
4. The pressure compensation performance test and checking
5. The distribution pump working performance test and regulations
6. The cold starting device and solenoid valve performance checking
7. The distribution pump inner pressure test under different revolution
8. The injection pump seal performance test
9. Check the oil transfer pump self priming performance
10.The built-in high reliability horizontal type inflation pump
- Functions:
1. Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump
3. Checking and adjust the mechanical governor
4. Checking and adjust the distrbutor pump
5. Experiment and adjusting of behavior of supercharging and compensatory device
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump (12v/24v)
8. Measurement of the internal pressure of distributorr pump
9. Checking of the advance angle of advance device
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump
2. Test point and interval angle of oil supply of injection pump
3. Checking and adjust the mechanical governor
4. Checking and adjust the distrbutor pump
5. Experiment and adjusting of behavior of supercharging and compensatory device
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump (12v/24v)
8. Measurement of the internal pressure of distributorr pump
9. Checking of the advance angle of advance device
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump

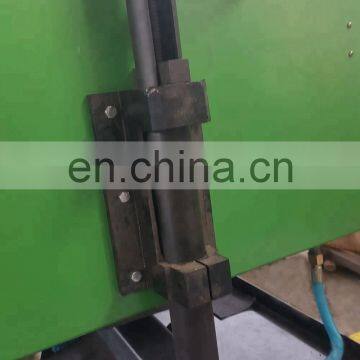

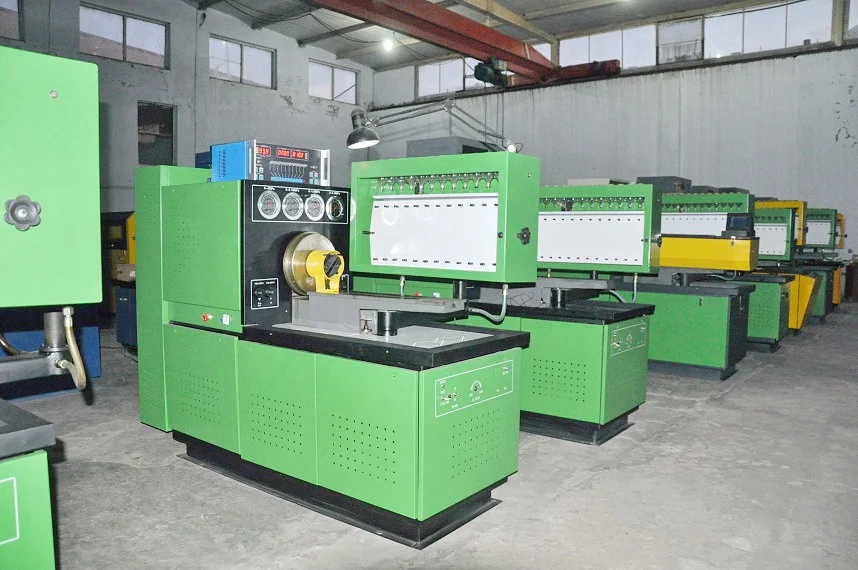

Detailed Images
The main technical data of test bench:
1. The principle axis revolution: 0-4000r/min. the two directions is optional
2. It can test oil injection pump cylinders is 12
3. The principle axis revolution fluctuate: ±1r/min
4. The host machine power : 5.5kw ,7.5kw,11kw,15kw,18.5kw,22kw
5. The oil supply drive motor power : 1.1kw
6. Principle axis center to center spacing working bench height : 125mm
7. The oil metering counting : 0-1000 times , one gear per 50 times
8. Revolution, counting display: four digital display
9. The pressure, oil temperature display: three digital display
10. The oil temperature automatic control: 40°C±2°C
11.Gas source pressure: 0-0.25Mpa
12. The oil tank volume: ≥ 40L
13. The oil pump oil supply: ≥ 10L/Min
14. The oil filter precision: 5μ
15. The glass measuring cylinder volume: 45ml, 150ml
16. The oil pressure meter 1.5 grade : 0-0.6Mpa;0-6Mpa;0-0.16Mpa;0-1.6Mpa.
17. The standard injector: ZS12SJI
18. Cooling method: forced wind cooling
19. Test bench overall dimension (mm): 2300×1160×1780
20. Test bench weight: 1200kg
1. The principle axis revolution: 0-4000r/min. the two directions is optional
2. It can test oil injection pump cylinders is 12
3. The principle axis revolution fluctuate: ±1r/min
4. The host machine power : 5.5kw ,7.5kw,11kw,15kw,18.5kw,22kw
5. The oil supply drive motor power : 1.1kw
6. Principle axis center to center spacing working bench height : 125mm
7. The oil metering counting : 0-1000 times , one gear per 50 times
8. Revolution, counting display: four digital display
9. The pressure, oil temperature display: three digital display
10. The oil temperature automatic control: 40°C±2°C
11.Gas source pressure: 0-0.25Mpa
12. The oil tank volume: ≥ 40L
13. The oil pump oil supply: ≥ 10L/Min
14. The oil filter precision: 5μ
15. The glass measuring cylinder volume: 45ml, 150ml
16. The oil pressure meter 1.5 grade : 0-0.6Mpa;0-6Mpa;0-0.16Mpa;0-1.6Mpa.
17. The standard injector: ZS12SJI
18. Cooling method: forced wind cooling
19. Test bench overall dimension (mm): 2300×1160×1780
20. Test bench weight: 1200kg
Related Products
Packing&Shipping
The package is wooden case or plywood case, If you need, we can also pack the products according to your demands.
After Sales Service
After-sales service:
TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD
Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA
Whatsapp:17564323010
WeChat:17564323010
E-mail: an17564323010@outlook.com
Website: https://xinbaodi.en.china.cn
Company Introduction
Our company specialized in quality so we're very confidence in our products. Also there're many kinds of equipments to choose. If you're not satisfied with these equipments, we have PTG(professional technical group) to design what you want to buy. So if you have any questions please contact with us at any time. We're very pleased to serve you and we believe in great service all the time.
FAQ
Q:Can I visit you?Are you trading company or manufacturer?
A:Sure, we are manufacturer. Our factory is located in Tai'an, Shandong, China, and has more than 20 years of professional production experience.Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
Q:How many days do you need for delivery?
A: Some of our machines have stock available,once you ordered and made payment, we will deliver it asap. If it has no stock, we may need around 15-20 days for new production. Of course the delivery time is determined by the order you purchase. We will try our best to produce faster if your schedule is urgent.
Q: Can I negotiate the prices for the machine?
A:Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request .
Q:What is your price term and payment term?
A: Price term: EXW,FOB,CFR,CIF ect. ,Payment term: T/T or online on Alibaba.
Q:Can you give warranty of your products?
A:14 months warranty for our product, whole life technical support. we have professional business managers who can serve clients in 24 hours.
Q:How to install and operate the machine?
A:Most of the machine are fully assembled in our factory, so just open and remove the package and get power connected. For some machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.
Q:Do you have some tools?
A:Yes, we have many kinds of tools and spare parts.
