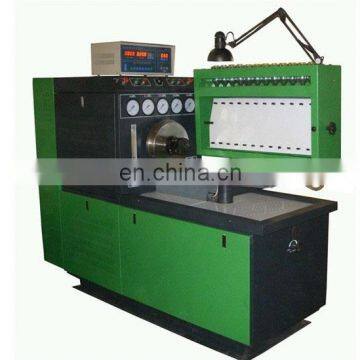

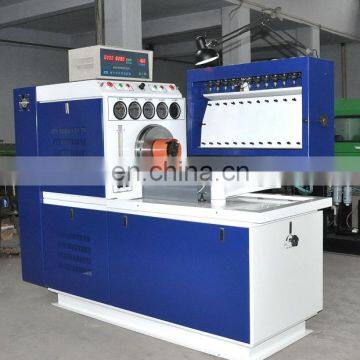

XBD-619S Beautiful Appearance Diesel Fuel Injection Pump Test Bench
US$ 4,200 - 4,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
xinbaodi
Place of Origin:
Shandong, China
Warranty:
12 Months
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XBD-MTU DIESEL PUMP TEST STANDUS$ 19,000 - 20,000MOQ: 1 Set -
XBD-EMC Independently Design Diesel Pump TestersUS$ 2,800 - 6,500MOQ: 1 Set
-
XBD-619S Strengthen Function Diesel Fuel Injection Pump Test StandUS$ 2,680 - 3,500MOQ: 1 Set
-
Diesel Fuel Injection Pump Test Bench XBD-619D Common Rail Test StandUS$ 3,000 - 3,200MOQ: 1 Set
-
619D High Pressure Diesel Pump Test Bench From China ManufacturerUS$ 3,080 - 3,180MOQ: 1 Set
Brand Name
xinbaodi
Place of Origin
Shandong, China
Warranty
12 Months
Product Description
XBD-619S diesel injection pump test bench
1 The main principal axis revolution, oil metering counting, Oil temperature control, pressure display use digital display
2 The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable !
The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min
4 The manual speed regulation and rotate speed multi gear setting
5 0-0.25Mpa air supply output , built-in type blast pump
6 It has DC12V and DC24V stable power output
7 The host machine is channel steel structure; the complete structure is compact and steady
8 the shell use static painting, it is beautiful
9 The oil sump tank can realize right and left rotation , and also up and down regulation
10 The test bench has urgent brake switch
11 It adopts advanced frequency conversion governor, with high precision rotate speed
12 The test bench have under voltage, over pressure, super heating and over loading protection function
13 The test bench low noise
14 The test bench has high mechanical efficiency and save energy
2 The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable !
The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min
4 The manual speed regulation and rotate speed multi gear setting
5 0-0.25Mpa air supply output , built-in type blast pump
6 It has DC12V and DC24V stable power output
7 The host machine is channel steel structure; the complete structure is compact and steady
8 the shell use static painting, it is beautiful
9 The oil sump tank can realize right and left rotation , and also up and down regulation
10 The test bench has urgent brake switch
11 It adopts advanced frequency conversion governor, with high precision rotate speed
12 The test bench have under voltage, over pressure, super heating and over loading protection function
13 The test bench low noise
14 The test bench has high mechanical efficiency and save energy
Model | XBD-619S | XBD-619S | |||
The principle axis revolution: | 0-4000r/min. the two directions is optional | Gas source pressure | 0-0.25Mpa | ||
test oil injection pump cylinders | 12 | The oil tank volume | ≥ 40L | ||
The principle axis revolution fluctuate | ±1r/min | The oil pump oil supply | ≥ 10L/Min | ||
The host machine power | 5.5kw,7.5kw,11kw,15kw,18.5kw,22kw | The oil filter precision | 5μ | ||
The oil supply drive motor power | 1.1kw | The glass measuring cylinder volume | 45ml, 150ml | ||
Principle axis center to center spacing working bench height | 125mm | The oil pressure meter | 1.5 grade : 0-0.6Mpa;0-6Mpa;0-0.16Mpa;0-1.6Mpa | ||
The oil metering counting | 0-1000 times , one gear per 50 times | The standard injector | ZS12SJI | ||
Revolution, counting display | four digital display | Cooling method | forced wind cooling | ||
The pressure, oil temperature display | three digital display | Test bench overall dimension (mm) | 2300×1160×1780 | ||
The oil temperature automatic control | 40℃±2℃ | Test bench weight | 1200kg | ||
Direction for use
使用说明
According to the different pump. the test bench use proper attachment, and carry out the following testing:
1. Test different cylinder oil supply condition and oil supply evenness under different revolution
2. Test oil supply starting point and interval angle
3. Governor working performance checking and regulation
4. The pressure compensation performance test and checking
5. The distribution pump working performance test and regulations
6. The cold starting device and solenoid valve performance checking
7. The distribution pump inner pressure test under different revolution
8. The injection pump seal performance test
9. Check the oil transfer pump self priming performance
10.The built-in high reliability horizontal type inflation pump
1. Test different cylinder oil supply condition and oil supply evenness under different revolution
2. Test oil supply starting point and interval angle
3. Governor working performance checking and regulation
4. The pressure compensation performance test and checking
5. The distribution pump working performance test and regulations
6. The cold starting device and solenoid valve performance checking
7. The distribution pump inner pressure test under different revolution
8. The injection pump seal performance test
9. Check the oil transfer pump self priming performance
10.The built-in high reliability horizontal type inflation pump
Description of application effect
Product features: simple operation and accurate detection
1. The main principal axis revolution, oil metering counting, Oil temperature control, pressure display use digital display
2. The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable
3. The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min
4. The manual speed regulation and rotate speed multi-gear setting
5. 0-0.25Mpa air supply output , built-in type blast pump
6. It has DC12V and DC24V stable power output
7. The oil sump tank can realize right and left rotation , and also up and down regulation
2. The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable
3. The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min
4. The manual speed regulation and rotate speed multi-gear setting
5. 0-0.25Mpa air supply output , built-in type blast pump
6. It has DC12V and DC24V stable power output
7. The oil sump tank can realize right and left rotation , and also up and down regulation
Related Products
Packing&Shipping
1, Foam & shrink film 2, wooden case or plywood case
standard export packing or as customers' needs
Company Introduction
Taian Xinbaodi Testing Equipment Co., Ltd. is a manufacturer pecially produced fuel injection pump test bench in China for 20years. Thecompany offers customized products and OEM services. New collections and designs are launched every year. The factory has skilledskills and updated machines, and we have excellent engineers and designers to serve your order.
Our Services & Strength
Taian Xinbaodi Test Equipment Co., Ltd., pecially produced fuel injection pump test bench in China for 20 years, we have excellent engineers and designers for your order. Welcome to send me a plan / drawing for offer a reasonable quotation.
FAQ
Q:Can I visit you?Are you trading company or manufacturer?
A:Sure, we are manufacturer. Our factory is located in Tai'an, Shandong, China, and has more than 20 years of professional
production experience.Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
Q:How many days do you need for delivery?
A:Sure, we are manufacturer. Our factory is located in Tai'an, Shandong, China, and has more than 20 years of professional
production experience.Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
Q:How many days do you need for delivery?
A: Some of our machines have stock available,once you ordered and made payment, we will deliver it asap. If it has no stock, we may need around 15-20 days for new production. Of course the delivery time is determined
by the order you purchase. We will try our best to produce faster if your schedule is urgent.
Q: Can I negotiate the prices for the machine?
A:Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request .
by the order you purchase. We will try our best to produce faster if your schedule is urgent.
Q: Can I negotiate the prices for the machine?
A:Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request .
Q:What is your price term and payment term?
A: Price term: EXW,FOB,CFR,CIF ect. ,Payment term: T/T or online on Alibaba.
Q:Can you give warranty of your products?
A:14 months warranty for our product, whole life technical support. we have professional business managers who can serve clients in 24 hours.
Q:How to install and operate the machine?
A:Most of the machine are fully assembled in our factory, so just open and remove the package and get power connected. For some machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.
Q:How to install and operate the machine?
A:Most of the machine are fully assembled in our factory, so just open and remove the package and get power connected. For some machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.
Q:Do you have some tools?
A:Yes, we have many kinds of tools and spare parts.
