Crs706 Common Rail Diesel Fuel Injector Pump Test Bench Common Rail Injector Test Bench
US$ 3,300 - 3,550
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XBD
Place of Origin:
China
Model Number:
CRS706
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Common Rail Injector Tester/ Common Rail Injector Tools Use for Common Rail InjectorUS$ 2,140 - 2,150MOQ: 1 Set -
Common Rail Injector Tester EUI EUP Injector Tester Cambox and Camshaft TesterUS$ 1,268 - 1,343MOQ: 1 Set
-
CRS-708 Common Rail Injector Pump Test Bench Test Unit Injector, Test Unit Pump, Common Rail Test BenchUS$ 5,000 - 5,500MOQ: 1 Set
-
CRS-708 Common Rail Injector Pump Test Bench With Eui EupUS$ 5,000 - 5,500MOQ: 1 Set
-
Common Rail Injector Tools Common Rail Injector And Pump TesterUS$ 2,140 - 2,150MOQ: 1 Set
Brand Name
XBD
Place of Origin
China
Model Number
CRS706
Power
Electronic
Product Description

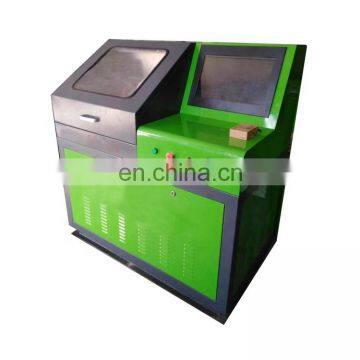

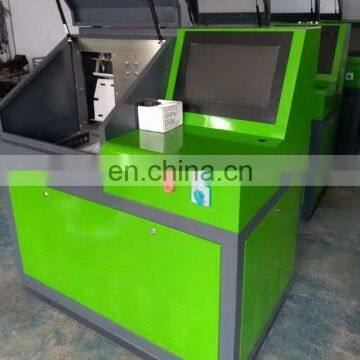

CRS 706 high pressure common rail injector test bench
CRS706 Fuel Injection Test Bench is newly designed by our company for testing common rail fuel injector, adopting 0~1800bar rail force, freely regulate the rail pressure, and can test fuel injector of BOSCH, SIEMENS, DELPHI, DENSO, etc.. It is controlled by industrial computer, and has windows system, and 19 inches LCD monitor. Fuel measuring system adopts measuring cup (standard 2 cups, and can add 2-6 cups as required by clients). More than 400 kinds of inner fuel injector data can be checked and stored. It has reliable performance, accurate measurements, and organic-glass protection door. It is easy and safe to operate.
1 |
The rated output power |
5.5KW |
2 |
The main power supply |
380VAC/ |
3 |
Number of phase |
3-phase |
4 |
Frequency |
50 Hz/60Hz |
5 |
Electric current |
30A (Max) |
6 |
Oil temperature control |
heating/air cooling |
7 |
Oil temperature setting |
40°C |
8 |
Temperature of using environment |
<35°C |
9 |
The maximum common rail pressure |
180Mpa |
10 |
Common rail pump |
Bosch CP3.3 |
11 |
Control circuit voltage |
DC24V/DC12V |
12 |
ECU internal booster |
0-200VDC(Max) |
13 |
Test Oil tank capacity |
19L |
14 |
Noise level |
<85dB |
15 |
Weight |
350kg |
16 |
Net size (Height *width *length) |
141mm*85mm*120mm |
17 |
Packaging size(Height *width *length) |
150mm*95mm*130mm |
Common Rail Test Bench Features:
1, Timely controlled by industrial computer, windows operating system, touching screen operation.
2, Data displayed on 19 inch LCD monitor.
3, Adopt 0~1600bar rail force caused by high pressure common rail fuel injection pump.
4, Timely measure the rail force, and has protection for high pressure.
5, Fuel injector pulse width of drive signal and frequency can be regulated.
6, Can freely set times and duration of injections.
7, More than 400 kinds of injector data can be checked and stored.
8, Short- circle protection, has protective Shield, easy to operate.
9, Accurate measurement, simple operation, energy saving and low noise.
2, Data displayed on 19 inch LCD monitor.
3, Adopt 0~1600bar rail force caused by high pressure common rail fuel injection pump.
4, Timely measure the rail force, and has protection for high pressure.
5, Fuel injector pulse width of drive signal and frequency can be regulated.
6, Can freely set times and duration of injections.
7, More than 400 kinds of injector data can be checked and stored.
8, Short- circle protection, has protective Shield, easy to operate.
9, Accurate measurement, simple operation, energy saving and low noise.
- Functions:
1, Test Brands: BOSCH,DENSO,DELPHI,SIEMENS;
2, Test 2 pieces common rail injector at one time
3, Test leak tightness of high pressure common rail diesel fuel injector.
4, Test estimated injection
5, Test maximum fuel quantity
6, Test launching fuel quantity
7, Test returned fuel quantity
8, Test average fuel quantity
9, Check and store data.
2, Test 2 pieces common rail injector at one time
3, Test leak tightness of high pressure common rail diesel fuel injector.
4, Test estimated injection
5, Test maximum fuel quantity
6, Test launching fuel quantity
7, Test returned fuel quantity
8, Test average fuel quantity
9, Check and store data.
