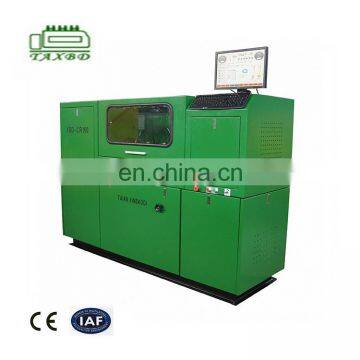

XBD-CR3000A Diesel common rail test bench
Data of common rail test bench
Main motor speed | 0-4000 r/min, can be adjustable |
Motor power | 7.5kw, 11kw, 15kw, 18.5kw optional |
Fuel Injector open voltage | Control range: 12v, 80v, 150v Control accuracy: phase adjustment |
Injector opening frequency control | 0-1000HZ Control accuracy: 1HZ
|
Fuel injector hold time | Control range: 0-65535us |
Delivery oil count | Control times: 0-1000times Control accuracy: 1 time |
Fuel pressure control | 0-2000 bar Control accuracy: 1bar |
Electronic power | 3 phase 380V / 3 phase 220V optional |
Details of product

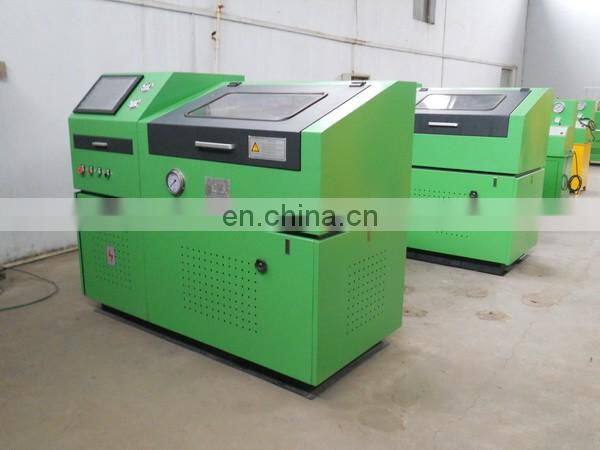

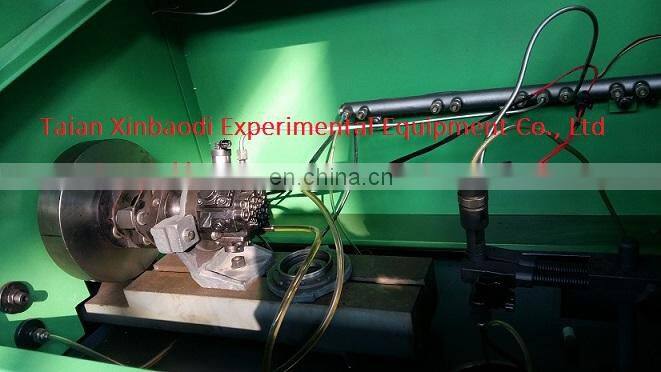

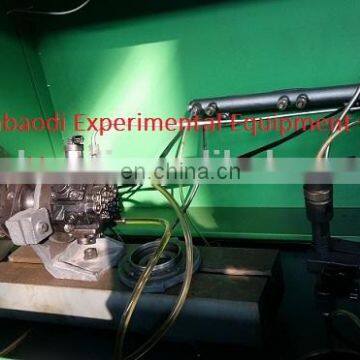

Common Rail Injector and Pump Test Bench is specially designed by us for testing common rail fuel injector and common rail pump, having advanced functions and accurate measurements. It is controlled by industrial computer and has windows operation system. It automatically measures and displays fuel quantity, checks, and stores and revises the tested data and generates database which can be freely updated. It adopts 0~1600bar rail force caused by original BOSCH high pressure common rail fuel injection pump, and automatically regulates the rail pressure. It can test the fuel injector and pump produced by BOSCH SIEMENS, DELPHI, DENSO, having reliable functions, accurate measurements, organic-glass protection door, and easy operation.
1. Timely controlled by industrial computer, windows operating system
2. Fuel quantity measured by sensor and displayed on 19 inch LCD monitor.
3. Database can be checked and stored.
4. Breakdown can be remote diagnosed.
5. Adopt 0~1600bar rail force caused by original BOSCH high pressure common rail fuel injection pump.
6. Compulsory refrigerated system control the fuel temperature.
7. Timely measure the rail force, and have protection for high pressure.
8. Fuel injector pulse width of drive signal and frequency can be regulated.
9. Can freely set times and duration of injections of the fuel injector.
10. Short- circle protection
11. Accurate measurement, simple operation, energy saving and low noise.
Company profile

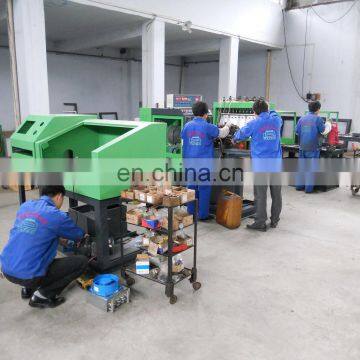

Taian Xinbaodi Experimental Equipment Co., Ltd., located in Taian City Shandong Province P.R. China, is a leading manufacturer specializing in producing and exporting Diesel Fuel Injection System Testing Equipments in China, is available for traditional diesel fuel injection pump test bench, common rail (CR) pumps and injectors test bench, large special oil pump test bench, PT-CUMMINS pump and injectors test stand, In-line electronic controller pumps test system, EUI/EUP test system, Nozzle Tester, diesel tank cleaning machnes, and assemble and disassemble tools of the pumps.
Others products
We have more model products for testing traditional mechanical pump.
Such as XBD-CR100 common rail system test bench by
https://www.china.cn/product-detail/High-Quality-Diesel-Powered-Common-Rail_1476062888.html?spm=a2747.manage.list.520.7ecb3004Spx6k8
You can also check more information by
https://xinbaodi.en.china.cn/productgrouplist-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_Series.html?spm=nav.5.5b9555bfH8uwzt
Certificate
Package
The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.
Contact
TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD
Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA
Mob:0086-13562896072
WeChat: 0086-13562896072
WhatsApp: 0086-13562896072
Skype: testbench201010
E-mail: testbenchina*
Website: https://xinbaodi.en.china.cn
FAQ
Q: How many days to produce this test bench?
A: It need 5-20 days to produce the test bench.
Q:How can I pay for it?
A:We support TT payment, West Union, and L/C etc.
Q:How to sign an order?
A:We can sign an order offline or online on Ali.
Q:How long of warranty?
A:12 months
Q:Do you have some repairing tools?
A:Yes, we have many kinds of repairing tools for common rail injector and pump.
