XBD-CRI200 Diesel Common Rail Injector Test Bench

XBD-CRI200 Diesel Common Rail Injector Test Bench photo-1
XBD-CRI200 Diesel Common Rail Injector Test Bench photo-2
XBD-CRI200 Diesel Common Rail Injector Test Bench photo-3
XBD-CRI200 Diesel Common Rail Injector Test Bench photo-4
US$ 3,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XBD
Place of Origin:
Shandong, China
Model Number:
CRI200
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai and as your demand
Delivery Detail:
Delivery time depends on order quantity.
Brand Name XBD
Place of Origin Shandong, China
Model Number CRI200
Power Electronic
Usage Auto Testing Machine

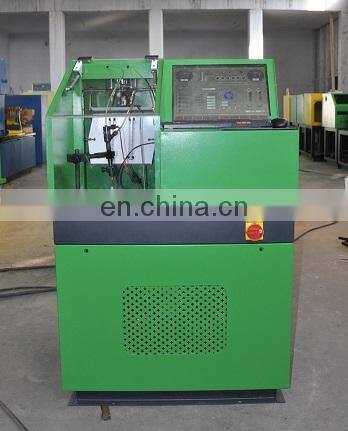

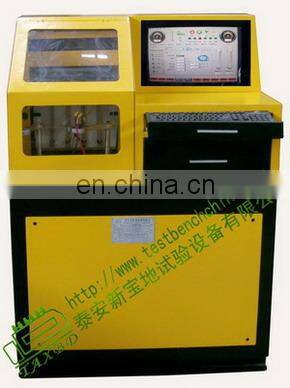

XBD-CRI200 Diesel common rail injector test bench

XBD-CRI200 Diesel common rail injector test bench

XBD-CRI200 Fuel Injection Test Bench is newly designed by our company for testing common rail fuel injector, adopting 0~1800bar rail force, freely regulate the rail pressure, and can test fuel injector of BOSCH, SIEMENS, DELPHI, DENSO, etc.. It is controlled by industrial computer, and has windows system, and 19 inches LCD monitor. Fuel measuring system adopts measuring cup (standard 2 cups, and can add 2-6 cups as required by clients). More than 400 kinds of inner fuel injector data can be checked and stored. It has reliable performance, accurate measurements, and organic-glass protection door. It is easy and safe to operate.



Common Rail Test Bench Features:

1, Timely controlled by industrial computer, windows operating system, touching screen operation.

2, Data displayed on 19 inch LCD monitor.

3, Adopt 0~1600bar rail force caused by high pressure common rail fuel injection pump.

4, Timely measure the rail force, and has protection for high pressure.

5, Fuel injector pulse width of drive signal and frequency can be regulated.

6, Can freely set times and duration of injections.

7, More than 400 kinds of injector data can be checked and stored.

8, Short- circle protection, has protective Shield, easy to operate.

9, Accurate measurement, simple operation, energy saving and low noise.

 XBD-CRI200 Diesel common rail injector test bench



Functions:

1, Test Brands: BOSCH,DENSO,DELPHI,SIEMENS;

2, Test 2 pieces common rail injector at one time

3, Test leak tightness of high pressure common rail diesel fuel injector.

4, Test estimated injection

5, Test maximum fuel quantity

6, Test launching fuel quantity

7, Test returned fuel quantity

8, Test average fuel quantity

9, Check and store data.







Company profile

Taian Xinbaodi Experimental Equipment Co., Ltd., located in Taian City Shandong Province P.R. China, is a leading manufacturer specializing in producing and exporting Diesel Fuel Injection System Testing Equipments in China, is available for traditional diesel fuel injection pump test bench, common rail (CR) pumps and injectors test bench, large special oil pump test bench, PT-CUMMINS pump and injectors test stand, In-line electronic controller pumps test system, EUI/EUP test system, Nozzle Tester, diesel tank cleaning machnes, and assemble and disassemble tools of the pumps.

XBD-CRI200 Diesel common rail injector test bench



Other product

We have more model products for testing traditional mechanical pump.

Such as XBD-CR100 common rail system test bench by

https://www.china.cn/product-detail/High-Quality-Diesel-Powered-Common-Rail_1476062888.html?spm=a2747.manage.list.520.7ecb3004Spx6k8



You can also check more information by

https://xinbaodi.en.china.cn/productgrouplist-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_Series.html?spm=nav.5.5b9555bfH8uwzt



Certificate

XBD-CRI200 Diesel common rail injector test benchXBD-CRI200 Diesel common rail injector test bench



Package

The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.

XBD-CRI200 Diesel common rail injector test bench
