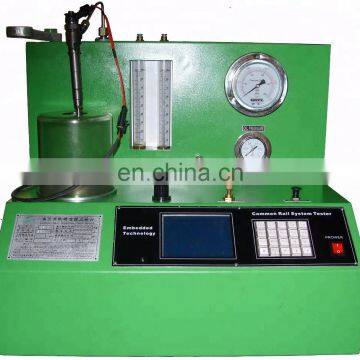

Common rail injector tester XBD-CRIA200
Taian Xinbaodi Experimental Equipement Co.,Ltd, is the leading manufacturer specializing in producing and exporting Diesel Fuel Injection System testing equipments in China. is available for the following products.
1)Traditional diesel fuel injection pump
2)CR(Common Rail pump Tester)
3)CRI(Commom Rail Injectors Tester)
4)Injectors Test stand
5)In-line electronic controller pumps
6)EUI/EUP test system
7)Nozzle Tester
8)PT-CUMMIN pump
9)EDC(Electronic Diesel Controller)
10)Many spares parts of pumps
.CRIA200 can be used to test the following pumps: BOSCH, DENSO, DELPHI, SIEMENS and the last of SIEMENS is available on request.
.Technical parameters
Control range | Control accuracy | |
Injection open pressure | 24v/80v/150v | Stage regulator |
Injection open frequency | 0-1000HZ | 1HZ |
Injection open hold time | 0-65535us | 1us |
Delivery counts | 0-1000 | 1 times |
Fuel pressure control | 0-200MPA | 1MPA |
Pump Model | CP1/CP2/CP3/HP0 | |
Control way | PID | |
Power | 220V | |
Work Temperature | 0-40°C | |
Relative Humidity | 20~90%RH | |
.Functions
1 Checking of the solenoid valve of injectors.
2 Measurement of the delivery and overflow of CRI.
3 Watching of CRI injector's spray.
4 Checking of the sealing of CRI.
5 Checking of the opening pressure of injectors.
6 Checking of the sealing of injectors.
7 Watching of the injector's spray.
1 Feeding pressure : 0-180Mpa.
2 Pressure gauge : Feeding pressure gauge : 0-250Mpa
Air gauge :0-1.6Mpa.
3 Graduate :90ml/2 piece.
4 Fuel tank :2.5L.
5 Air in: 0.8Mpa , 36L/Min.
6 Electrical power in: AC220V/50(60)Hz.
.The color you want to has many choices
Our commpany pay attention to the products of quality so we confirm that you must be satisfy with our equipments.
The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.
Other products
We have more model products for testing traditional mechanical pump.
Such as XBD-CR100 common rail system test bench by
https://www.china.cn/product-detail/High-Quality-Diesel-Powered-Common-Rail_1476062888.html?spm=a2747.manage.list.520.7ecb3004Spx6k8
You can also check more information by
https://xinbaodi.en.china.cn/productgrouplist-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_Series.html?spm=nav.5.5b9555bfH8uwzt
Workshop
With introduced technology from Italy and our own advanced technical teams, our products have reliable quality and good prices, and are desired testing equipments for domestic and overseas auto repair industry.
Certificate
FAQ
Q: How many days to produce this test bench?
A: It need 5-20 days to produce the test bench.
Q:How can I pay for it?
A:We support TT payment, West Union, and L/C etc.
Q:How to sign an order?
A:We can sign an order offline or online on Ali.
Q:How long of warranty?
A:12 months
Q:Do you have some repairing tools?
A:Yes, we have many kinds of repairing tools for common rail injector and pump
