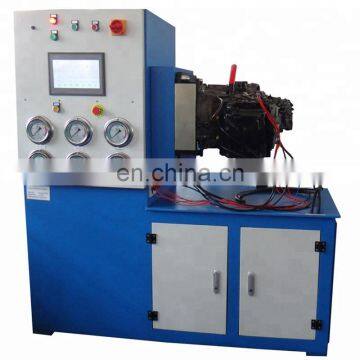

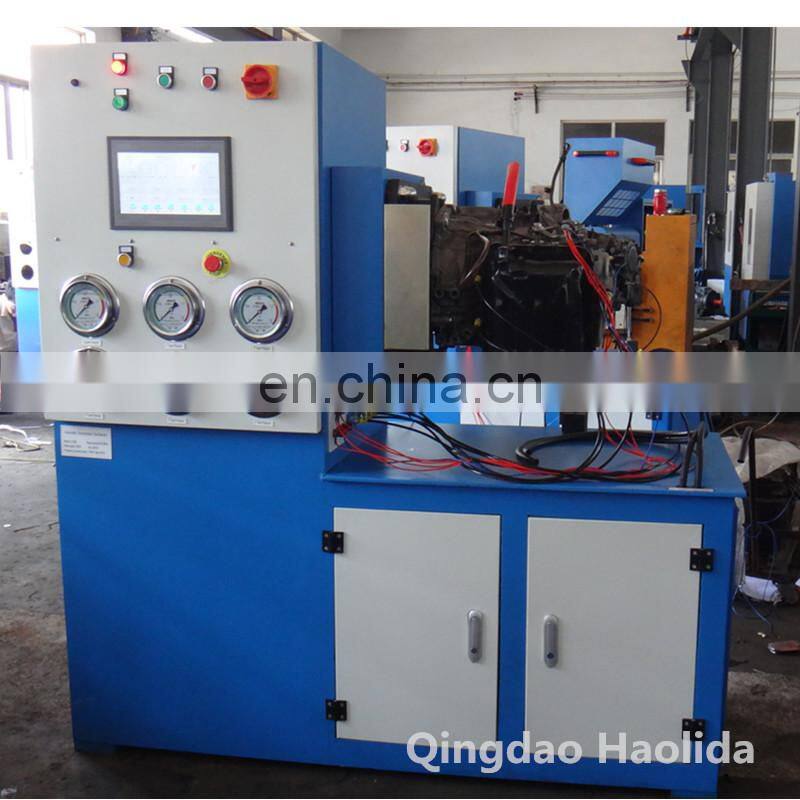

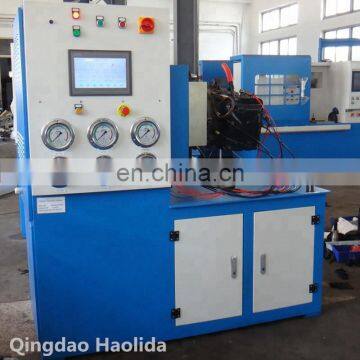

QZB model automobile automatic gearbox test bench
General introduction
1.Test and inspect hydraulic system of auto gearbox.
2.Check function of each valve of the hydraulic control system

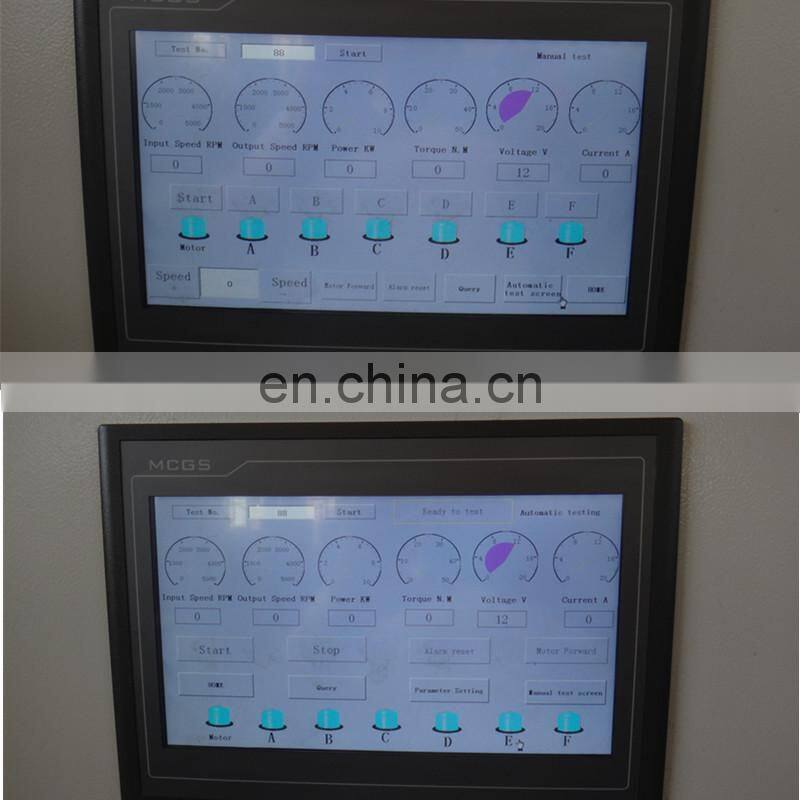

3.Gearshift test on automatic gearbox can be controlled by PLC+ touch screen.
4.Apply torque on the gearbox output shaft and test the mounting adjustment function of gearbox.
5.Check assemble defection for various parts using the hydraulic system.
6.Check the gearbox using rotary jig.
Technical parameter:
|
Model no |
QZB |
|
Language |
English, etc |
|
Material |
Metal plate |
|
Painting |
Powder painting, durable and beautiful |
|
Color |
Blue |
|
Voltage |
380V 50Hz 15A, DC: 12V, 5A |
|
PC controller |
DC: 12V PLC and touch screen to control, operate, display, store and print the test report, software with a pre-set windows, the users can preset and input the parameter of the tested gearboxes, automatic running |
|
Pressure test range |
Max working pressure: 0-7.5MPa, Secondary adjusted pressure: 0-7MPa |
|
Branch oil pressure |
Hydraulic gearbox: 0-2.1MPa, accumulator: 0-2.1MPa |
|
Accessories: |
|
|
Accessory wires , etc. |
|
|
Others you may want to know: |
|
|
MOQ |
1set |
|
Warranty period |
12 months |
|
Payment term |
T/T 50% in advance, the balance should be paid before delivery (negotiable) |
|
Delivery time |
30 days after receiving down payment |
|
HS code |
90312000.90 |
