Electric Press Machine
- Qingdao China
- T/T Credit Card
You May Like
Product Details
| Brand Name | Haolida | Place of Origin | Shandong, China | |
Product Description

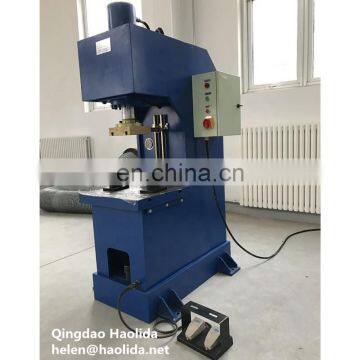

DYYL-C model electric hydraulic press
General introduction
1. This machine is composed of frame, hydraulic power pump station, hydraulic cylinder, working platform, electrical apparatus control system, etc.
2. It is mainly used for disassembly and alignment of parts in the auto repair industry, and can also be used for the suppression of board products and parts.
Technical parameter:
Model no | DYYL-C |
Material | U-steel |
Painting | High quality paint |
Color | Blue |
Voltage | 380V/220V 50 Hz (other voltage acceptable) |
Motor power | 3KW |
Maximum working pressure | from 30-200T (customized) |
Rated working pressure of oil pump | 35Mpa |
Maximum working pressure of oil pump | 41Mpa |
Center depth of working platform | 290mm |
Working platform size | 510*460mm |
Accessories: | |
Working plate, support tools, etc. | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 20 days after receiving down payment |
Click for more detail:
https://haolida.en.china.cn/productgrouplist-209530477/Manual_Pedal_Electric_Hydraulic_Press_Series.html?spm=nav.7.19dc4f04exjBIF
Similar press mahcines:
Why Choose us:
1. 32 years’ design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
