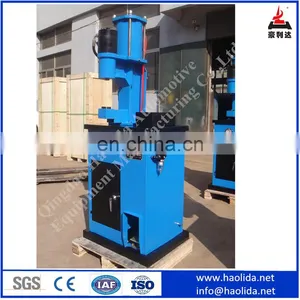

QY-6 Model Pneumatic Hydraulic Brake Shoe Riveting Machine
General introduction
1.It uses compressed air as power source (air pressure is adjustable)
2.It is used for riveting rivets of all kinds of brake shoesbrake discbrake drumbrake lining brake pad and other auto parts
Advantages:
1.It uses compressed air as its power source and makes the riveting by hydraulic pressure, it is safe to operate.
2.It features novel structure, easy operation, stable center alignment and adjustable riveting force etc.
3.It is suitable for heavy duty truck brake lingings,etc
4.Pressure can be adjusted according to size and material of the rivets
5.Pedal room is big
6.With cabinet for accessories
7.Good discount based on order quantity
Technical parameter:
Model no |
QY-6 |
Material |
Metal plate |
Painting |
High quality paint |
Color |
Blue&black |
Max rivet force |
60KN(6T) |
Working air pressure |
0.5-0.9Mpa(Adjsutable) |
Suitable rivet diameter |
3-10mm |
Stroke of the riveter |
40mm |
Bracket adjustable height |
20mm |
Accessories: | |
|
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm | |
Others you may want to know: | |
MOQ |
1set |
Warranty period |
12 months |
Payment term |
T/T 100% in advance |
Delivery time |
7 days after receiving downpayment |
HS code |
8463900090 |
Packing sizes |
Export plywood case N.W: 95KG G.W: 115KG Size: 640*570*1540mm=0.56CBM |
20’’ container |
50pcs/90pcs |
Why Choose us:
1.32 years’ design,development and produce experience
2.Professional R&D team
3.Strict QC
4.A good pre-sale and after-sale service
5.Can design and make according to customer’s requests
