ZM-280II Model Brake Shoe Riveting and Grinding Machine
- 50 Set / Sets per Month
- Qingdao/Shanghai/Guangzhou China
- T/T Credit Card
You May Like
Product Details
| Brand Name | Haolida | Place of Origin | China | |
| Warranty | 12 Months |
Product Description

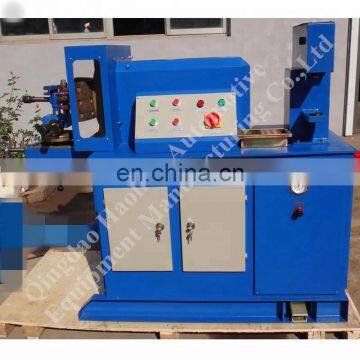

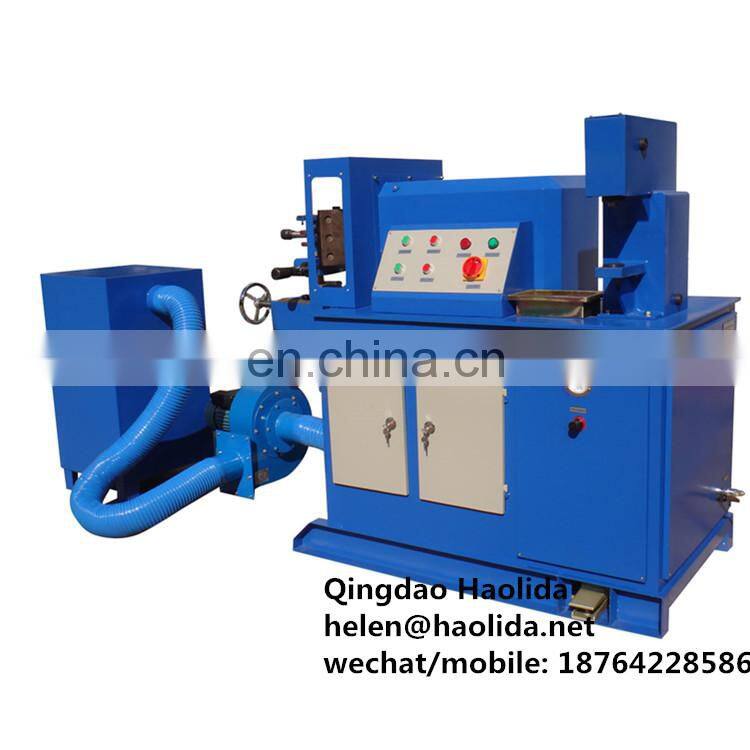

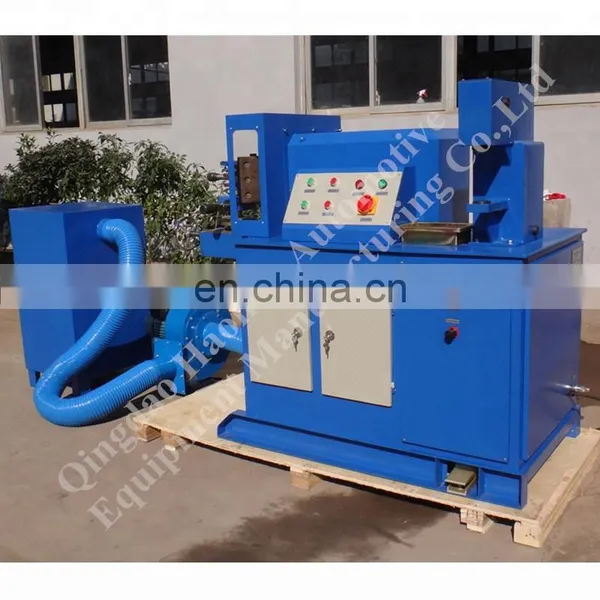

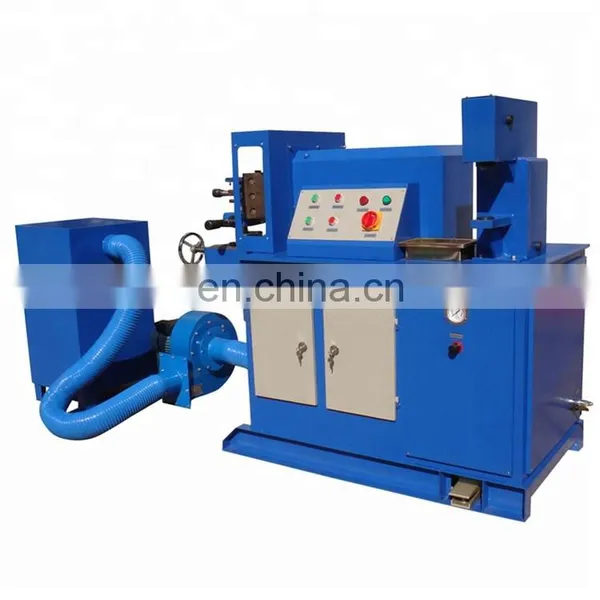

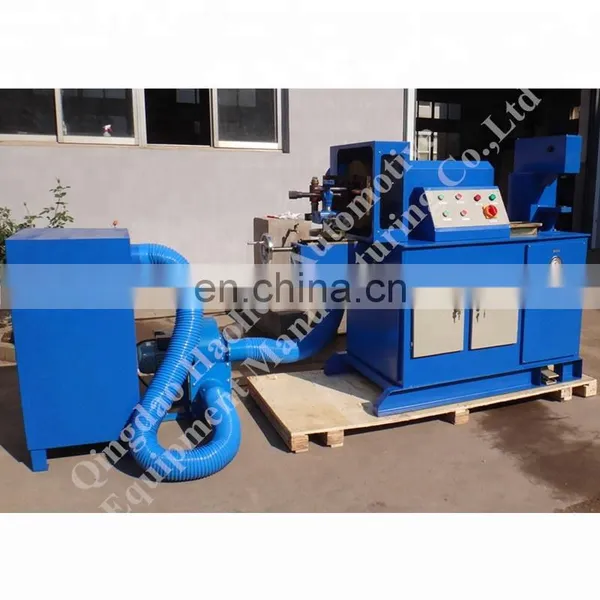

ZM-280II Model Brake shoe riveting and grinding machine
General introduction
It is used for riveting rivets of all kinds of brake shoesbrake discbrake drumbrake lining brake pad and other auto parts.
It can grind any sizes of brake shoes
It is matched with dust collecting system, to collect dust, it is environment friendly.
Technical parameter:
Model no | ZM-280II |
Material | Metal plate |
Painting | High quality paint |
Color | Blue&black |
Max rivet force | 60KN(6T) |
Suitable rivet diameter | 3-10mm |
Power | 1.5KW |
RPM of grinding wheel spindle | 3000r/min |
Max grinding width | 280mm |
Accessories: | |
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 100% in advance |
Delivery time | 10days after receiving down payment |
HS code | 8463900090 |
Packing sizes | Export plywood case 1300*780*146mm=1.48CBM N.W: 90kgs G.W: 120kgs |

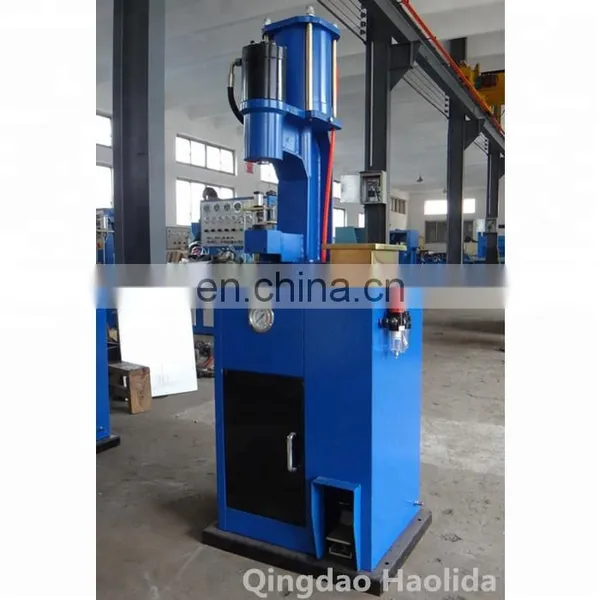

Other brake shoe rivet and grind mahcines:
Click for more details:
https://haolida.en.china.cn/productgrouplist-209531554/Riveting_and_Grinding_Series_for_Brake_Shoe.html?spm=a2700.icbuShop.prup15aafb.10.5334678c5qfCgg
Why Choose us:
1. 32 years’ design, development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
