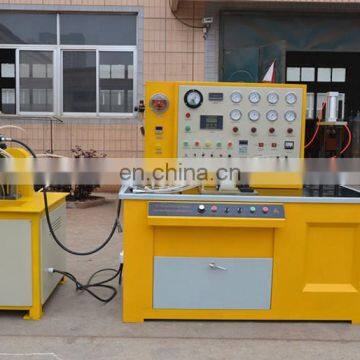

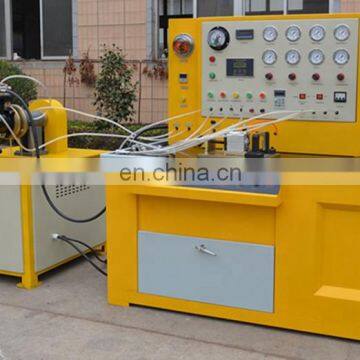

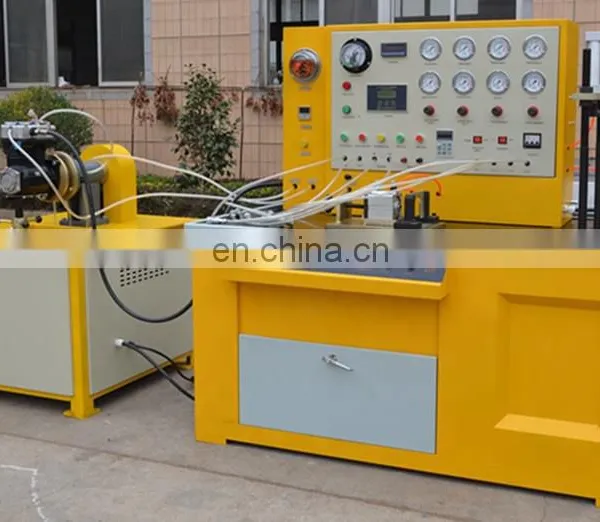

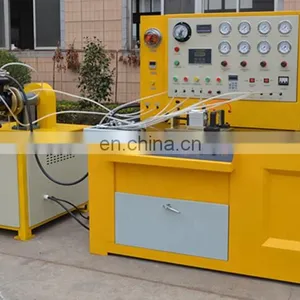

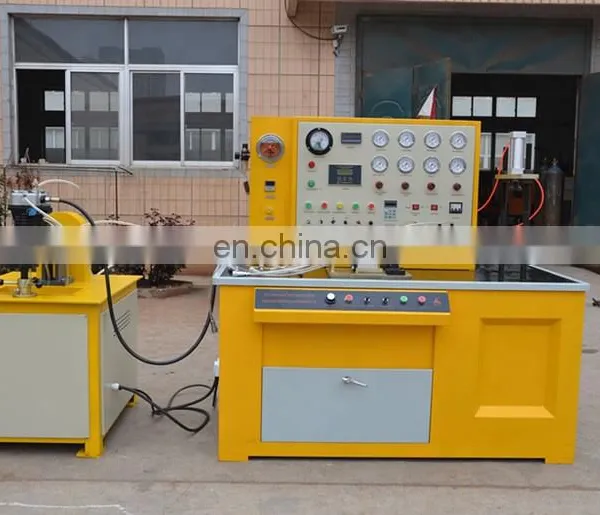

QYZ-2 Model Air Compressor Test Bench

     Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacture of automotive maintenance and testing equipments.

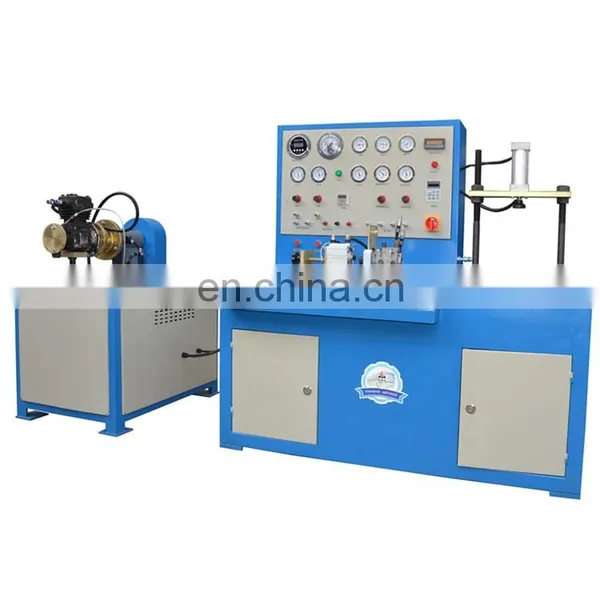

QYZ-2 model air braking system test bench

General introduction

This air braking system test bench is used mainly for testing performance of air compressor, master valve, air chamber, quick release valve and four-circuit valve in brake system of high, medium and low models automobiles at home and abroad and carrying out double-chamber or three-chamber test of master valve.

It can be matched with PLC touch screen computer to operate, display, save & print test results and curves.

Test items:

air compressor: The time required by air compressor to reach specified pressure value when air compressor runs at rated RPM.

Master valve: the required time of inflating air from main tank into air chamber through master valve (the time through air);

Air chamber: after air is inflated from main tank into air chamber to reach set pressure value, hold the pressure.

Quick release valve: after air is inflated from main tank into sub-tank through quick release valve to reach set pressure value, hold the pressure.

Four-circuit valve: the same with test of quick release valve.

Relay valve: test its on-off and air impermeability.

Differential valve: test its on-off and air impermeability.

Test the magnetic valve performance in air braking system.

Technical parameter:

 Similar test benches for air braking system:

Why Choose us:

1.      32 years’ design,development and produce experience

2.      Professional R&D team

3.      Strict QC

4.      A good pre-sale and after-sale service

5.      Can design and make according to customer’s requests
