Turbocharger Test Bench, Turbocharger Testing Machine
- Qingdao/Shanghai/Guangzhou China
- T/T Credit Card
You May Like
Product Details
| Brand Name | Haolida | Place of Origin | China | |
| Model Number | QZY-2C | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description

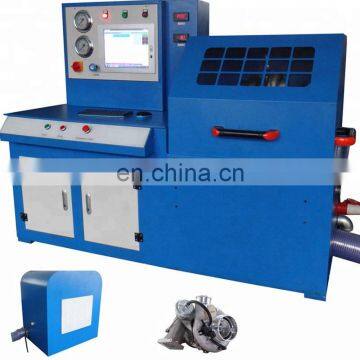

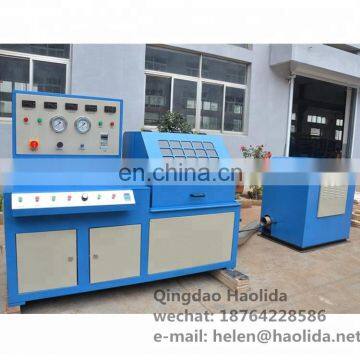

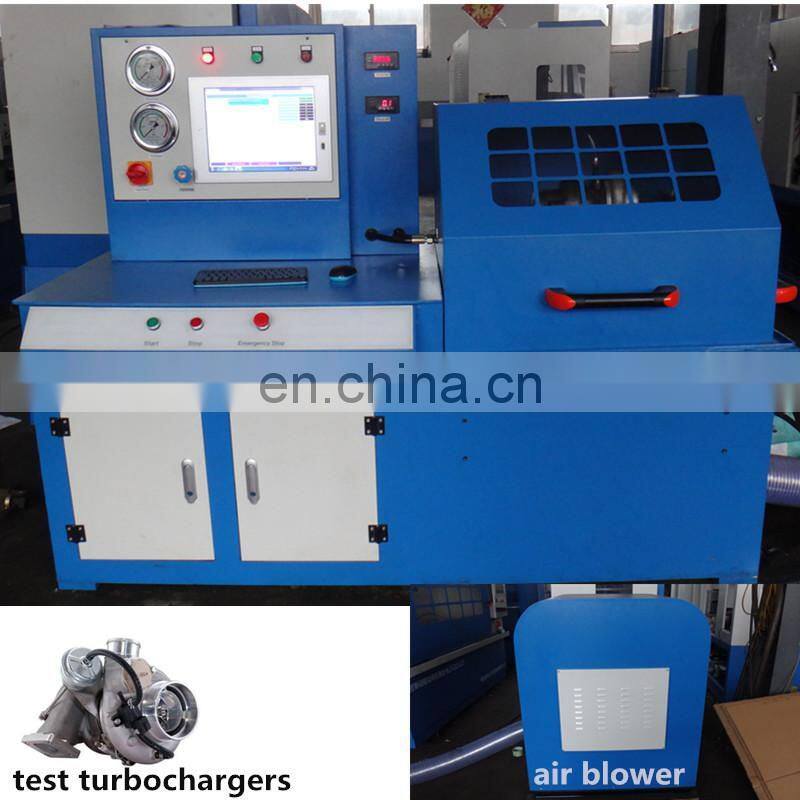

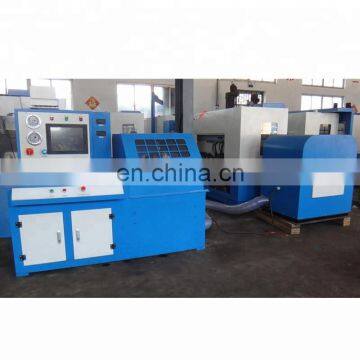

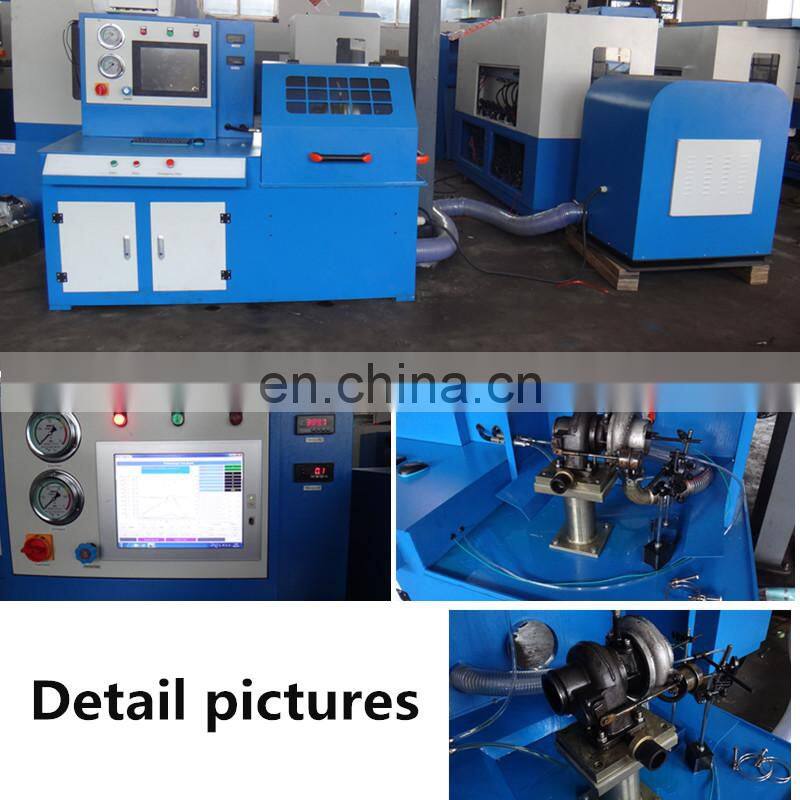

QZY-2C model turbocharger test bench
General introduction
This turbocharger test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values

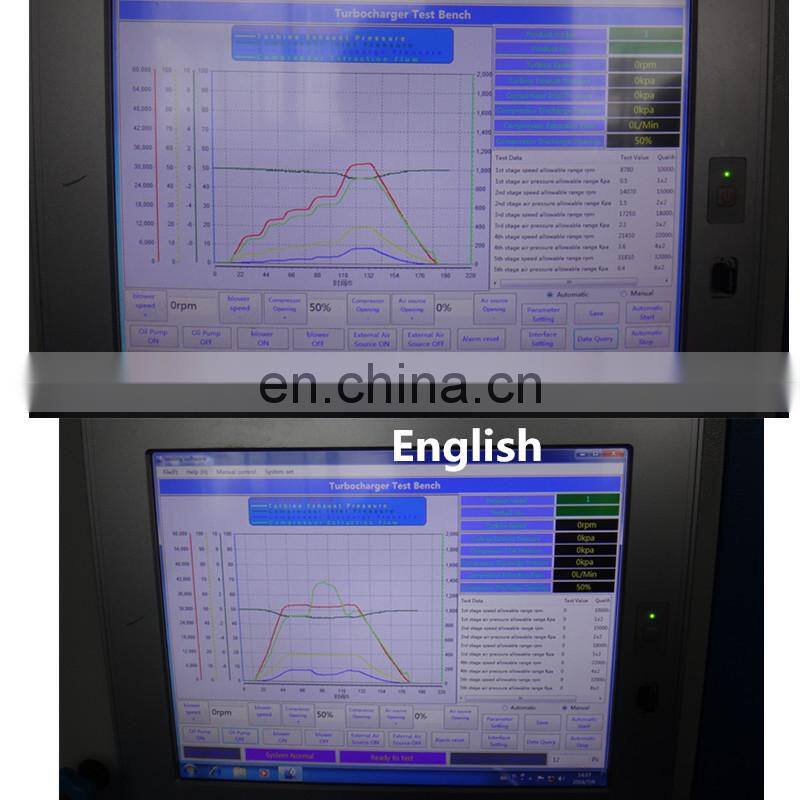

It is matched with Windows system computer to operate, display, save & print test results and curves, with 15’’ screen, the curve is much beautiful, the function is better.
Test items:
1. Test speed of turbocharger
2. Test air flow of turbocharger
3. Test boost pressure of turbocharger
4. Test air inlet pressure of turbocharger
5. Test lubrication state of turbocharger
Technical parameter:
Model no | QZY-2 |
Language | English |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 380V 50 Hz 3P |
Power of air generator | 5.5KW |
Frequency converter power | 7.5KW |
| |
Speed of air generator | 0-20000r/min(can be made with higher speed) |
Maximum air pressure of airflow generator | 5Kpa |
Maximum flow of of airflow generator | 1500cbm/h |
Power of oil pump | 370W |
Rated pressure of oil pump | 0-1.6Mpa |
Maximum displacement of oil pump | 6L/min |
Accessories: | |
Accessory wires, clamps, etc. | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 35 days after receiving downpayment |
HS code | 90312000.90 |
Packing sizes | 1850x1050x1600mm=3.11CBM 890x700x1040mm=0.65CBM Total is 3.76CBM |

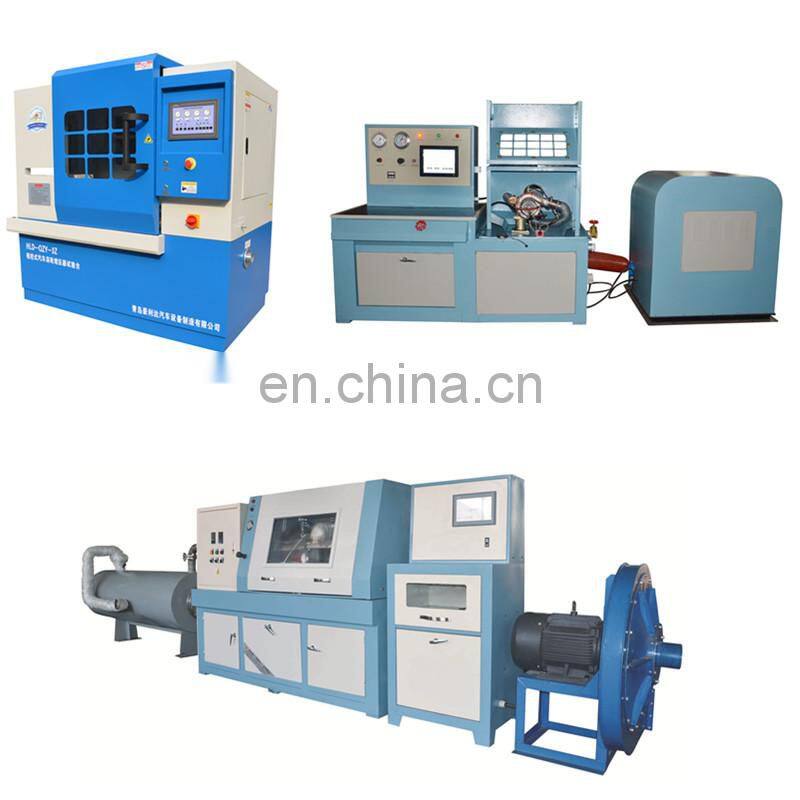

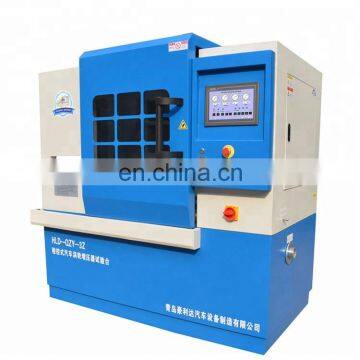

Similar other turbocharger test benches:
Click for more details:
https://haolida.en.china.cn/productgrouplist-802635106/Automobile_Turbocharger_Test_Bench.html?spm=a2700.icbuShop.prup15aafb.7.ee9d671cf3ls2N
Why Choose us:
1. 32 years’ design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
