Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacture of automotive maintenance and testing equipments.

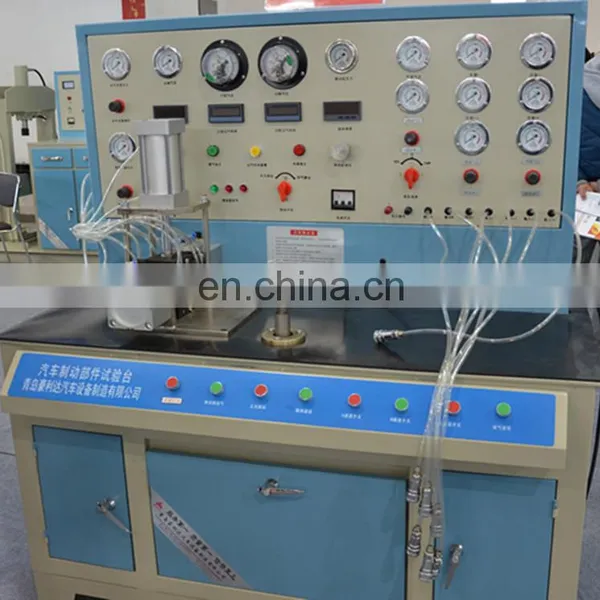

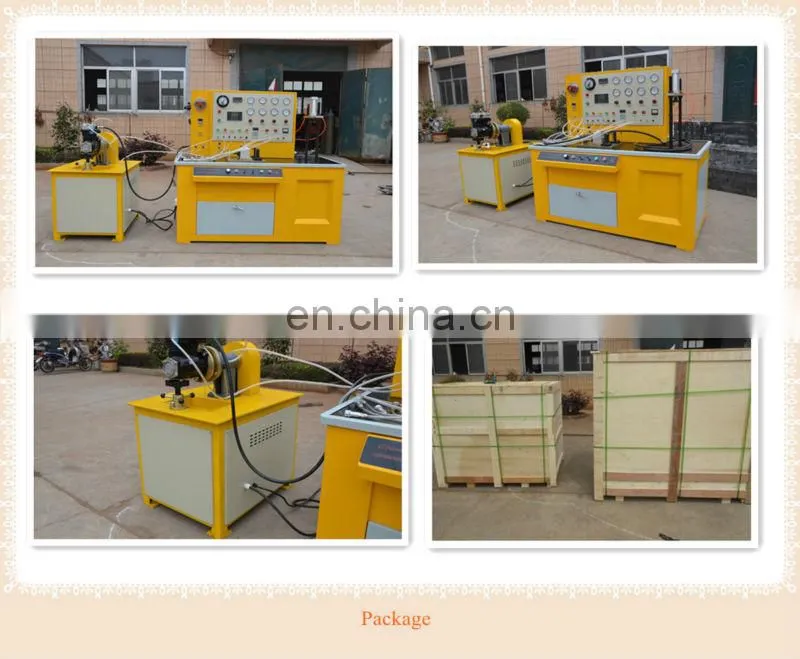

QYZ-2 Model Automobile Braking System Test Bench
Braking System Test Bench, brake test bench, test bench
1.Function Introduction (double-chamber or three-chamber test)
This test bench is used mainly for testing performance of air compressor, master valve, air chamber, quick release valve and four-circuit valve in brake system of high, medium and low models automobiles at home and abroad and carrying out double-chamber or three-chamber test of master valve. As test equipment of automobile maintenance, it is especially applicable for maintaining and testing city bus and other all vehicles using air brake.
- The time required by air compressor to reach specified pressure value when air compressor runs at rated RPM.
- Master valve: the required time of inflating air from main tank into air chamber through master valve (the time through air);
- Air chamber: after air is inflated from main tank into air chamber to reach set pressure value, hold the pressure.
- Quick release valve: after air is inflated from main tank into sub-tank through quick release valve to reach set pressure value, hold the pressure.
- Four-circuit valve: the same with test of quick release valve.
2.Technical Parameter
- Working power :AC380V 50HZthree-phase four-wire
- Motor power : 5.5KW
- Variable frequency speed regulating range:no load 0-5000r/min load 0-2000r/min
- continuously: adjustable
- Volume of main air tank : 20L*2or 20L*3
- Volume of sub air tank : 2L*3
- Auxiliary tank of air pump:10L
- Requirement of external air source :0.8Mpa
- Microcomputer hour meter : 000.000--999.999Sadjustable
- Rated pressure of oil pump :0.5KPa
