| Features & Benefits |
|
1.Flow rate up to 4.5 GPM [17.0 LPM] 3.Automatically turn on and off 5.Easy to use, store, and carry on 7.Adjustable sprayer |
2.Can run dry without damage 4.UV-protected coiled hose coli 6.Built-in by pass valve 8.Quiet operation & smooth flowing |
| Product Name | SEAFLO 12 Volt DC Portable Car Washer Washdown Pump Kit 17.0 LPM |
| Pump Type | 4 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 4.5 GPM [17.0 LPM] |
| Max Pressure | 70 PSI [4.8 Bar] |
| Voltage | 12 VDC, and 24V, 115V, 230V are available |
| Max Amp | 17.0 A |
| Fuse | 25.5 A |
| Switch Type | On Demand [Cut-off Switch] & By Pass |
| Diaphragm Material | Santoprene |
| Valve Material | EPDM |
| Duty Cycle | Intermittent |
| Self Priming | 6' [1.8 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 3/4" Quick Attach |
| Lead | 11" [28 cm] 16 AWG lead with 2-Pin connector |
The portable washdown system is designed for most of the wash down outdoor application. The high performance and easy installation makes it easier to use, even by a child. The design makes it is unnecessary to carry a tank when you use it.

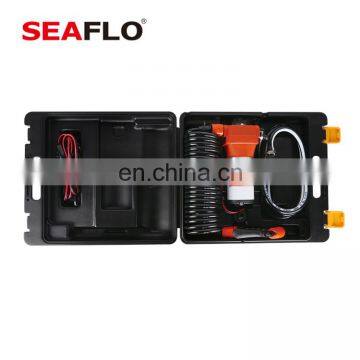

| Product Show |

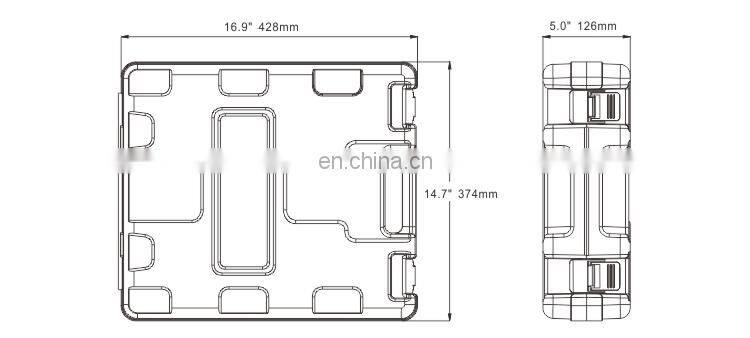

| Dimensions |
| Performance |
lacking
| Motor Heat Rise |
| Product Details |
lacking
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow GPM [LPM] |
Cut off Pressure PSI [BAR] |
Max Draw | Diaphragm | Valve |
| SFWP1-045-070-41 | 12 V | 4.5 [17.0] | 70 [4.8] | 17.0 A | Santoprene | EPDM |
| SFWP2-045-070-41 | 24 V | 4.5 [17.0] | 70 [4.8] | 9.0 A | Santoprene | EPDM |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 160 PSI [11.0 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 2.2 GPM [8.3 LPM]. Material can be adjusted according to your requirement.
Package Infomation
|
Unit Pump Weight | 10.80 lbs [4.90 kg] |
| Selling Unit Size (L x W x H) | 17.24" x 15.12" x 5.35" [43.8 x 38.4 x 13.6 cm] |
|
| Selling Unit Weight | 11.90 lbs [5.40 kg] | |
| Master Carton Qty | 3 pcs / carton | |
| Master Carton Size (L x W x H) | 18.60" x 15.70" x 18.00" [46.4 x 40.0 x 45.8 cm] |
|
| Master Carton Weight | 38.58 lbs [17.50 kg] |
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another questions, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit or www.seafloin.en.china.cn for more information.
