Home > Products > DC Water Pump > SEAFLO 21 Series 12V 4.1LPM 70PSI Electric Diaphragm Water Pump With 12V DC Motor For Agriculture

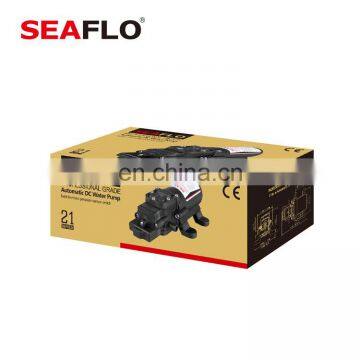

SEAFLO 21 Series 12V 4.1LPM 70PSI Electric Diaphragm Water Pump With 12V DC Motor For Agriculture
- 1000 Piece / Pieces per Month
- T/T Credit Card
- SEAFLO 21 Series 12V/24V 3.8LPM 60PSI Small Plastic Rechargeable Sprayer Water Pump
- SEAFLO 21 Series 12 Volt Water Pressure Pump On Battery With Pressure Switch
- SEAFLO 12V 15LPM 60 PSI Automatic Pressure Switch High Pressure Salt Water Pump With Battery
- SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture
- SEAFLO 21 Series 12 Volt Portable Solar Water Bottle Pump For Agriculture
- SEAFLO 12V DC 3GPM 45PSI Water Pump Company For Water Treatment System
Product Details
Brand Name: | SEAFLO | Place of Origin: | Fujian, China | Model Number: | SFDP1-011-070-21 |
Structure: | Diaphragm Pump | Pressure: | Low Pressure |
Product Description
Features & Benefits |
1.Flow rate up to 1.1 GPM [4.1 LPM] 3.Automatically turn on and off 5.Quiet operation 7.On demand or by pass use | 2.Can run dry without damage 4.Self priming & built-in check valve 6.Chemically resistant materials 8.Designed for spraying and fluid transfer |
Product Name | SEAFLO 21 Series 12V 4.1LPM 70PSI Electric Diaphragm Water Pump With 12V DC Motor For Agriculture |
Pump Type | 2 Chambers Positive Displacement Diaphragm Pump |
Max Flow Rate | 1.1 GPM [4.1 LPM] |
Max Pressure | 70 PSI [4.8 Bar] |
Voltage | 12 VDC, and 24V, 115V, 230V are available |
Max Amp | 4.0 A |
Fuse | 6.0 A |
Switch Type | On Demand [Cut-off Switch], and By Pass, none switch are available |
Diaphragm Material | Santoprene |
Valve Material | Viton, and EPDM is available |
Duty Cycle | Intermittent |
Self Priming | 4' [1.2 m] suction |
Max Fluid Temp | 140 °F [60 °C] |
Inlet & Outlet Port | 3/8" [10mm] hose barb, and contact us for more ports |
Lead | 14" [35 cm] 18 AWG lead |
The 21 Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 1.1 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
Product Show |
Dimensions |
Performance |
Motor Heat Rise |
Product Details |
Standard Pump Configurations
Model | Voltage | Open Flow GPM [LPM] | Cut off Pressure PSI [BAR] | Max Draw | Diaphragm | Valve |
SFDP1-010-040-21 | 12 V | 1.0 [3.8] | 40 [2.8] | 4.0 A | Santoprene | Viton |
SFDP2-010-040-21 | 24 V | 1.0 [3.8] | 40 [2.8] | 2.0 A | Santoprene | Viton |
SFDP1-007-070-21 | 12 V | 0.7 [2.7] | 70 [4.8] | 4.0 A | Santoprene | Viton |
SFDP2-007-070-21 | 24 V | 0.7 [2.7] | 70 [4.8] | 2.0 A | Santoprene | Viton |
SFDP1-010-060-21 | 12 V | 1.0 [3.8] | 60 [4.1] | 4.5 A | Santoprene | Viton |
SFDP2-010-060-21 | 24 V | 1.0 [3.8] | 60 [4.1] | 2.5 A | Santoprene | Viton |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 80 PSI [5.51 Bar]; Open flow can be adjusted from 0.5GPM [2.0 LPM] to 1.1 GPM [4.0 LPM]. Material can be adjusted according to your requirement.
Package Infomation
Unit Pump Weight | 1.35 lbs [0.61 kg] | |
Selling Unit Size (L x W x H) | 7.28" x 4.13" x 2.75" [18.5 x 10.5 x 7.0 cm] | |
Selling Unit Weight | 1.51 lbs [0.69 kg] | |
Master Carton Qty | 30 pcs / carton | |
Master Carton Size (L x W x H) | 15.43" x 13.19" x 14.05" [39.2 x 33.5 x 35.7 cm] | |
Master Carton Weight | 45.82 lbs [20.78 kg] |
More flow and pressure are available, please contact us to get catalog and price list.
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit or www.seafloin.en.china.cn for more information.
