- Best suited vision system for inspecting codes/marks on surface materials.
- Powerful features including locating missing, wrong, defective codes/marks.
- High speed, high frequency, high reliability.
- Easy installation, operation friendly, leading technology.

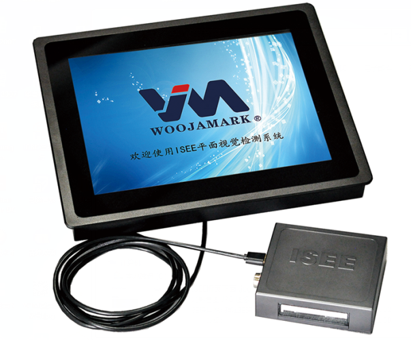

ISEE surface vision inspection system is adapting CIS (Contact Image Sensors) scanning technology. Without complicated optical accessories, adjustment of optical beam and depth of focus would not be the issue. Compared to CCD or COMS technology, the application of CIS has a number of unique advantages including design simplicity, small in size, and no distortion, especially in surface inspection application. ISEE system is based the most advanced image processing algorithm, which can be widely used in codes/marks inspection needed industries such as food, pharmacy, agriculture, printing, and etc. ISEE system is designed to be a just little book sized square box integrating all the main components inside, but producing high quality image results (300DPI).

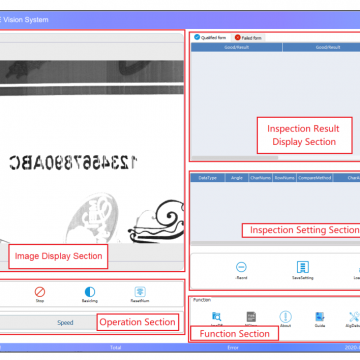

Powerful features of ISEE system, meeting all kinds of codes/marks inspection needs.
Items | ISEE Code Inspection System |
Scanning Area | 54mm*200mm |
Scanning Speed | Line Speed -80 meters/min, Frequency-700 times/min |
Scanning Distance(Sensor to Surface) | 1-2mm |
Image Density | 300dpi |
Scanning Content | Number.Letter,Character,Barcode,QR code, Comparative Database |
Data Processing | Building database,output as txt or Excel format file |
Detection Processing | Sound and light alarm, Rejection, Operation pause |
Power | DC 12V/2A,55W |
External Dimensions(L*W*H) | 112mm*105mm*32mm |
Industry Control Device | Windows 7 64 bits operating system, Dual-processor, 4G memory,64G SSD DISK, USD2.0 |
