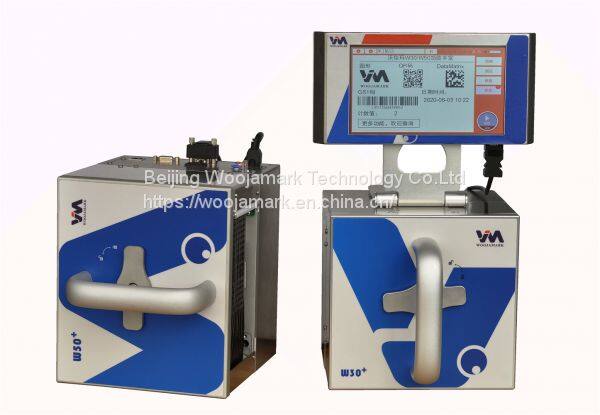

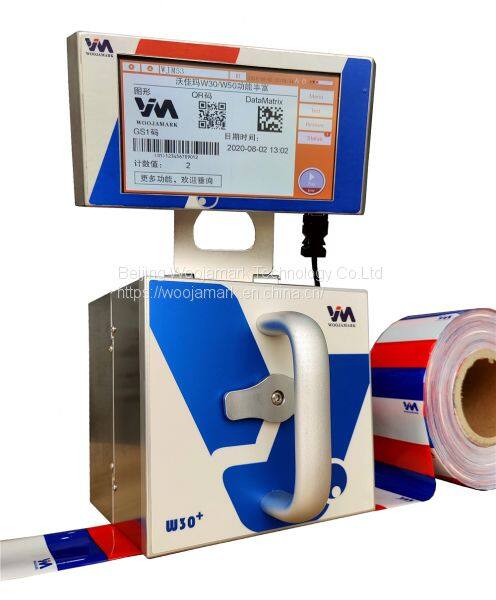

Intermittent Coder TTO W30+ Printer

W+ series TTO printer is our new released smart printer product surprising our customers and catering true needs from them to prompt omnibearing printing solution. It can be widely applied in various industries with flexible package such as food, health care, pharmacy, daily use, cosmetics,etc.

Not only W+ series printer performs excellent in printing works, it also enhances integrity with our optional ISEE code inspection system to achieve print and inspection together.W+series TTO printer raises customers’ brand value by meeting printing needs,reducing unnecessary inoperative period, preventing wastes or repeat working,and improving efficiency in manufacturing.

     Features:

· Excellent Quality Prints – improving your company brand image and quality.

· More Print Flexibility – can print real time, variable data, bar codes, QR codes, logo, pictures, dates, nutrition tables, etc. and can achieve the product traceability.

· Hot plugging supported touch screen controller:perfect for occasion with multiple printers

· Intermittent/Continuous Mode Combined – more flexible to meet customers’ coding requirements

· Universal design: Replacing old printers more easy,can be installed in different types of package lines

· Ribbon Saving – 0.1mm gap between prints, multiple saving modes help to reduce ribbon consumption and cost

· Wide Printing Area – max. 75mm (intermittent) and 150mm (continuous) in length

· Superior Printing Speed – Intermittent - 250 times/min, Continuous - 370 times/min at 300dpi.

· Self-adapting technology (patent )：makes installation more easier with better printing result

· Free Editing in Multiple Languages – Simplified Chinese, English, traditional Chinese, Spanish, Portuguese, French, Arabic, German, Russian, etc.

Function: Always Enhancing

   Hot plugging supported touch screen controller is perfect for occasion with multiple printers. Same one controller handle can be plugged or unplugged at any time to control multiple printers while printers are working, which prevents loss of suspending operation when controlling goes wrong.

   W30+/W50+ supports both of intermittent print mode and continuous print mode to save customers from trouble of inventory planning and to serve package lines with different print mode needs.

Installation: Preserve Compatible

   Dimension and mounting hole site of print unit of W30+/W50+ are universal design, which ensures its easy installation. When customers are replacing pre-owned TTO printers with W30+/W50+, existed mounting can be remained in using to save cost.

   Our modularized mounting design makes W30+/W50+ can be installed in different types of package lines with pillow packaging machines, horizontal/vertical packaging machines, premade pouch packaging machines, paging machines, rewinder machines, etc.

Performance: Keep Improving

   W30+/W50+ features with multiple saving modes such as compress saving mode, repeat print saving mode and position compensation mode. More than one saving modes can be applied together at same time to maximize saving on ribbons and cost.

   Big print area:

   Intermittent - 32x75mm, 53x90mm           Continuous - 32x150mm, 53x150mm

   High print speed:

   Intermittent - 250 times/min         Continuous - 370 times/min

  Line speed - 43 m/min

Experience: Mind Details

   Our unique self-adapting technology (patent pending) of print head supports print head to stick to its optimum state with adapting and adjustment by itself during running. The technology makes installation of printer easier, but with better printing result.

   Flattening design of Hall sensor of print unit ensures reliability and safety during installation and operation. And our special mounting style of the sensor secures its position below the backplane to protect the sensor from possible related abrasion and damage.

   Build-in 24V power source supports to set print signal independently from packaging machines when necessary.

Operation: Make it easy

   Only two ribbon guide rolls in ribbon cassette makes exchanging ribbon simple and easy.

   7 inches touch screen controller and user-friendly interface simplifies all the operation.

   Print content can be edited through our icon style menu of software handy in PC and transferable to printer by USB flash disk.

Vision: Following Trend

   For a long time, printers could only offer functions of printing without result inspection. But for now, inspection requirement becomes more and more significant within the whole printing process. Our W+ series printer brings integration of printing and inspection at the same time with our ISEE code inspection system to prevent missed print, wrong print, incomplete print, and even unreadable print effectively. Furthermore, the integrated system triggers warning and rejection during inspecting every single piece of print, which helps customers to avoid related complaint potentials and legal risks.

   Our outstanding and experienced R&D team from Woojamark persists in providing improving printing solutions to customized needs from our customers and related technical supports in any way constantly. Woojamark is always at the cutting edge of flexible package printing industry to serve our customers globally.

TTO Parameter
