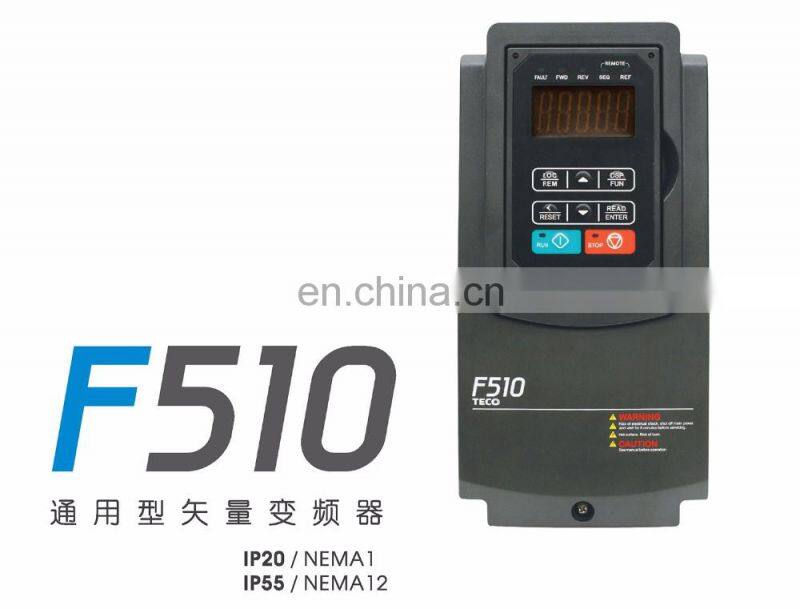

TECO F510 Universal Type Vector Frequency Converter ac Drive With Global Service

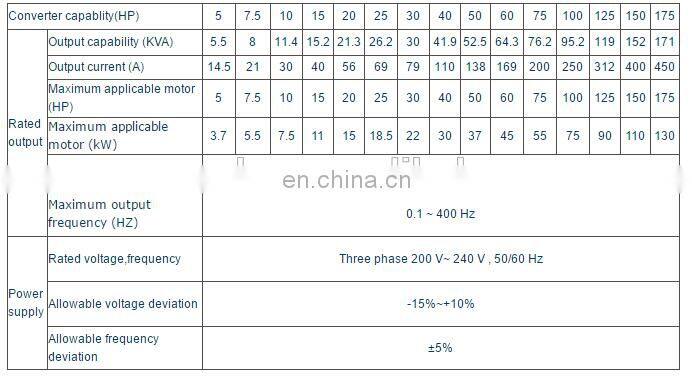

HP: 5 HP through 800HP

Features
Ideal product for fan and centrifugal pump applications:
        HVAC
       Wastewater industries
       Cooling towers
       Industrial pumping
       Irrigation
Built-in pump cascade control for up to 4 pumps
      Option card for control of up to 8 pumps
Two separate PID loop controls
Switch between PID loops based on input signal or real-time clock setting
Extensive monitoring and display capabilities
Real time clock built-in (RTC)
Conformal coating of all printed circuit boards (non-hazardous)
Plenum Rated
Built-in Modbus RTU, BACnet MS/TP, or Metasys (N2) communications via on-board RS485 or RJ45 connection
Built-in PLC functionality
Scalable process parameters to engineering units
Digital I/O
        6 Configurable digital inputs
        3 Configurable digital relay outputs
        Dedicated hardware safety input for user's emergency interface
Analog I/O
       2 Analog inputs and outputs
       PTC input
Pulse input and pulse output signals capable of up to 32 khz
3 modes of auto tuning to best adapt the F510 with the applied motor
Controls induction or permanent magnet motors

100 Mhz RISC process for ultra-high speed computations and rapid loop-time updates
