ABB ACS550 3kw three phase frequency converter for cooling fan

 What is the ACS550 Customer Value?

The ABB ACS550 AC drive combines a sophisticated microprocessor with an advanced IGBT power switching technology to deliver V/Hz, Closed Loop Flux Vector and Sensorless
Vector control of AC motors. Its intuitive control panel offers numerous benefits making it the most user-friendly panel in the drives industry. The extensive library of pre-programmed application macros maximizes convenience and minimizes start-up time. This drive can handle the most demanding industrial applications in an efficient,dependable and economic manner.

Where can it be used?

The ABB ACS550 standard drive can be used in a wide range of industries. Typical applications include pump, fan and constant torque use, such as conveyors. The ABB ACS550 standard drive is ideal for those situations where there is a need for simplicity to install, commission and use and where customizing or special product engineering is not required.

ABB ACS550 standard drive promises

− Quick delivery
− Easy installation
− Trouble-free start-up
− Intuitive operation

Highlights:

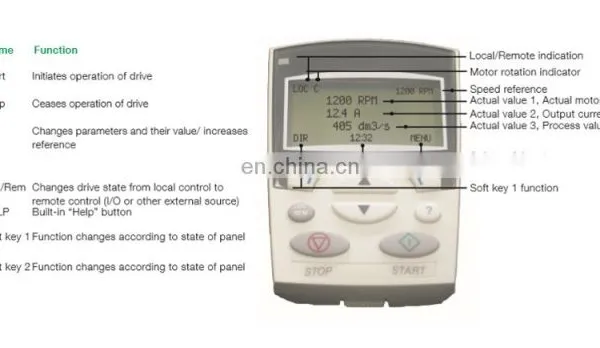

− Advanced control panel permitting intuitive operation
− Patented swinging choke for superior harmonic reduction (R1-R6) and AC line reactor (R8)
− Sensorless vector control
− Integral EMC filter as standard
− Built-in Modbus RTU and numerous internally mountable fieldbus adapters
− FlashDrop
− Coated boards for harsh environments
− UL, cUL, C-Tick and Gost-R approved
− Built-in brake chopper (10Hp, 230V / 15Hp, 480V and 600 V)
− Many assistants including Start-up, Drive Optimizer, Realtime Clock, Diagnostics, Maintenance, Serial and PID
− Seismic Certification to ICC AC-156 Criteria
