Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale

Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale thumbnail-1
Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale thumbnail-2
Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale thumbnail-3
Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale thumbnail-4
Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale photo-1
Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale photo-2
Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale photo-3
Automatic Digital Vegetable Cutter Slicer Machine Full SS304 for Sale photo-4
US$ 2790 - 2999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIMORE
Place of Origin:
China
Model Number:
HM-CHD80
Contact Supplier Request Quote Chat Now
Zhengzhou Himore Machinery Equipment CO.,LTD.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or Shanghai port or shenzhen port China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HIMORE
Place of Origin China
Model Number HM-CHD80
Type Cutter
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty one year
Weight 155KG
Dimension(L*W*H) 1200*660*1000mm
Condition New
Voltage 220V/50HZ or Customized
Power(W) 2.2KW

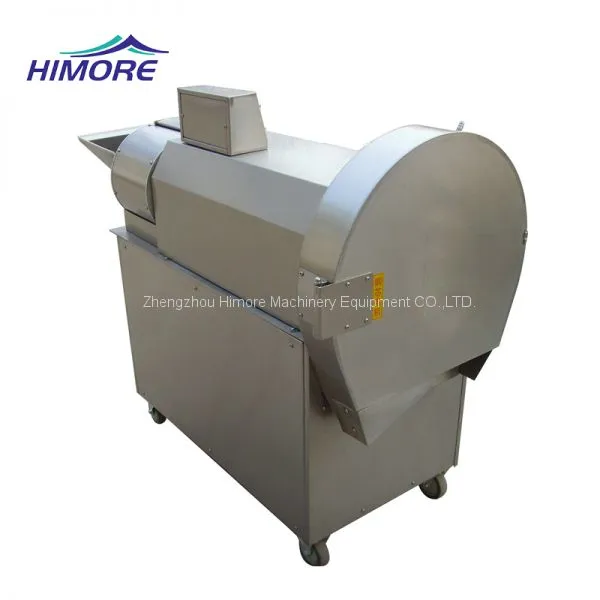

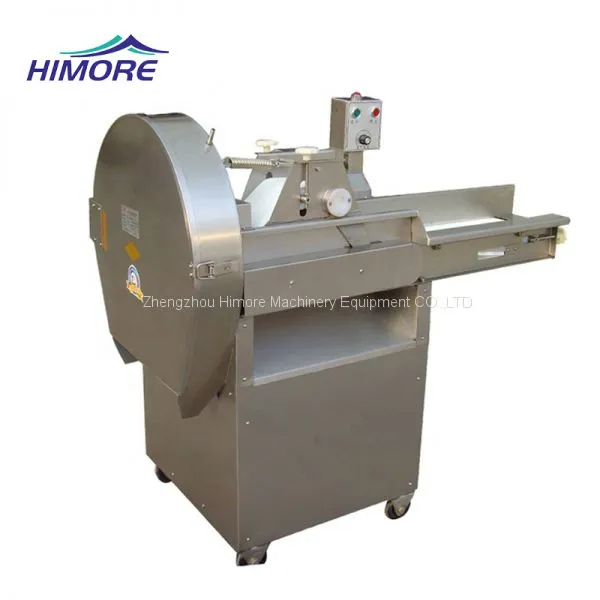

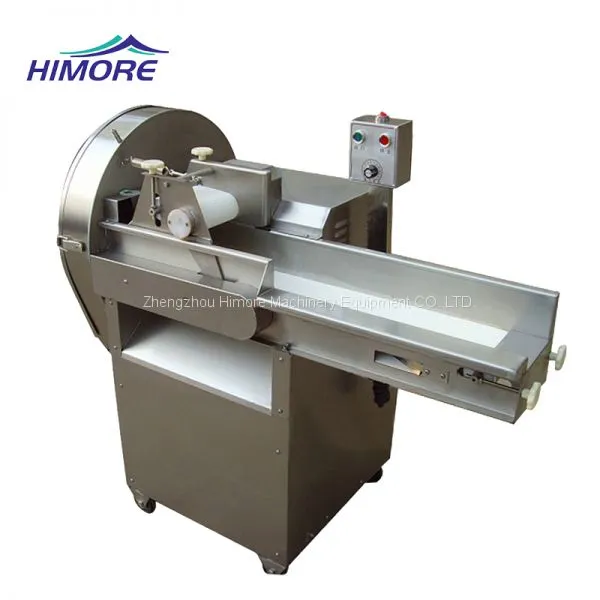

Automatic Vegetable Cutter Slicer Machine Full SS304 for sale


Instruction of vegetable cutter machine
HM-CHD-80 digital vegetable cutter machine is used to cut hard and soft root and leafy vegetables (cabbage, spinach, lettuce etc) into shreds and cut stem vegetables (celery, lemon, grass etc) into sections.
Suitable for cutting, slicing and dicing root and stem vegetable, also suitable for cutting leafy vegetables into different

size length.


Technical data of vegetable cutter machine:

Model
HM-CHD80
Power/Voltage
2.2Kw/220V/50HZ or Customized
Capacity
200-2000Kg/H
Weight
155Kg
Size
1200*660*1000mm
Cutting Size (Length)
1-30Mm(Adjustable)
Cutting Size (Slices)
1-20Mm(Adjustable)
Cutting Size (Shreds)
1-30Mm(Adjustable)
Function
Leafy And Stem Vegetable Cutting Length, Root Vegetable Slicing and Shredding Change Blade Molding.


Features of vegetable cutter machine

*  The whole machine is made of SS304 food grade material, cutter head and disc made of aluminium magnesium alloy.
*  Variable frequency control the cutting and belt moving speed.
*  Adopt a rotating cutter disc to cut vegetable into sections or slices, good quality cut surface, fresh and no damage to fibrous of cut product, the cutting thickness and size uniform.
*  The machine is high in efficiency, equals to 10 workers, easy to operate, low in energy consumption, hygienic and safety it is an ideal equipment for the fresh and dehydrated vegetables processing industry.


Main parts of vegetable cutter machine advantages:

1)Advanced Digital Control Box
Advanced digital adjustable system for easy operating;
Dual Frequency converter for better speed regulation of both blade and belt;
Cutting size1-40mm can be finished by adjusting the blade and belt speed;
2)Input Cutting Belt Adjusting System
With height adjustor, more accurate and easier to adjust feeding port height.
Input belt height upto 10cm, increase capacity and efficiency;
More convient to operate for the users.
3)Patent Juice Outlet Design
Patent design, no other suppliers with it; Juice and water during cutting flow out;More clean and sanitation for cutted product; Waterproof and protection of the machine.
4)Residue Cleaning Port Design
Patent designing;Humanized design;More easier and convenient to clean the belt.SS304 Stainless Steel Bearing;Bearing waterproof design; Prolong bearing lifetime.
5)Water Feeding Port
Water feeding for blade clearing;
Input water during high salinity vegetable cutting;
6)High Precision Blade Disc
High precision and complex process for the blade disc; Final belt port front design; More accurate for vegetable cutting.


Other related vegetable processing machinery:

Model
Power(Kw)
Capacity(Kg/h)
Weight(Kg)
Dimension(mm)
Cutting Size
HM-CHD20
0.55
120-350
55
715*455*580
Length/Slices/Shreds:1-30mm
HM-CHD40
0.75
200-500
75
590*660*1150
Slices/Shreds/Cubes: 2mm, 3mm or Customized
HM-CHD60
1.5
200-500
90
720*550*1100
Length/Slices/Shreds: 1-20mm
HM-CHD80
2.2
500-3000
155
1200*660*1000
Length/Slices/Shreds: 1-30mm
HM-CHD80II
3.75
500-3000
230
1320*680*1200
Length/Slices/Shreds: 1-30mm
Cubes:5mm,10mm,15mm or customized
HM-CHD200
3
200-3000
168
1230*680*1280
Length/Slices/Shreds:1-40mm


Warranty of machine 1 year:

During the 1 year warranty period, the main parts that are not damaged by humans can be repaired and replaced.
The technician is responsible for teaching you how to maintain the machine.


Service before sale
1, 24 hours online .Your inquiry will be quick reply by email .
 Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype )
2,Professional and patient introduction, detailed pictures and working video to show machine.

Service on sale:
1,Test every machine and inspect the machine seriously .

2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is okay .

3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
4. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will inform you the tracking number after delivery.

Service after sale:
1, Free insurance for goods
2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you

solve the problem, or dispatch worker to your factory.



Our company aim at supplying our customers with excellent quality products and outstanding service.


For more information, please feel free to contact us:

Contact: Jessie

Email: himoremachinery@outlook.com

Skype: himoremachinery@outlook.com

Mobile/Whatsapp:+86 17337168496

Website:







Product Tags: vegetable cutter , vegetable slicer , vegetable cutter machine , vegetable dicer machine , vegetable slicer machine , vegetable cutting machine , automatic vegetable cutter , vegetable cutting and shredding machine , digital vegetable cutter
