HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine

Zhengzhou Himore Machinery Equipment CO.,LTD.
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine thumbnail-1
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine thumbnail-2
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine thumbnail-3
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine thumbnail-4
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine photo-1
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine photo-2
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine photo-3
HM-CHD200 Industrial Vegetable Cutting Machine for Parsley Chopper Cutter Machine/Fruit Vegetable Processing Machine photo-4
US$ 3999 - 4199 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIMORE
Place of Origin:
China
Model Number:
HM-CHD200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or Shanghai port or shenzhen port China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HIMORE
Place of Origin China
Model Number HM-CHD200
Type Cutter
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty one year
Weight 168KG
Dimension(L*W*H) 1230*680*1280mm
Condition New
Voltage 380V or as require
Power(W) 3KW

Fruit vegetable processing machine/HM-CHD200 Industrial vegetable cutting machine for parsley chopper cutter machine

Introduction of Industrial vegetable cutting machine

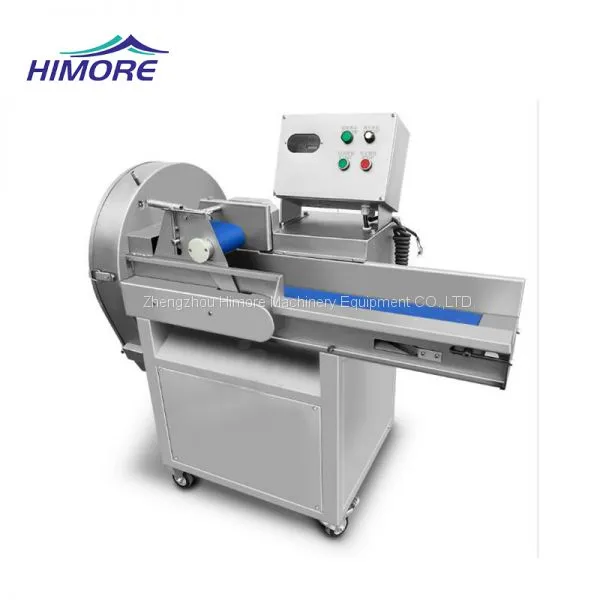

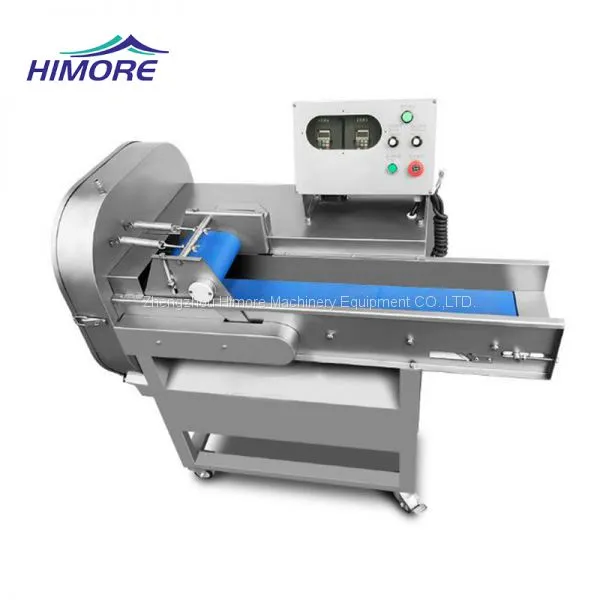

HM-CHD200 industrial vegetable cutting machine is used to cut hard and soft root leafy vegetables (cabbage, spinach, lettuce etc) into shreds and cut stem vegetables (celery, lemon, grass etc) into sections.
Suitable for cutting, slicing and dicing root and stem vegetable, also suitable for cutting leafy vegetables into different

size length.it is an ideal equipment for the fresh and dehydrated vegetables processing industry.


Technical data of industrial vegetable cutting machine:

Model
HM-CHD200
Power/Voltage
3Kw/380V/50HZ or Customized
Capacity
200-3000Kg/H
Weight
168Kg
Size
1230*680*1280MM
Cutting Size (Length)
1-30Mm(Adjustable)
Cutting Size (Slices)
1-20Mm(Adjustable)
Cutting Size (Shreds)
1-30Mm(Adjustable)
Function
Leafy And Stem Vegetable Cutting Length, Root Vegetable Slicing and Shredding by Change Blade Molding.



Feature of industrial vegetable cutting machine

1) The whole machine is made of SS304 food grade material, cutter head and disc made of aluminium magnesium alloy.

2) Variable frequency control the cutting and belt moving speed.

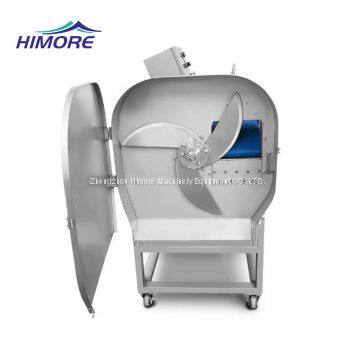

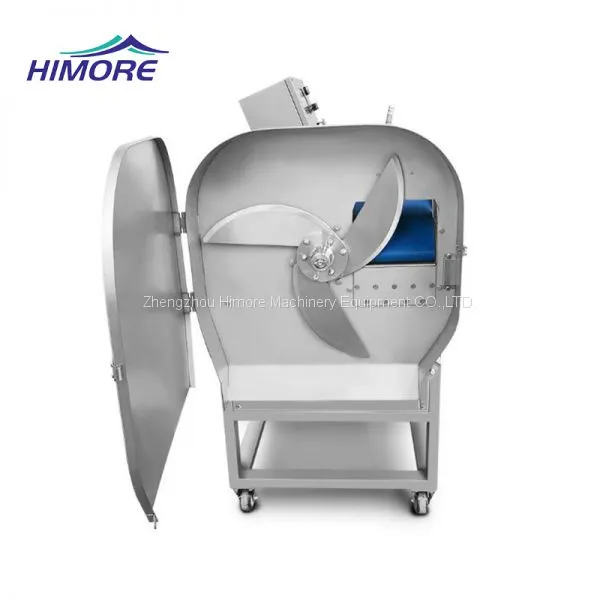

3) Adopt a rotating cutter disc to cut vegetable into sections or slices, good quality cut surface, fresh and no damage to fibrous of cut product, the cutting thickness and size uniform.
4) The machine is high in efficiency, equals to 10 workers, easy to operate, low in energy consumption, hygienic and safety


Main parts advantages as below:

1)Advanced Digital Control Box
Advanced digital adjustable system for easy operating;Dual Frequency converter for better speed regulation of both blade and belt;
Cutting size1-40mm can be finished by adjusting the blade and belt speed;
2)Input Cutting Belt Adjusting System
With height adjustor, more accurate and easier to adjust feeding port height.
Input belt height up to 10cm, increase capacity and efficiency;More convient to operate for the users.

3)Patent Juice Outlet Design

Patent design, no other suppliers with it; Juice and water during cutting flow out;
More clean and sanitation for cutted product;
Waterproof and protection of the machine.

4)Residue Cleaning Port Design

Patent designing;Humanized design;More easier and convenient to clean the belt.

5)SS304 Stainless Steel Bearing

SS304 Stainless steel bearing;Bearing waterproof design;
Prolong bearing lifetime.

6)High Precision Blade Disc

High precision and complex process for the blade disc;Final belt port front design;

More accurate for vegetable cutting.


Warranty of machine 1 year:

During the 1 year warranty period, the main parts that are not damaged by humans can be repaired and replaced.

The technician is responsible for teaching you how to maintain the machine.


Service before sale
1, 24 hours online .Your inquiry will be quick reply by email .
 Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype )
2,Professional and patient introduction, detailed pictures and working video to show machine.

Service on sale:
1,Test every machine and inspect the machine seriously .

2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is okay .

3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
4. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will inform you the tracking number after delivery.

Service after sale:
1, Free insurance for goods
2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you

solve the problem, or dispatch worker to your factory.
