Home > Consumer Electronics > Other Consumer Electronics > 15.6 Inch LCD Screen Module EDP 30 Pin 1920*1080

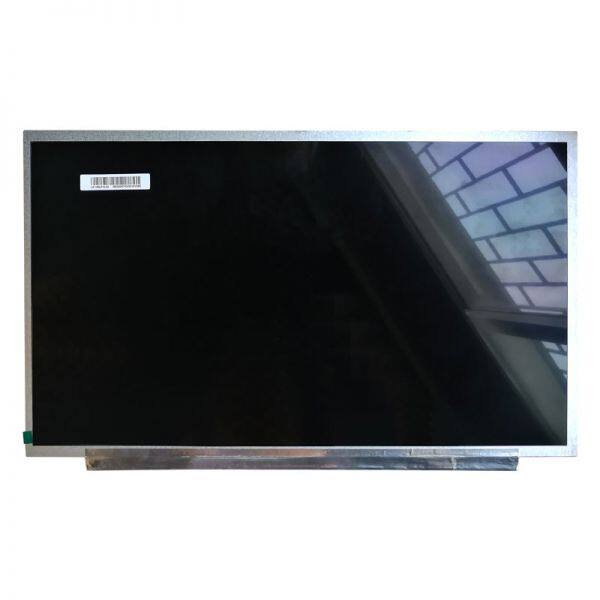

15.6 Inch LCD Screen Module EDP 30 Pin 1920*1080
US$ 54 - 54
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Viewshocker
Place of Origin:
China
Model Number:
M156X60-156-0601
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
15 days
Related Products
-
13.3 Inch LCD Screen Module EDP 30 Pin 1920*1080US$ 46 - 46MOQ: 5 Pieces -
12.5 Inch LCD Screen Module EDP 40 Pin 2560*1440 2KUS$ 34 - 34MOQ: 5 Pieces
-
12 Inch LCD Screen Module EDP 40 Pin 2160*1440 2KUS$ 51 - 51MOQ: 5 Pieces
-
11.6 Inch LCD Screen Module EDP 40 Pin 2560*1440 2KUS$ 33 - 33MOQ: 5 Pieces
-
10.4 Inch Intelligent LCD Module Proface Hmi PFXGP4501TADW Touch Screen PFXGP4501TADWNegotiableMOQ: 1
Brand Name
Viewshocker
Place of Origin
China
Model Number
M156X60-156-0601
Email: brucechansz@outlook.com
| Manufacturer | PANDA | Model | M156X60-156-0601 |
| Diagonal Size | 15.6 inch | Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD,141PPI | Configuration | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 mm (H×V) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Outline Dimension(mm) | 359.5 × 206.5 × 3 mm (H×V×D) | Brightness | 220 cd/m² (Typ.) |
| Best View | Full View | Response Time | 25 (Typ.)(Tr+Td)ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | FFS, Normally Black, Transmissive |
| Display Color | 262K | Light Source | WLED , 15K Hour, with LED driver |
| Frame Frequency | 60 Hz | Surface Treatment | Matte, Hard Coating (3H) |
| Appearance style | Thin Screen (PCBA Straight, Thickness≤3.2mm) | Screen Driving Voltage | 3.3V (Typ.) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G / lane), Terminal | Touch Panel | Customizable |
| Operating Temperature | 0 ~ 50℃ | Storage Temperature | -20℃ ~ 60℃ |
We have 18-year experience in manufacturing LCD Panel:
- Best after-sales services;
- Outstanding bespoke services;
- Moderate prices and high quality;
- With FCC, CE, and RoHS Approval;
- Aging test, PCB testing and otherstringent testing procedure;
- Equipment with advance machines, such as Wave soldering machine, SMT
machine, AOI, etc;
